Savaria Pegasus Inclined Platform Lift

Wheelchair lift for curved stairs

The Savaria Pegasus inclined platform lift provides wheelchair access over stairs that feature curves, changes of direction, intermediate landings or multiple levels. The platform folds up when not in use, and can be parked out the way. With a choice of platform size, including an ADA-compliant size, the Pegasus lift can make your public building accessible. Ideal when a vertical lift or elevator cannot be used, the Pegasus lift can be installed indoors and outside in moderate climates.

Note that the Savaria Pegasus is not available in Quebec. Contact our offices for a suitable replacement.

FIND A DEALER

Why choose the Savaria Pegasus wheelchair lift

On-demand wheelchair lift travels over stairs

Minimal construction required

No machine room is needed as the Pegasus wheelchair lift’s motor and drive controller can be installed at the top landing in a small cabinet. This saves space and reduces construction costs.

Fold-up platform in multiple sizes

Outdoor application

Custom rails

Safety features

An obstruction sensor system on the platform stops the lift if it encounters any objects during travel, while the overspeed governor ensures that the lift does not exceed the designated speed on descent. Limit switches stop the lift at each landing and also provide additional back-up to stop the lift if either limit switches fail. The non-skid platform, side safety flaps and safety arms protect the rider. A manual lower device (handwheel) is included for emergency use.

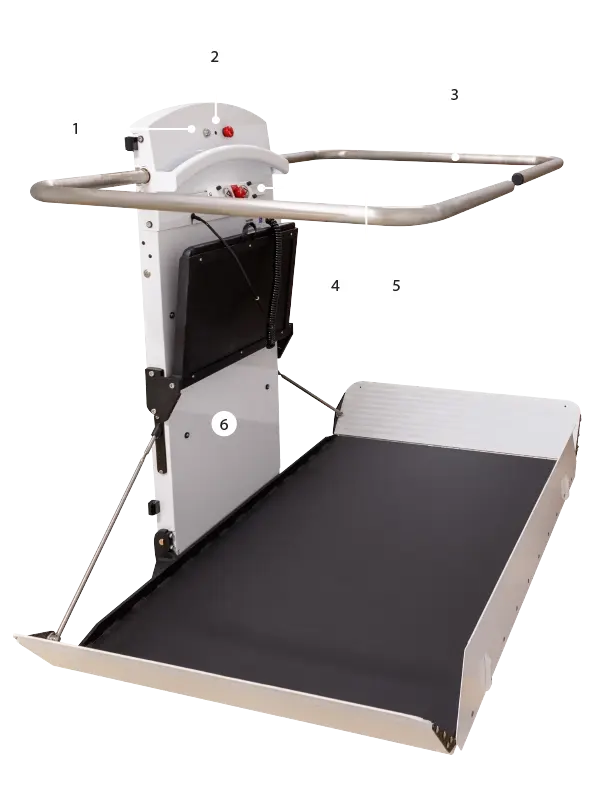

Pegasus Inclined Platform Lift

Standard features and finish

Keyed call stations and operating panel
Light-up diagnostic display on the lift that alerts of possible issues such as an obstruction
Handrail on the platform
Control panel on the lift, as well as a pendant controller with simple-to-use constant pressure buttons for up and down movement
Emergency stop button on the lift and the pendant
White (RAL 9003) as standard color with outdoor units requiring stainless steel rails

Pegasus Options

Commercial package

For public buildings, the commercial package includes motorized folding arms and platform, additional battery pack, audio visual alert and folding seat.

Parking

Add a parking feature at 90 or 180 degrees so the lift stops away from the stairs at the top or bottom landings.

Custom Color

The platform, carriage and rails can be ordered in a custom color, or you can order stainless steel rails alone.

Call Station

Call stations can be surface mounted, or optionally mounted on free-standing pedestals at the top and bottom landings.

Compact Drive System

A compact drive system option is available for limited space.

Additional Battery

For indoor units, a UPS back-up battery can be added to allow the lift to operate for an extended period of time. If the lift travels below an angle of 20 degrees, a stabilizer bar (horizontal rail), is required.

Have a single flight of straight stairs?

If your stairs have a single flight of straights stairs, consider the Delta inclined platform lift

LEARN MORE

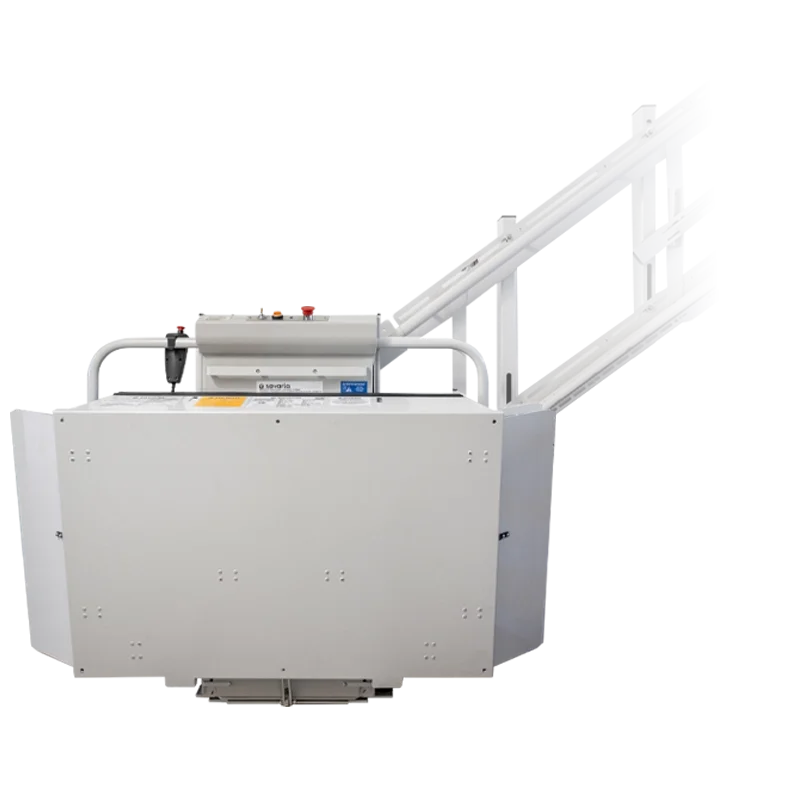

A Savaria Delta Incline Platform Lift stationed at the bottom landing.

Pegasus Specifications

Applications

Residential, commercial, indoor, outdoor (in moderate climates)

Motor

2 hp (0.5 kW)

Standard capacity

660 lb (300 kg)

Capacity of optional folding seat: 330 lb (150 kg)

Range of incline

20˚ to 45˚ (55 ˚ for residential use)

Maximum travel distance

164 ft (50 m)

Minimum travel distance

8" (20 cm)

Access

Straight through, or 90-degree access

Nominal speed

20-30 ft/min (0.10-0.15 m/s) varies with the stair angle, 10 ft/min (0.05 m/s) through curves

Platform sizes

48" x 31 ½" (1220 mm x 800 mm)
41 ⅜" x 31 ½" (1050 mm x 800 mm)

Custom platform sizes available

Warranty

A 36-month warranty against defective parts is included through your local dealer.*

*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

Tablet displaying a stairlift diagnostic interface held by a technician.

Photo measuring for a perfect fit

We use our proprietary PS4D measuring system to precisely measure the staircase and fabricate the rail for a tailored fit.

LEARN MORE

Pegasus Gallery

See Pegasus inclined platform lift installations

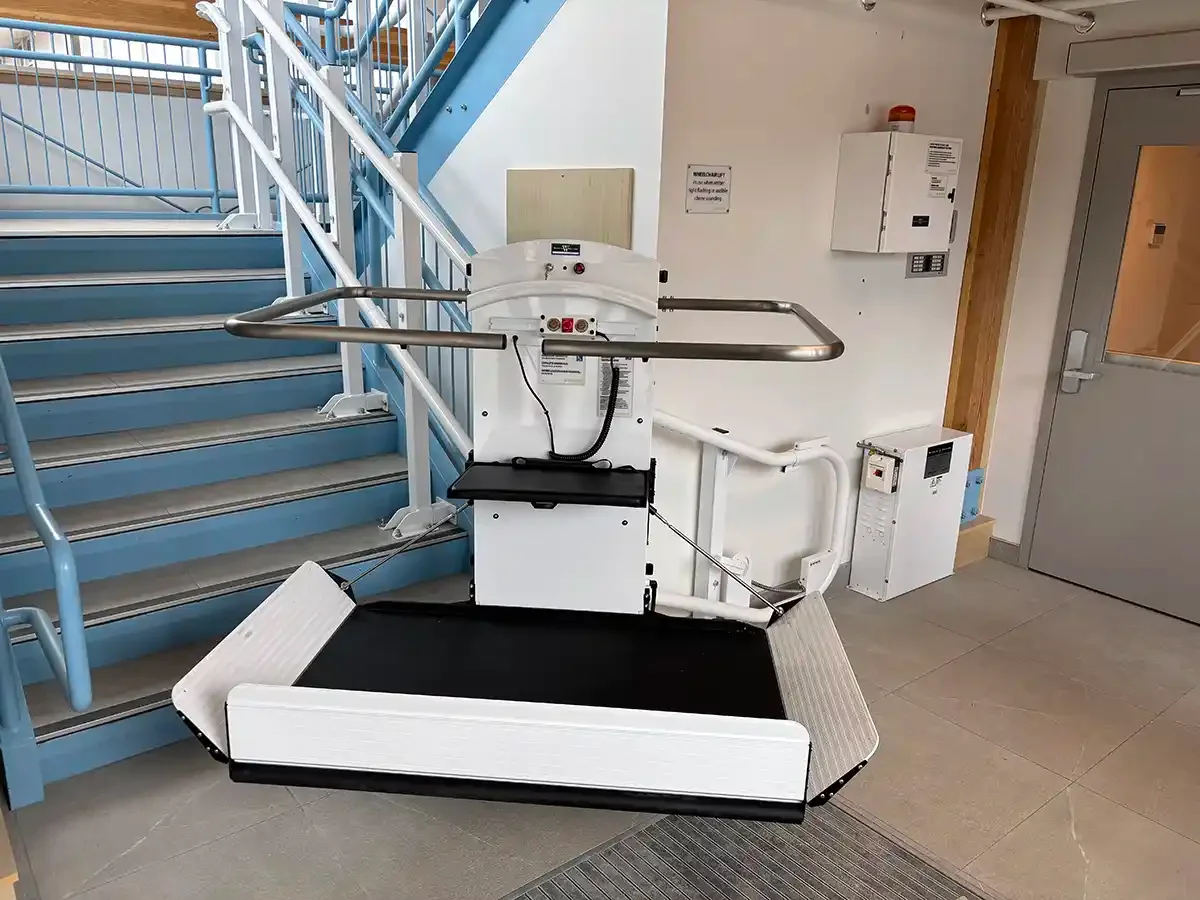

Indoor wheelchair platform lift positioned at the base of a commercial staircase with safety rails and folding platform

The Savaria Pegasus lift with the platform deployed, side ramps up and safety arms down as it travels.

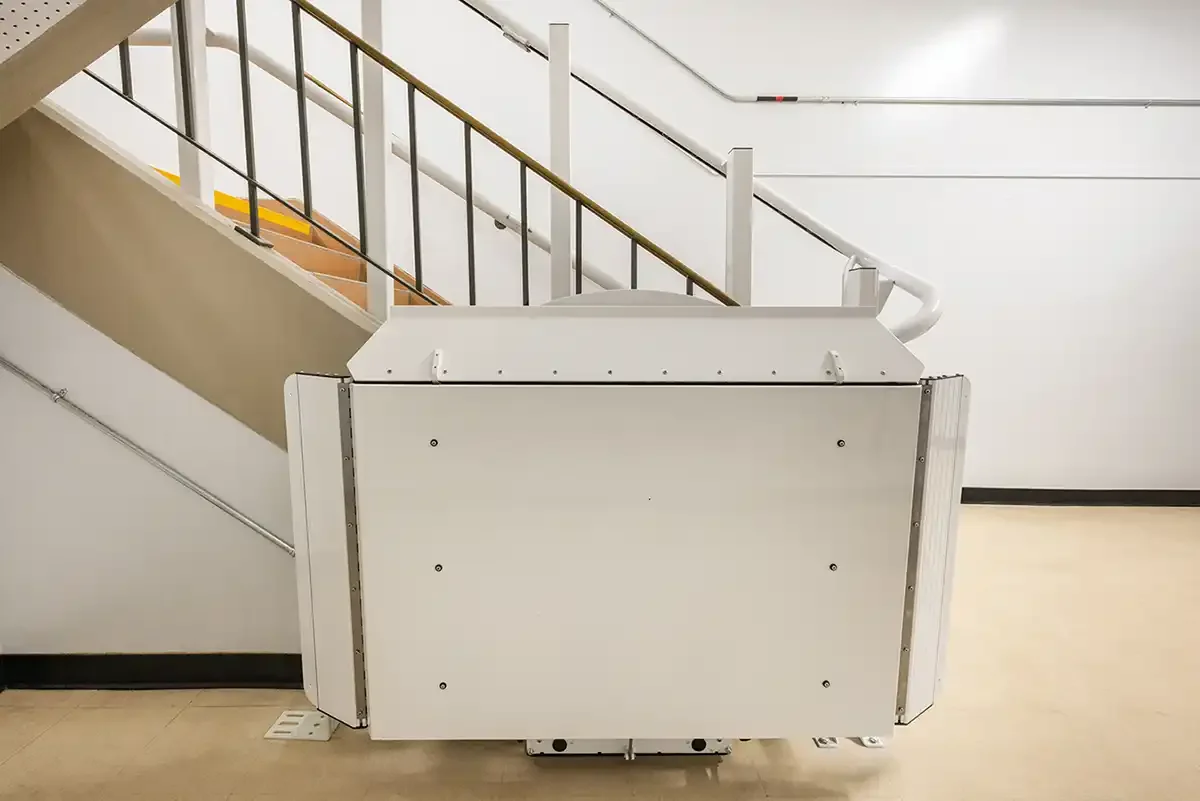

Folded inclined platform lift stationed at the base of a commercial staircase with metal handrails and light-colored flooring

The Savaria Pegasus folds up compactly around the corner at this high school. Installed by Savaria Alberta.

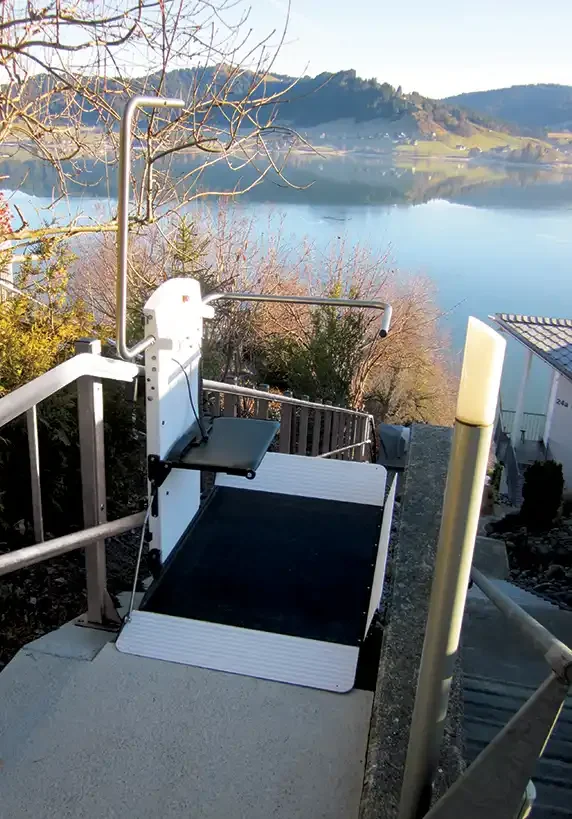

Outdoor wheelchair platform lift installed on a stair landing overlooking a lakeside landscape

A beautiful vista that can be enjoyed by all, thanks to the Savaria Pegasus installed outdoors.

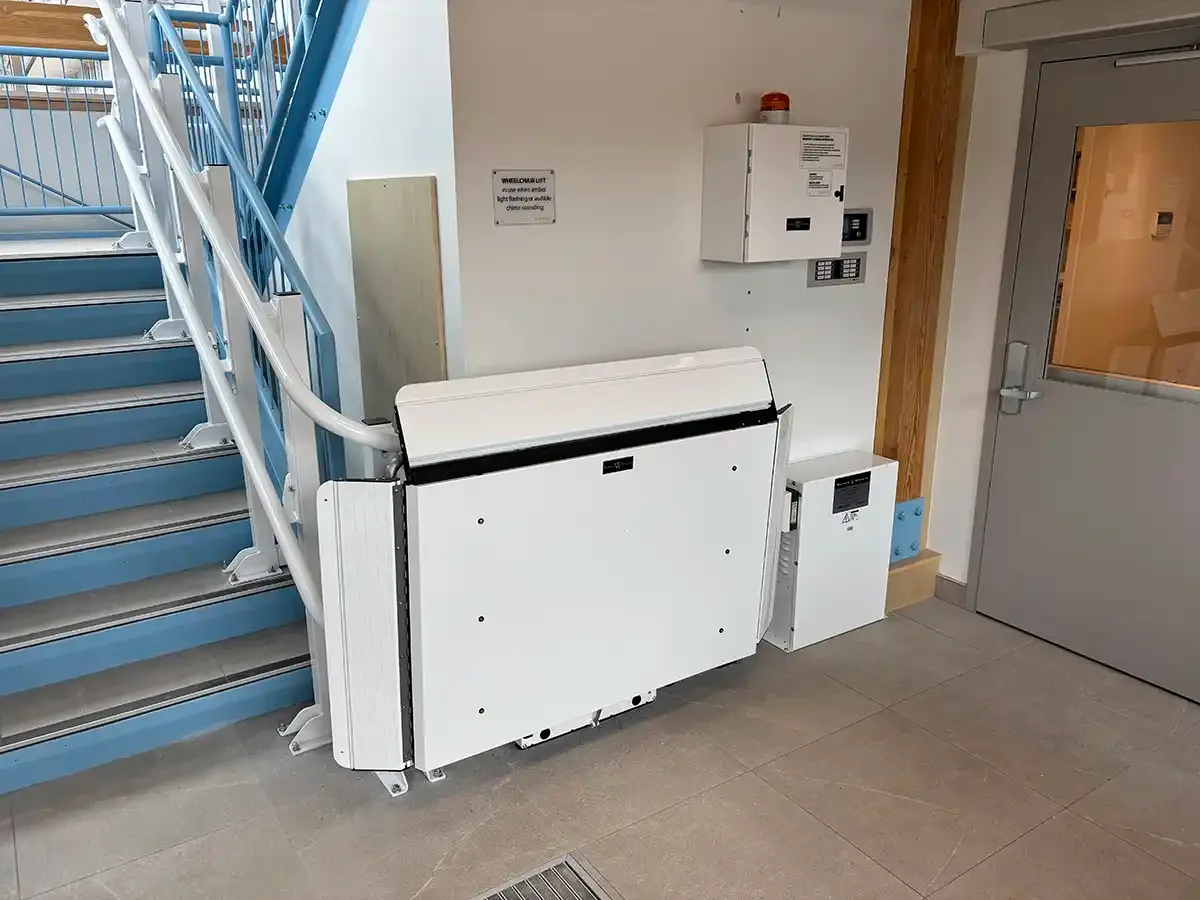

Folded inclined platform lift parked beside a commercial staircase with metal railings

Older schools are often not wheelchair accessible. This one in British Columbia solved that with a Savaria Pegasus curved inclined platform lift that tucks around the corner when not in use. Installed by Western Elevator.

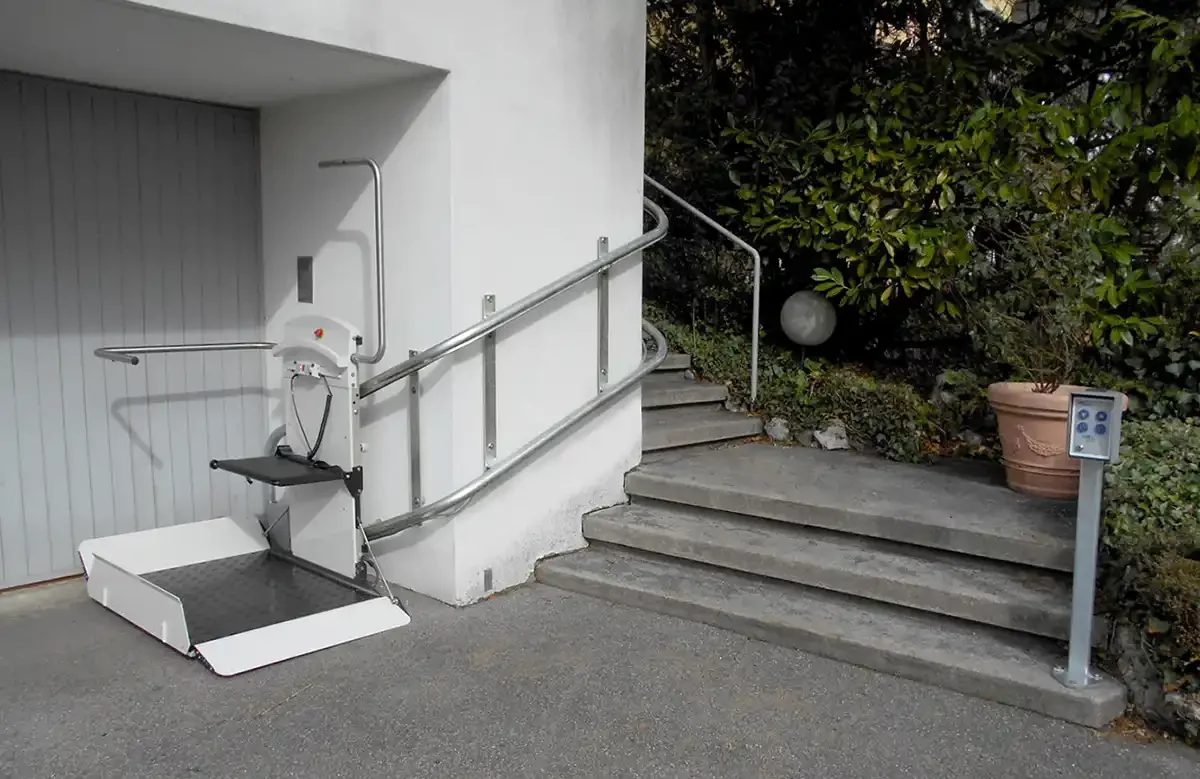

Outdoor inclined wheelchair platform lift installed beside a short exterior staircase at a residential entrance

For outdoor applications in moderate climates, the Savaria Pegasus features galvanized travel rail.

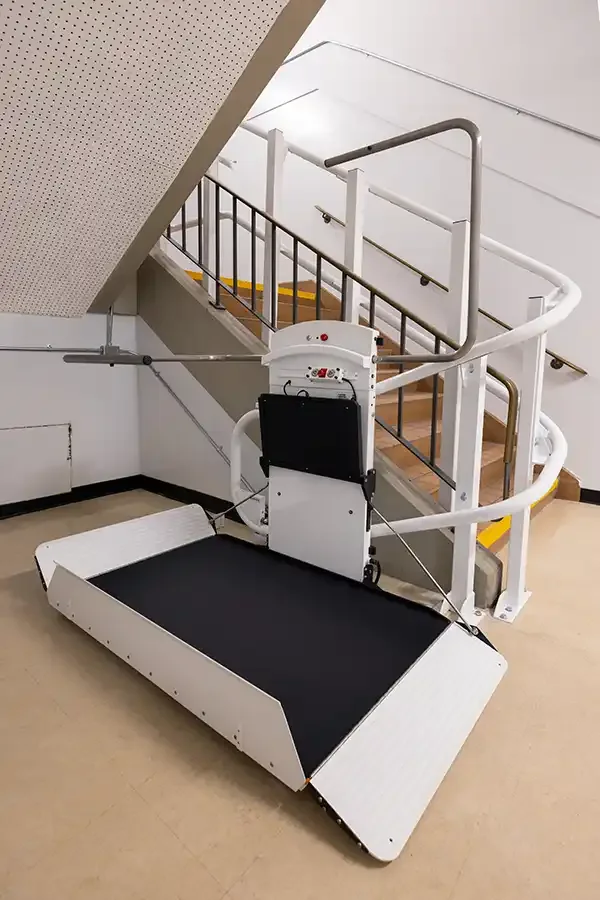

Inclined wheelchair platform lift deployed at the base of a curved commercial staircase with safety rails and folded ramp edges

At this Calgary school, the Savaria Pegasus lift parks in the space under the stairs to keep it out of the way when not in use.

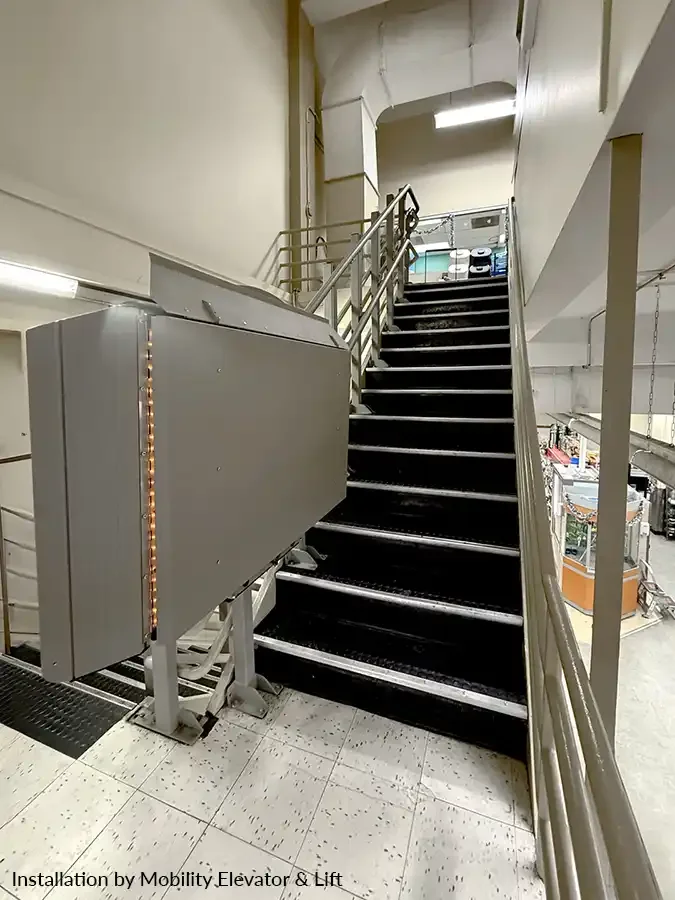

Inclined platform lift installed alongside a commercial staircase with safety rails and control panel

The Savaria Pegasus is securely mounted via stanchions on this staircase of a retail store in New York. Installed by Mobility Elevator & Lift.

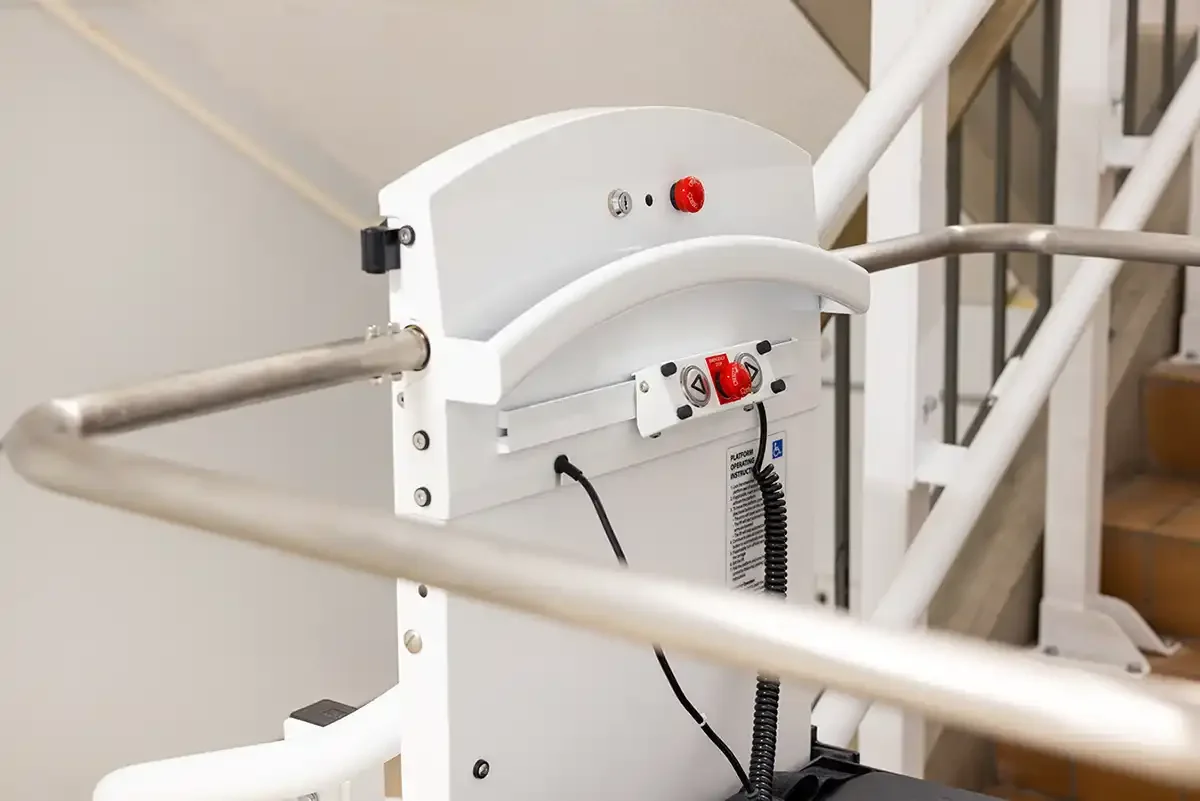

Close-up of inclined platform lift control head with safety arms, emergency stop button, and handrails mounted beside a commercial staircase

The on-board controls for the Savaria Pegasus lift are simple to use. Constant pressure buttons control up/down and there is an emergency stop button and keyed access.

Note that product galleries may show products, configurations, or product features that are not available in your region.

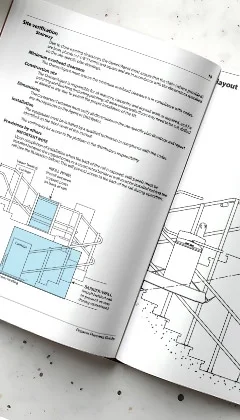

An open book showing technical documentation for a curved platform lift application.

Site preparation

Be sure to consult the planning guide for more information about site preparation and space requirements including the lower landing, turning and overhead clearance needed.
