Matot Vertical Reciprocating Conveyors (VRCs) by Savaria
The cost-effective material handling solution
For commercial and light industrial applications, our VRCs make short work of even the heaviest loads, up to 2500 lb. Designed for a service life of 25 years or more with minimal maintenance—even in harsh environments and under continuous operation.
Why choose a Matot VRC?
Rugged reliability, day in and day outMatot VRCs by Savaria help you transport heavy loads to mezzanines, basements, balconies, or between floors of a multi-story building—all while taking up minimal floor space. All levels of a plant, warehouse or commercial building can be utilized for increased production and storage. Our VRCs can also interface with other material handling systems to maximize productivity and efficiency in the facility.
Vertical Reciprocating Conveyors (VRCs) fall under ASME B20.1 Safety Standard for Conveyors, with fewer restrictions on size limits or capacity, particularly for industrial applications that do not pierce fire-rated floors.
High capacity, high versatility

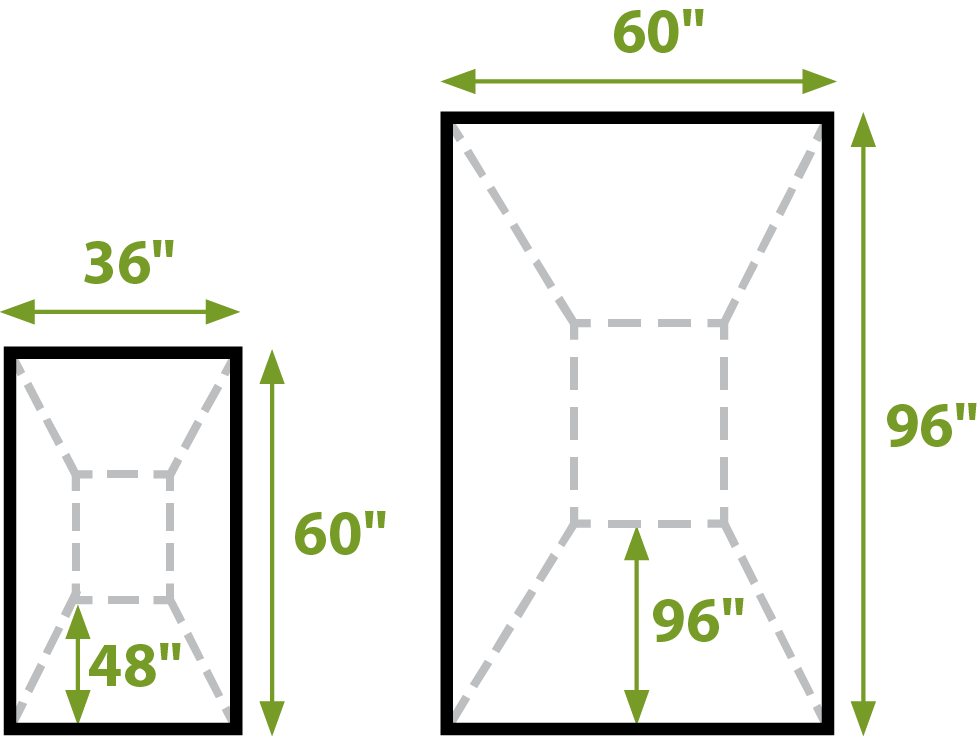

Offering capacities up 2500 lb (340-1134 kg), there are multiple car sizes available, up to 60" x 96" (1524mm x 2438 mm), in floor-loading or optional counter-loading models. Available in two opening configurations: single side, opposite sides/straight-through.
| Width | Depth | Height |
|---|---|---|
| 36" (914 mm) | 48" (1220 mm) | 60" (1524 mm) |
| 48" (1220 mm) | 48" (1220 mm) | 60" (1524 mm) |
| 48" (1220 mm) | 60" (1524 mm) | 72" (1829 mm) |
| 48" (1220 mm) | 72" (1829 mm) | 72" (1829 mm) |
| 48" (1220 mm) | 84" (2134 mm) | 84" (2134 mm) |
| 48" (1220 mm) | 48" (1220 mm) | 96" (2439 mm) |
| 60" (1524 mm) | 60" (1524 mm) | 60" (1524 mm) |
| 60" (1524 mm) | 72" (1829 mm) | 72" (1829 mm) |
| 60" (1524 mm) | 84" (2134 mm) | 84" (2134 mm) |
| 60" (1524 mm) | 96" (2439 mm) | 96" (2439 mm) |
Tailor your material lift to your project needs
Matot material lifts are flexible by design
Higher speeds and lifting distances
Available upon request
Double-drum drive
Requires less shaft space; economical
Multi-compartment
Designated clean and soiled units
Precision drive
Variable frequency and vector-based drive systems for incredibly smooth travel and ultra precise stopping and starting
Security Systems
Key lock, keypads, interfaces to external systems
Resources for vertical material handling
Specifying dumbwaiters, material lifts and vertical reciprocating conveyors (VRCs)? Check out our handy guide.
VRC helps luxury retailer
Learn out how Luisaviaroma NYC maximized their most expensive retail space thanks to a Matot VRC.
Matot Vertical Reciprocating Conveyor (VRC) Specifications
Applications
Commercial, indoor
Drive/motor
Winding drum; geared traction for higher speeds and longer travel distances
Load capacity
Up to 2500 lb (1134 kg)
Levels serviced
2 stops up to 9 stops
Maximum travel distance
From 18 inches (457 mm) minimum to maximum 270 feet (82.3 m)
Nominal speed
40 ft/min (0.25 m/s); optional up to 200 ft/min (1.02 m/s)
Doors
Manually operated vertical bi-parting slide up and swing type UL fire rated entrances
Power operated doors and gates
Can be motorized so they open and close automatically with the push of a button
Loading configurations
Single side, opposite sides; floor loading or counter loading
Pit depth requirement
16” (406 mm) for winding drum; 24” (610 mm) for traction machines
Warranty
12-month standard, with optional 5-year extended warranty.*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Matot Vertical Reciprocating Conveyor (VRC) Gallery
Explore images of our VRCs in a variety of applications

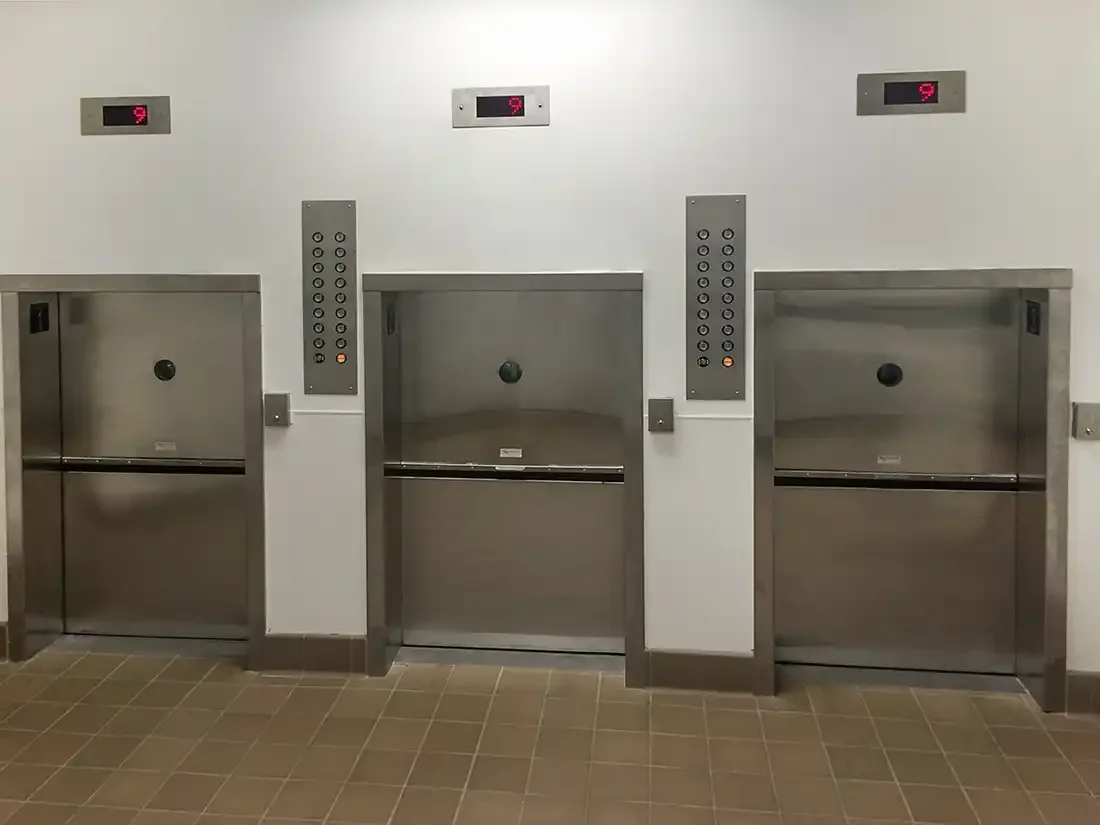

This facility boasts three Matot vertical reciprocating conveyors (VRCs) to keep materials moving. Our VRC units can travel up to 270 feet and make up to nine stops.

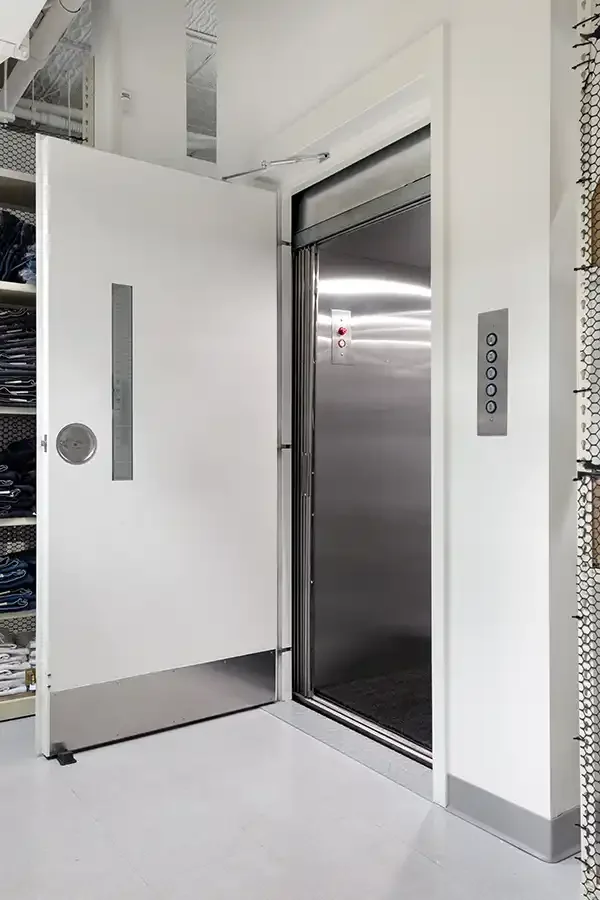

The Matot vertical reciprocating conveyor at Luisaviaroma NYC allows the luxury retailer to make the best use of expensive street-level space by keeping the stockroom below grade.

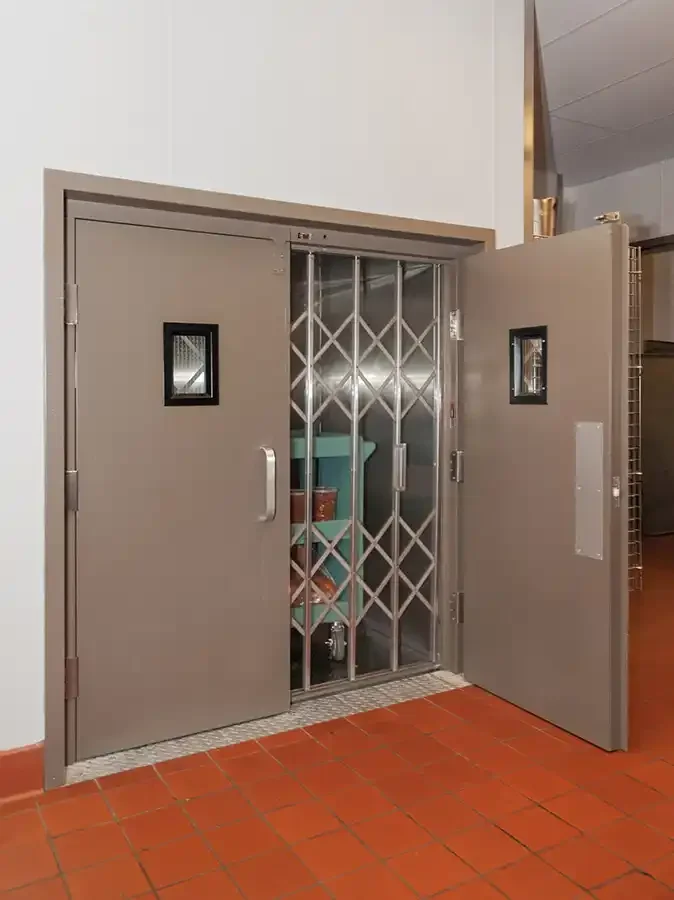

For commercial applications, a vertical reciprocating conveyor (VRC) is usually contained within a fire-rated shaft with fire-rated hoistway entrances.

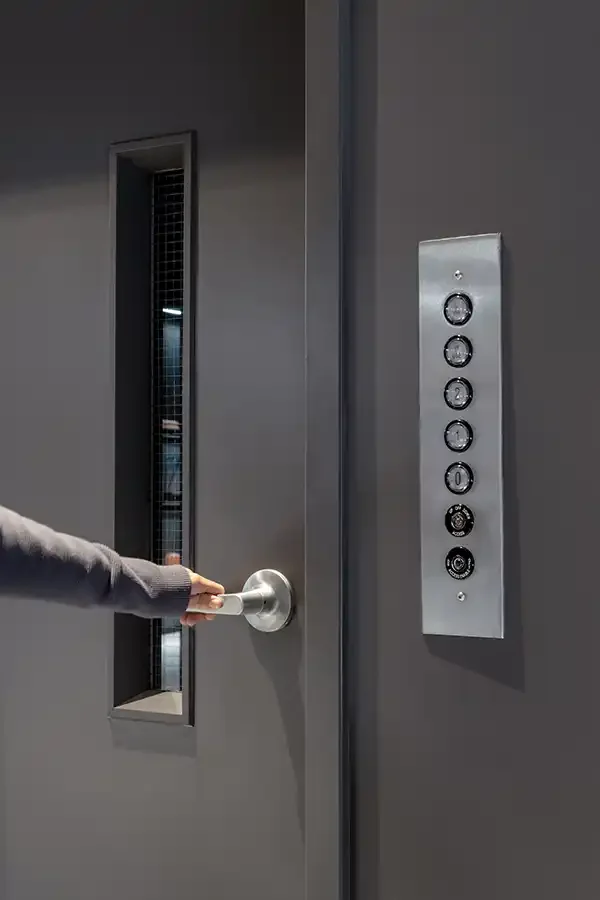

Placement within the building footprint is an important consideration when specifying a VRC, as they cannot be accessible to the general public under ASME B20.1 Safety Standard for Conveyors.

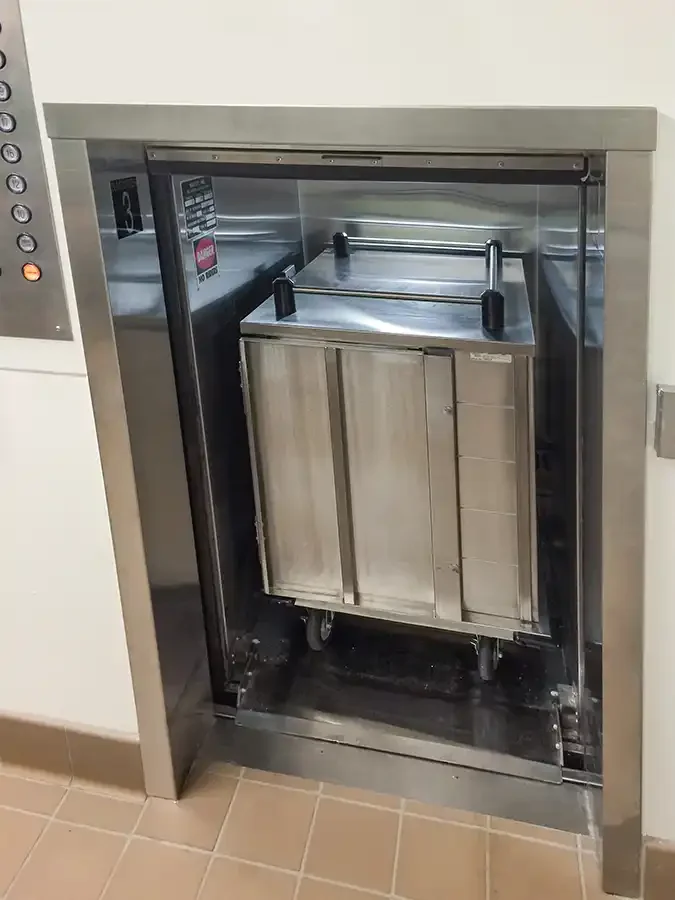

Vertical reciprocating conveyors (VRCs) make moving wheeled carts between multiple levels easy and effective.
VRCs take up minimal space while transporting heavy loads to mezzanines, basements, balconies, or between floors of a multi-story building.

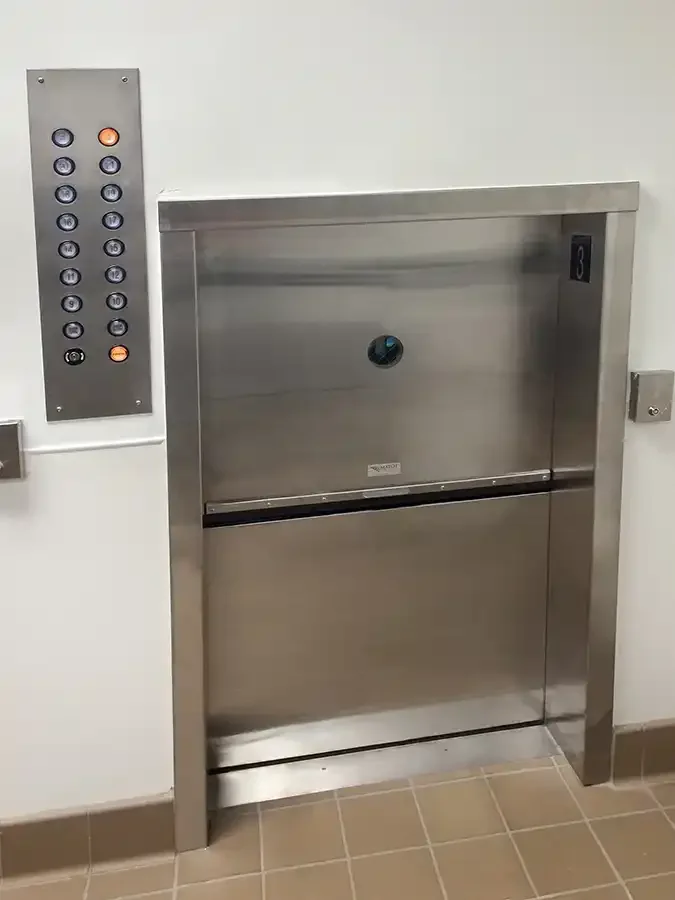

Matot vertical reciprocating conveyor units feature commercial-grade construction, including UL listed door locks and microprocessor control systems, architectural-grade stainless steel and elevator-type precision guide rails.
Our heavy-duty Matot vertical reciprocating conveyors (VRCs) provide up to 25 years of service with minimal maintenance, then can be modernized for more years of performance.
AIA-approved vertical material handling course
Book your virtual or in-person presentation of our AIA-approved continuing education course, Vertical Material Handling Systems & Methods (AIASAV40x).
