Matot Dumbwaiters by Savaria
Compact and economical material handling
The perfect vertical material handling solution for tight spaces and loads up to 750 lb, our Matot dumbwaiter offerings are a top choice for applications like retail, restaurant and hospitality, pharmacy and medical—almost any application where space is at a premium and versatility, efficiency and reliability are an absolute must.
Why choose a Matot dumbwaiter?
Flexibility to maximize use of spaceAlways robust and reliable and built to meet or exceed ASME 17.1 and CSA B-44, our dumbwaiters offer an average service life of 20-25 years with minimal maintenance, and can be modernized for many more years of performance. They are capable of multiple stops and come with either power-operated or manual car doors.
Our Matot dumbwaiters are engineered to meet or exceed ASME 17.1. and CSA B-44
Multiple car/platform sizes

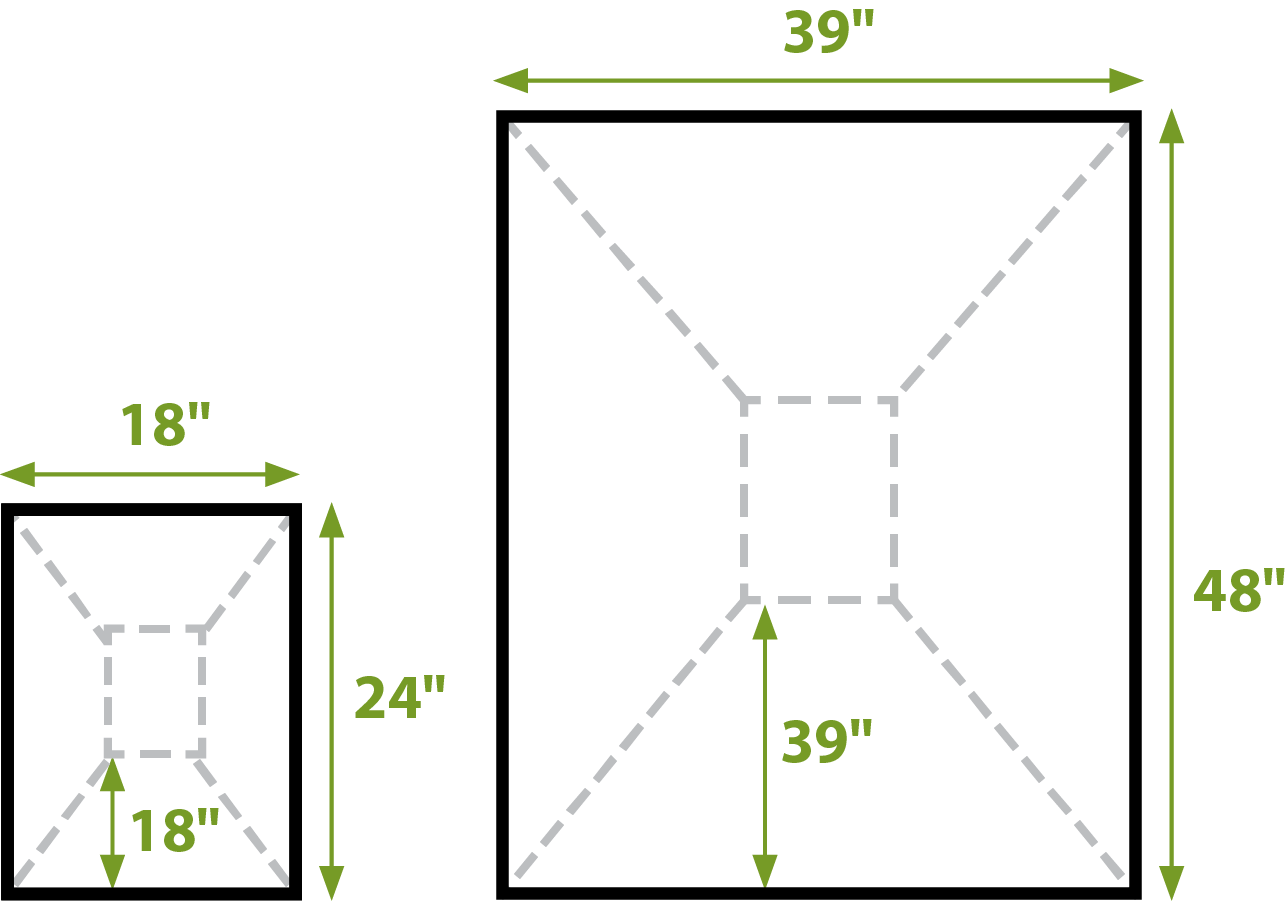

Multiple car sizes available, from 18" W x 18" D x 24" H, up to 39" W 39" D x 48" H to allow you to select the best fit for the available space on your project. Cars can be rectangular.
| Width | Depth | Height |
|---|---|---|
| 18" (457 mm)* | 18" (457 mm) | 24" (640 mm) |
| 20" (508 mm)* | 20" (508 mm) | 30" (762 mm) |
| 20" (508 mm)* | 24" (610 mm) | 30" (762 mm) |
| 24" (610 mm) | 24" (610 mm) | 36" (914 mm) |
| 24" (610 mm) | 30" (762 mm) | 36" (914 mm) |
| 28" (711 mm) | 24" (610 mm) | 36" (914 mm) |
| 30" (762 mm) | 30" (762 mm) | 36" (914 mm) |
| 30" (762 mm) | 42" (1067 mm) | 48" (1220 mm) |
| 30" (762 mm) | 48" (1220 mm) | 48" (1220 mm) |
| 36" (914 mm) | 36" (914 mm) | 36" (914 mm) |
| 38" (965 mm) | 38" (965 mm) | 48" (1220 mm) |
| 39" (991 mm) | 39" (991 mm) | 48" (1220 mm) |
*Available only on Type 1 and Type 2. Not available if travel distance exceeds 28 feet.
Note: If using a traction machine drive, smallest car size is 30" w x 36" d. Traction machines are only available on Type 1 & Type 2 cars. Some sizes are not available on traction dumbwaiters, consult your Savaria dealer about your specific requirements.
Customize it for your application
Check out the optional features available on Matot dumbwaiters
TAILOR TO SPECIALTY APPLICATIONS
Whether hazardous materials or surgical supplies
Higher speeds and travel distances
Speeds up to 200 ft/min (1.02 m/s) and lifting distances up to 300 ft (91.4 m)
Multi-compartment
Designated clean and soiled units
Self-supporting tower
Structure consisting of four corner angles rigidly braced to support unit and avoid imposing loads except at base (not available above 700 lb capacity)
Precision drive
Variable frequency and vector-based drive systems for incredibly smooth travel and ultra precise stopping and starting
Security Systems
Key locks, keypads, interfaces to external security systems
Specifying the right material handling solution
Visit our ultimate guide to vertical material handling to learn more about specifying dumbwaiters, material lifts and vertical reciprocating conveyors (VRCs).
Luisaviaroma NYC
Find out how this luxury retailer enhances the shopping experience with Savaria Orion and Matot VRC.
Matot Dumbwaiter Specifications
Applications
Commercial, indoor
Drive/motor
Winding drum; geared traction for higher speeds and longer travel distances
Load capacity
100-750 lb (45–340 kg)
Levels serviced
2 stops up to 9 stops
Maximum travel distance
From 18 inches (457 mm) minimum to no maximum
Travel speed
50 ft/min (0.25 m/s); optional up to 200 ft/min
Doors
Manually operated vertical bi-parting slide up and swing type UL fire rated entrances
Power operated doors and gates
Can be motorized so they open and close automatically with the push of a button
Loading configurations
Single side, opposite sides, adjacent side; floor loading or counter loading
Pit depth requirement
8” (203 mm) minimum with slide-up and scissor car gates and slide-up or swing doors. Calculate depth as ½ the car height + 6” (152 mm) when using bi-parting car gates and bi-parting hoistway doors. 24” (610 mm) minimum on traction machines.
Warranty
12-month standard, with optional 5-year extended warranty*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Matot Dumbwaiter Gallery
Explore images of our Matot dumbwaiters in a variety of applications

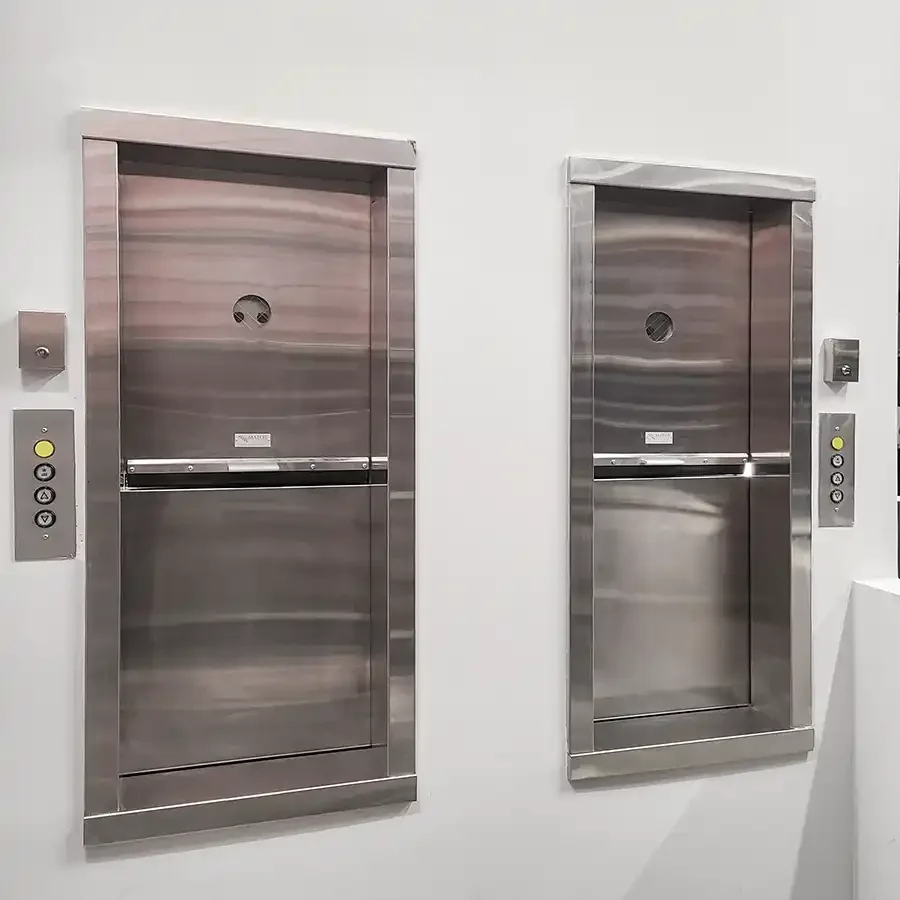

Some applications, like healthcare, can benefit from designated clean and soiled dumbwaiter units.

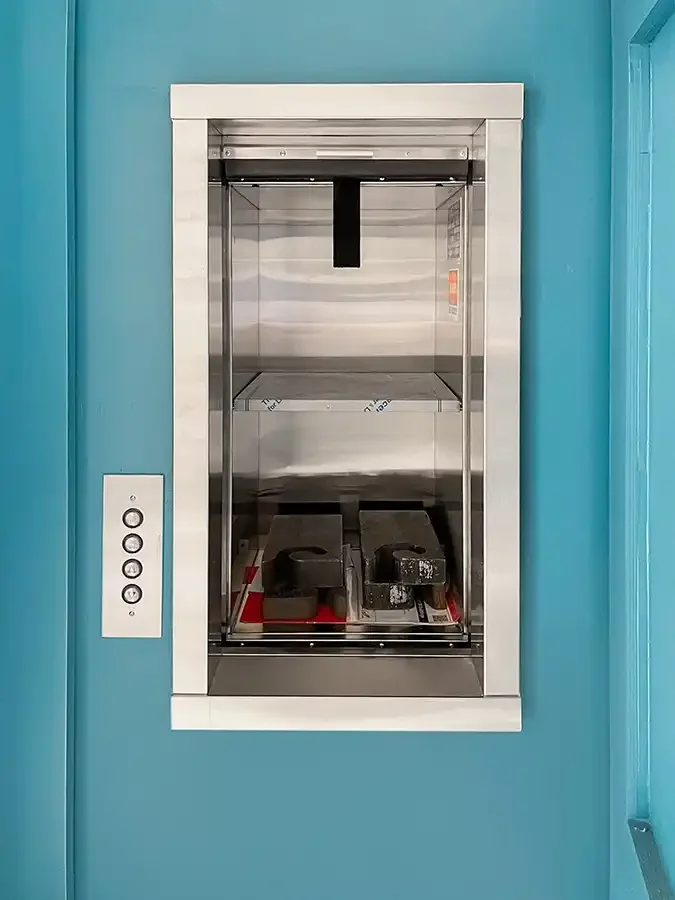

Our dumbwaiters can be configured for opposite-side opening configurations for easy loading and unloading, with optional shelving in the cab.

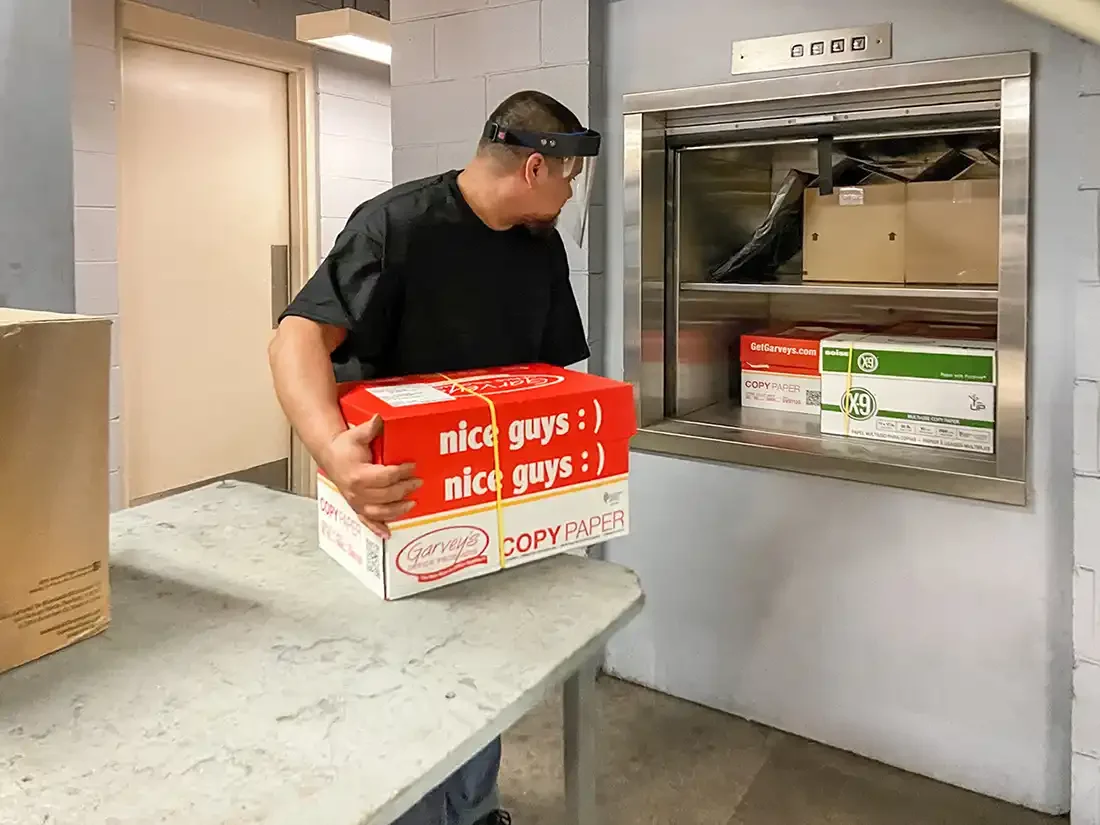

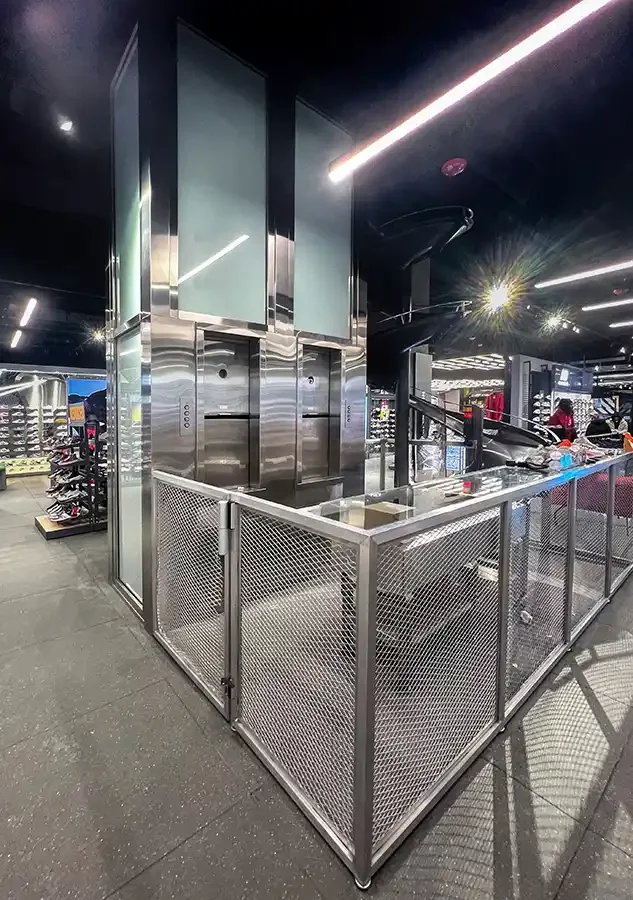

Side-by-side Matot dumbwaiters help staff at JD Sports Chicago move inventory quickly between below-grade stockrooms and the shop floor for an enhanced customer experience.

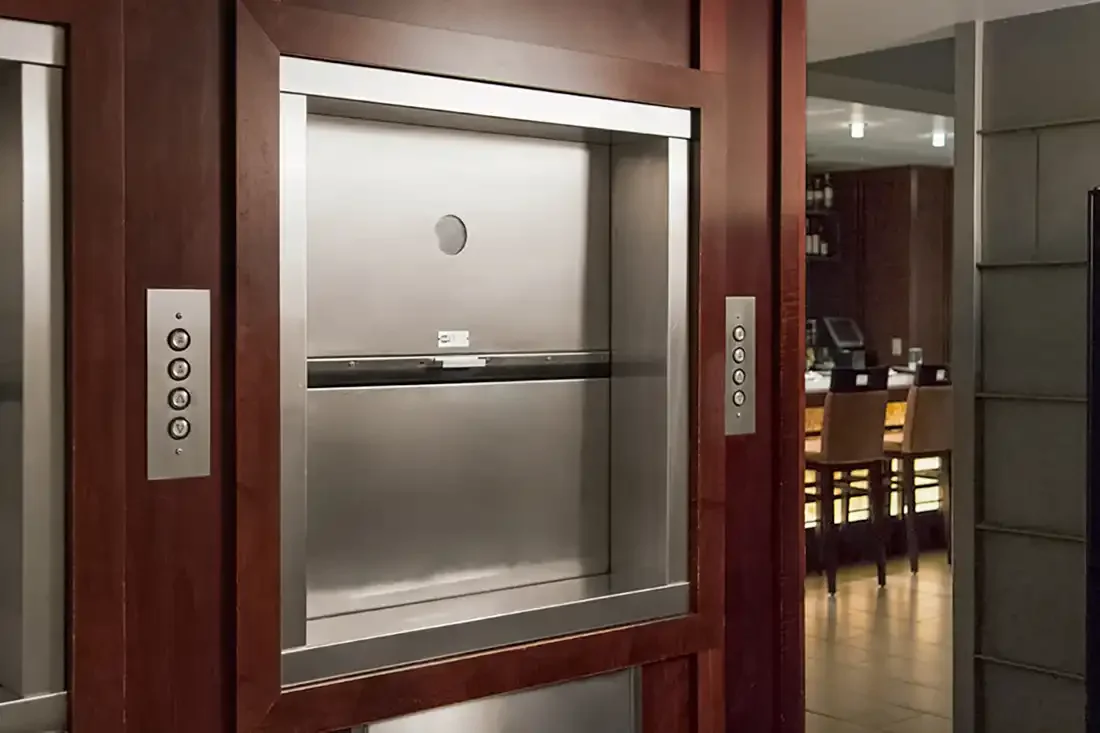

Our Matot dumbwaiters are capable of multiple stops and come with either power-operated or manual car doors.
Matot dumbwaiter offerings are a top choice for applications like retail, restaurant and hospitality, pharmacy and medical.
Always robust and reliable and built to meet or exceed ASME 17.1 and CSA B-44, our dumbwaiters offer an average service life of 20-25 years with minimal maintenance.

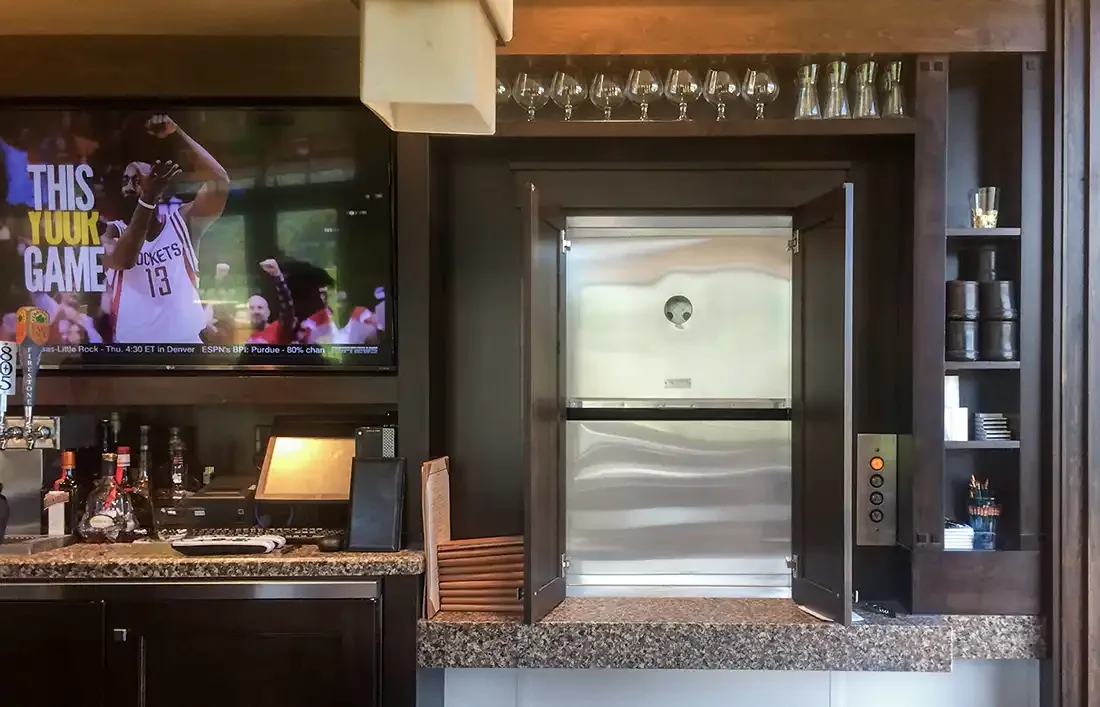

Small counter-loading dumbwaiters help you make the best use of expensive restaurant space while optimizing food service efficiency.

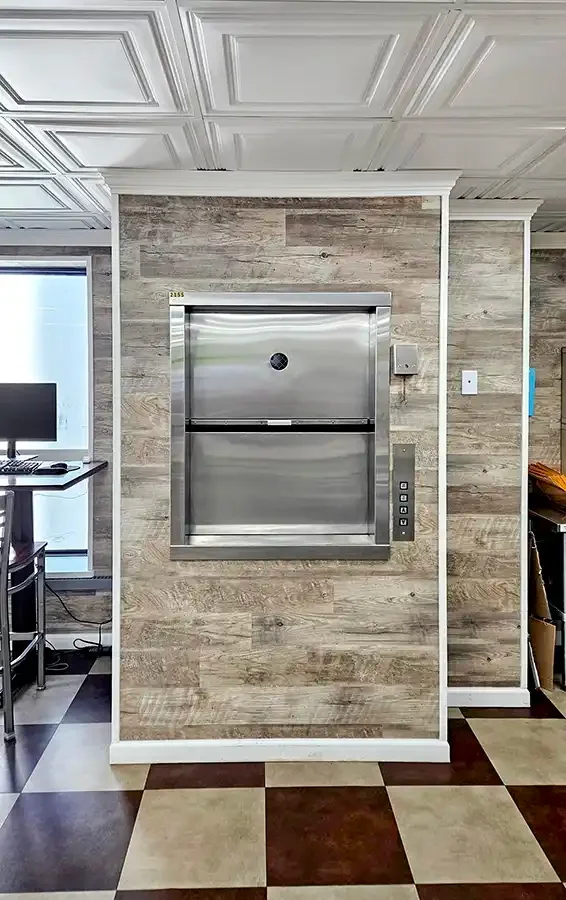

Counter-loading dumbwaiters with bi-parting doors are a space-saving and discrete way to move food service between dining areas and kitchen and prep locations on other floors.
