Savaria Vuelift Mini Home Elevator
A panoramic elevator that’s easy to fit
With only a 50” footprint needed, the Vuelift Mini is a popular solution for retrofits. Available in clear acrylic or glass with integrated matching hoistway, the Vuelift Mini offers a spacious feel, yet saves space to fit easily into many home styles and floorplans. It features a manual, curved cab gate with 30” opening, a curved landing door and a 500lb capacity. Installation usually takes 4-5 days and with no need to build a hoistway, site preparation is easier and less costly.

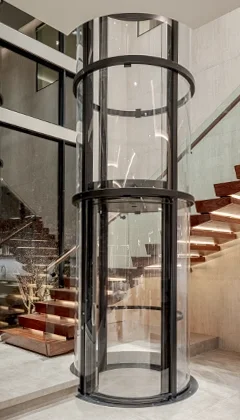

Vuelift Mini in Glass or Acrylic
Small footprint for flexibility
Going where other elevators cannot, the Vuelift Mini takes up a small 50" footprint. Place it inside a curved staircase, attached to a mezzanine or second floor balcony, or the middle of a room. The Vuelift Mini is an easier install for existing homes with only small renovations required in most cases.
Ease of construction
A shallow pit of only 3" is needed, along with only 96" of overhead space needed to reduce construction needs. Because the Vuelift Mini includes a factory-built hoistway, site preparation and the coordination of trades is greatly reduced. The controller is located in a utility area and the homeowner adds flooring of their choice, and finished flooring around the floor cut-outs. See the PlanningGuide for more details.

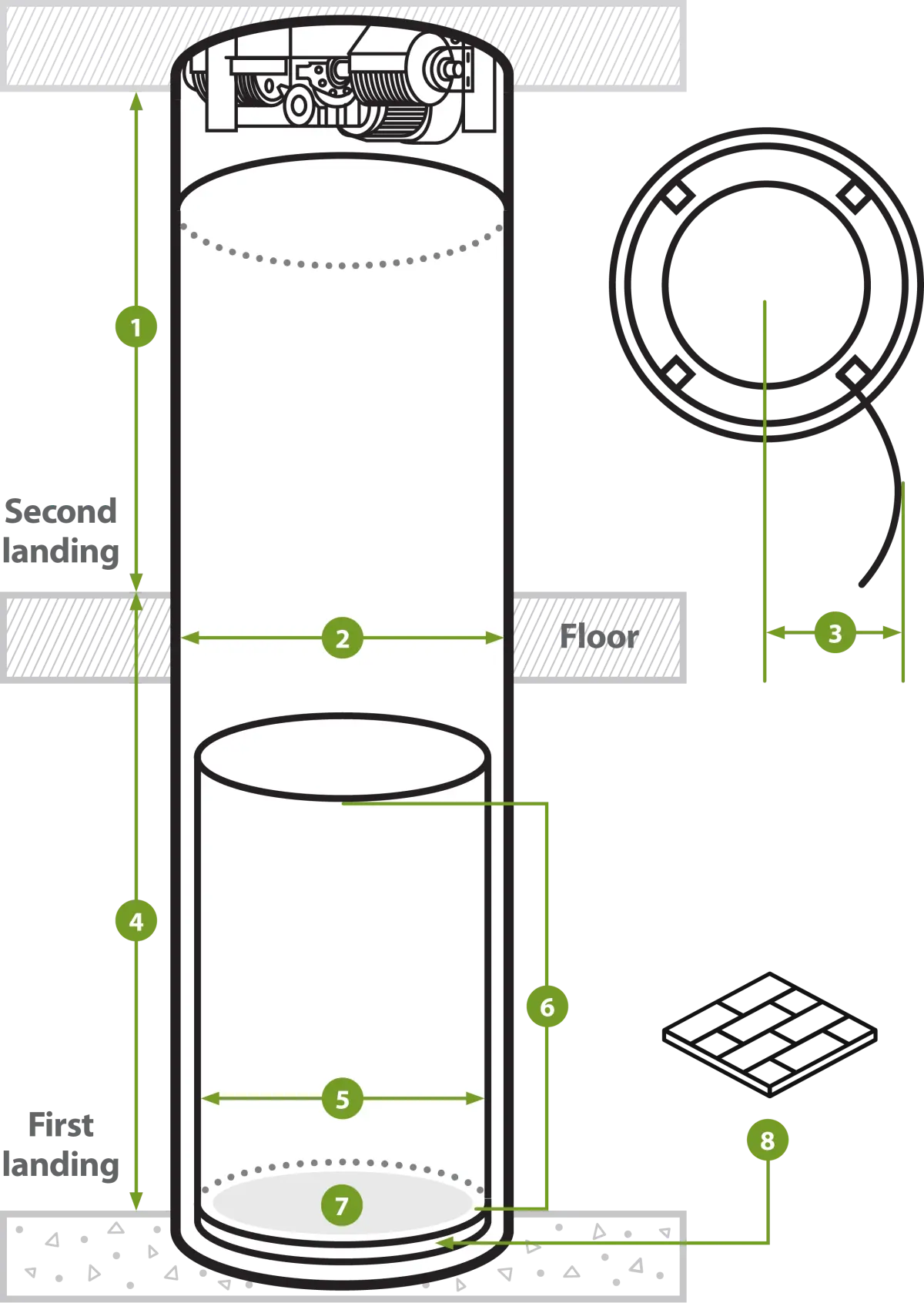

Savaria Vuelift Mini
Measurements- Overhead required: 96"
- Floor cut-out required: 46" + room for trim rings (approximately 3" additional)
- Clear gate opening: 30" (+/- ½”)
- Minimum distance between landings: 93"
- Interior cab size: 39 3/8" in diameter
- Cab height: 78"
- Cab floor area: 8.25 square feet
- Floor allowance: up to 1/2" for owner-supplied flooring
Vuelift Mini Specifications
Applications
Residential, indoors
Motor
2.2 HP
Standard capacity
500 lb
Maximum travel distance
50ft (15.2m), 55 ft (16.7m) with variance, up to 6 stops
Nominal speed
30 fpm
Pit depth
3"
Power / Lighting supply
230V/1PH/50–60Hz (30 amps) plus 120V/1PH/50–60Hz (15 amps) for lighting
One touch Alert
Optional. Learn more.
Savaria Link
Optional. Learn more.
Warranty coverage
All Vuelift models are covered by a 3-year warranty against parts defects.*
Entry/exit configurations available
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

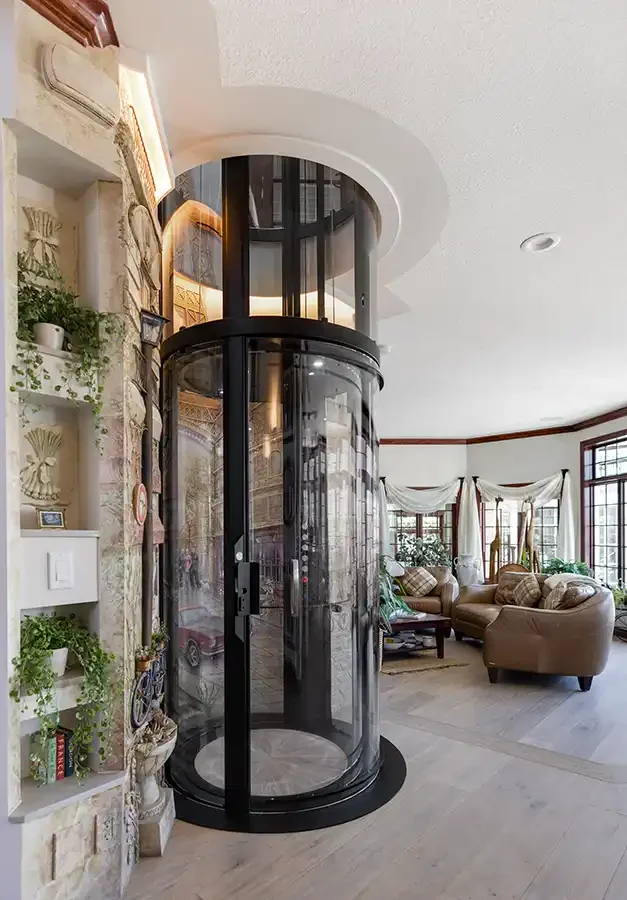

Vuelift Mini Gallery
See how others have installed the Vuelift Mini elevator

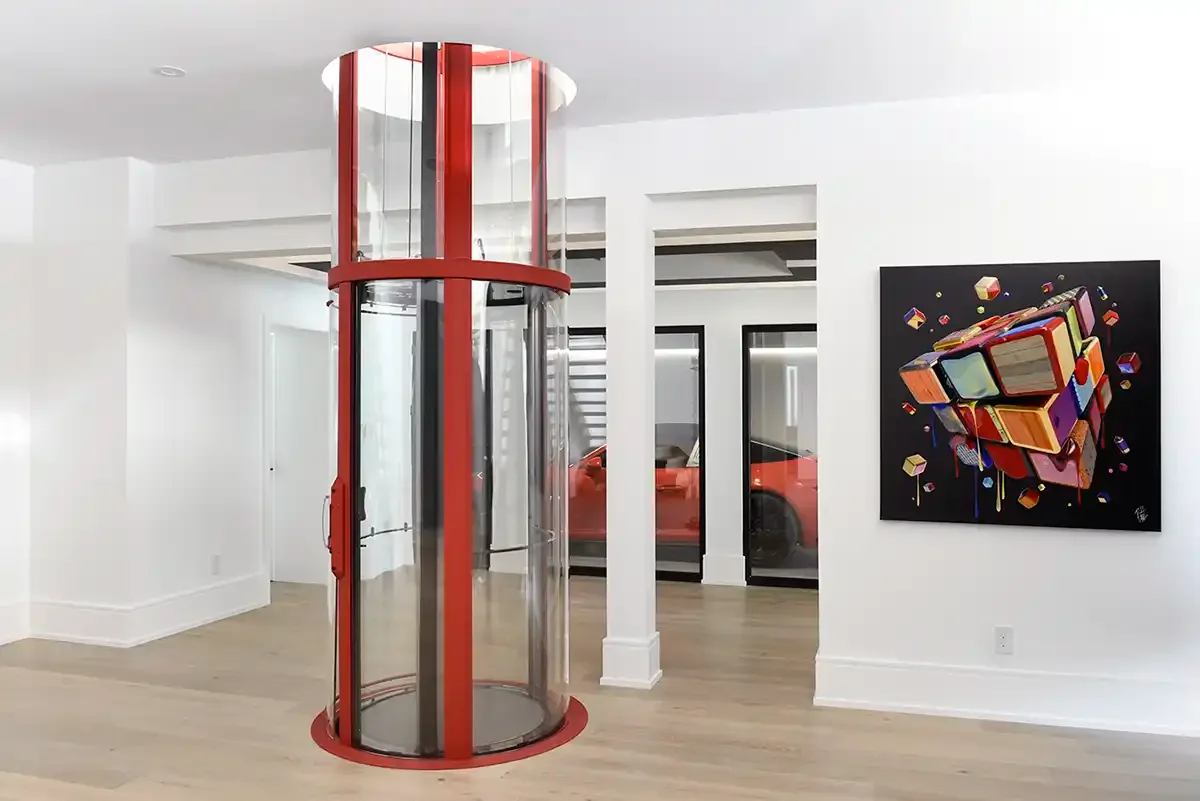

Because yes you can match your car colour to the Savaria Vuelift Mini. Fun and functional.

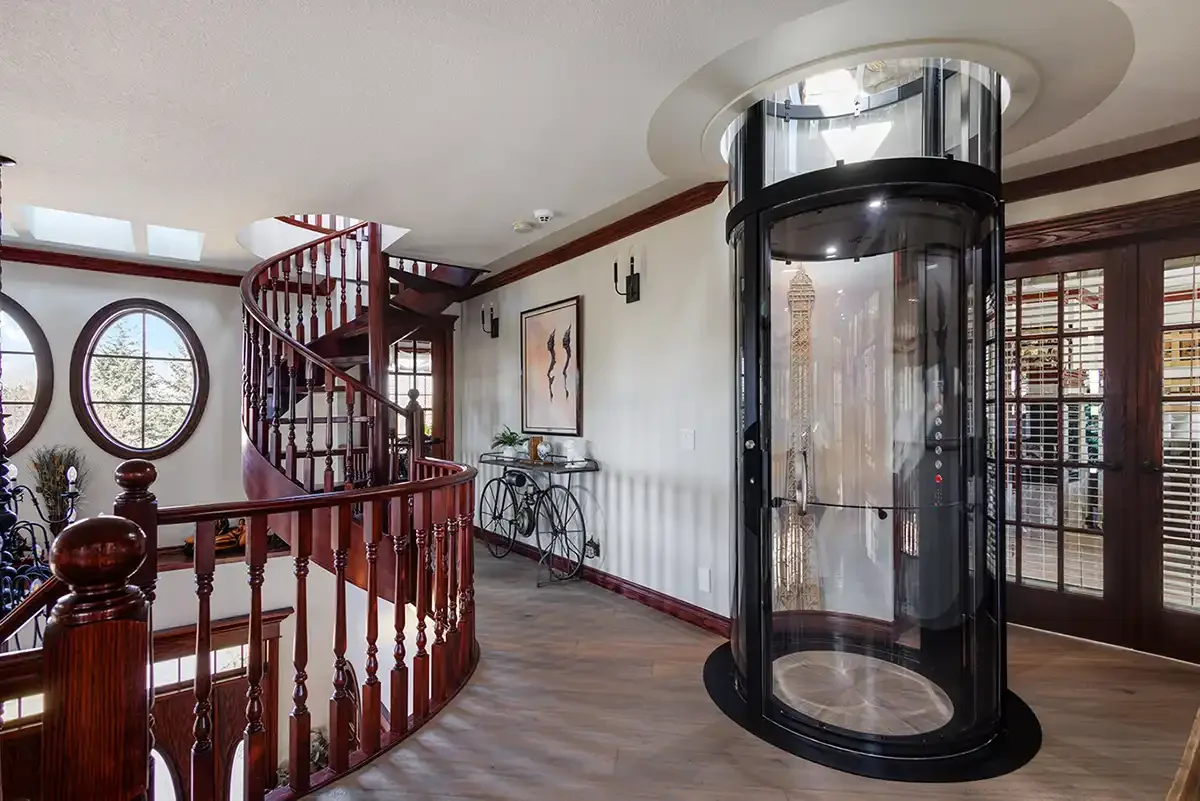

Majestic woodwork surrounds this Vuelift Mini that makes it easier for their owners to avoid the stairs as they age-in-place.

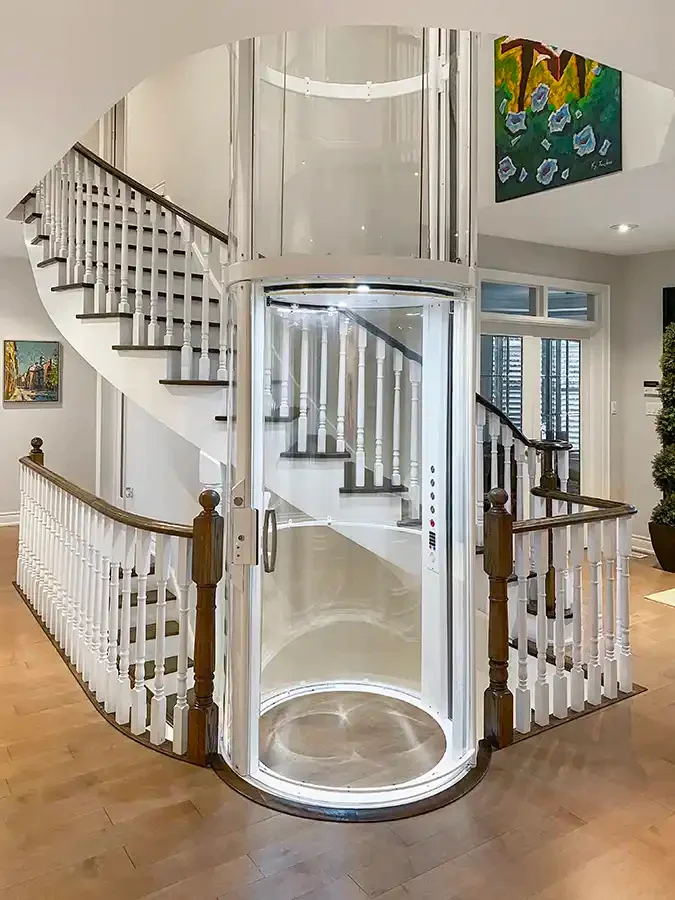

A great example of how the Vuelift Mini can fit into existing construction. A small carve out along the stair railing provides 3-level access in this Toronto-area home.

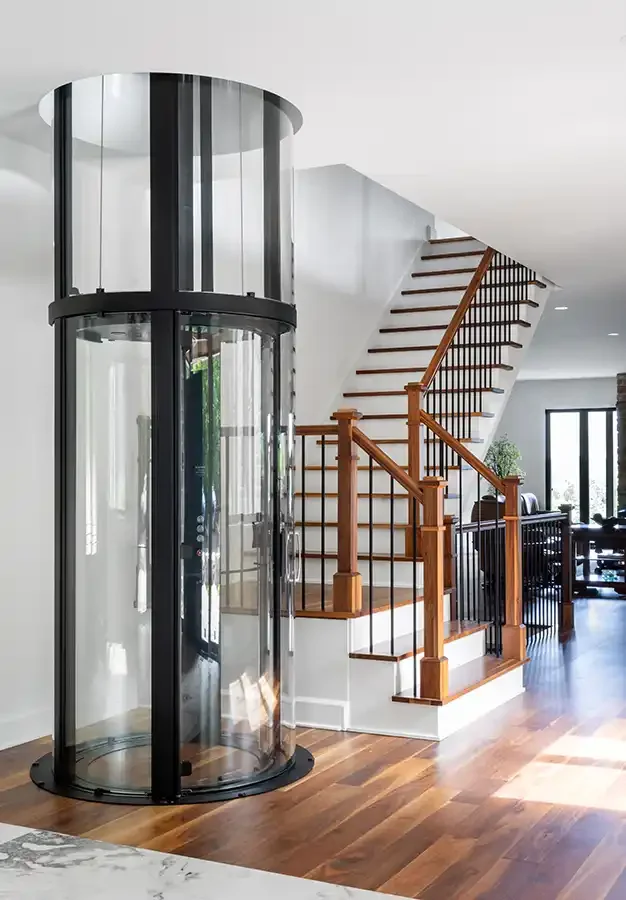

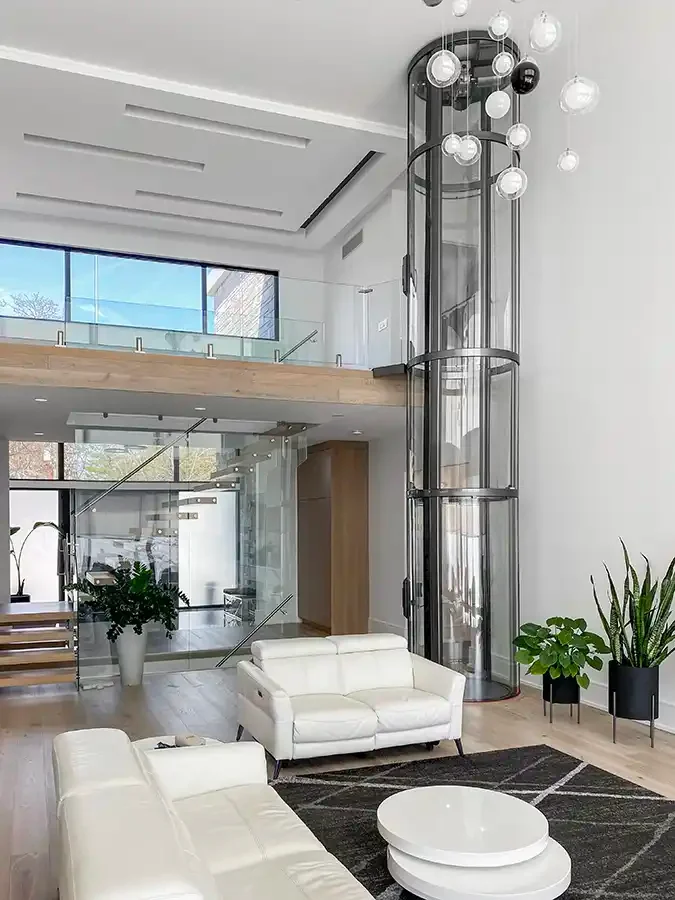

Floorplan flexibility is a hallmark of the Vuelift design. This Vuelift Mini is installed to reach the balcony area and is close to the main entrance, yet does not obstruct the view.
A retrofit Vuelift Mini in this family's forever home feels like it's always been there. Installed by Savaria Alberta.
This vacation home includes a Vuelift Mini and should allow the owners to continue to enjoy their property for many years to come.

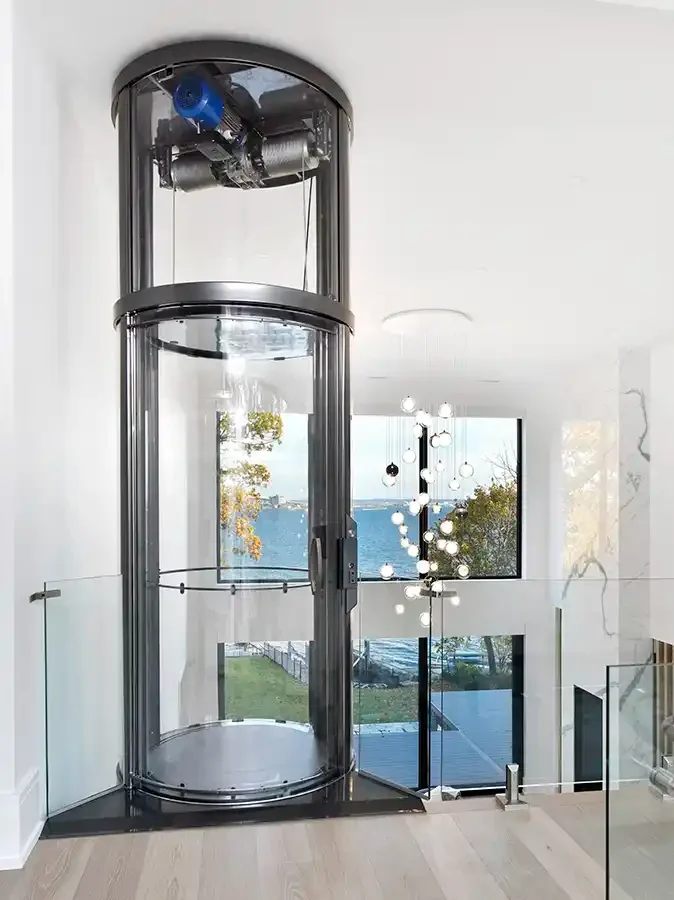

At the top landing, we see the winding drum drive that keeps the Vuelift both reliable and very quiet. And there's that great lake view!

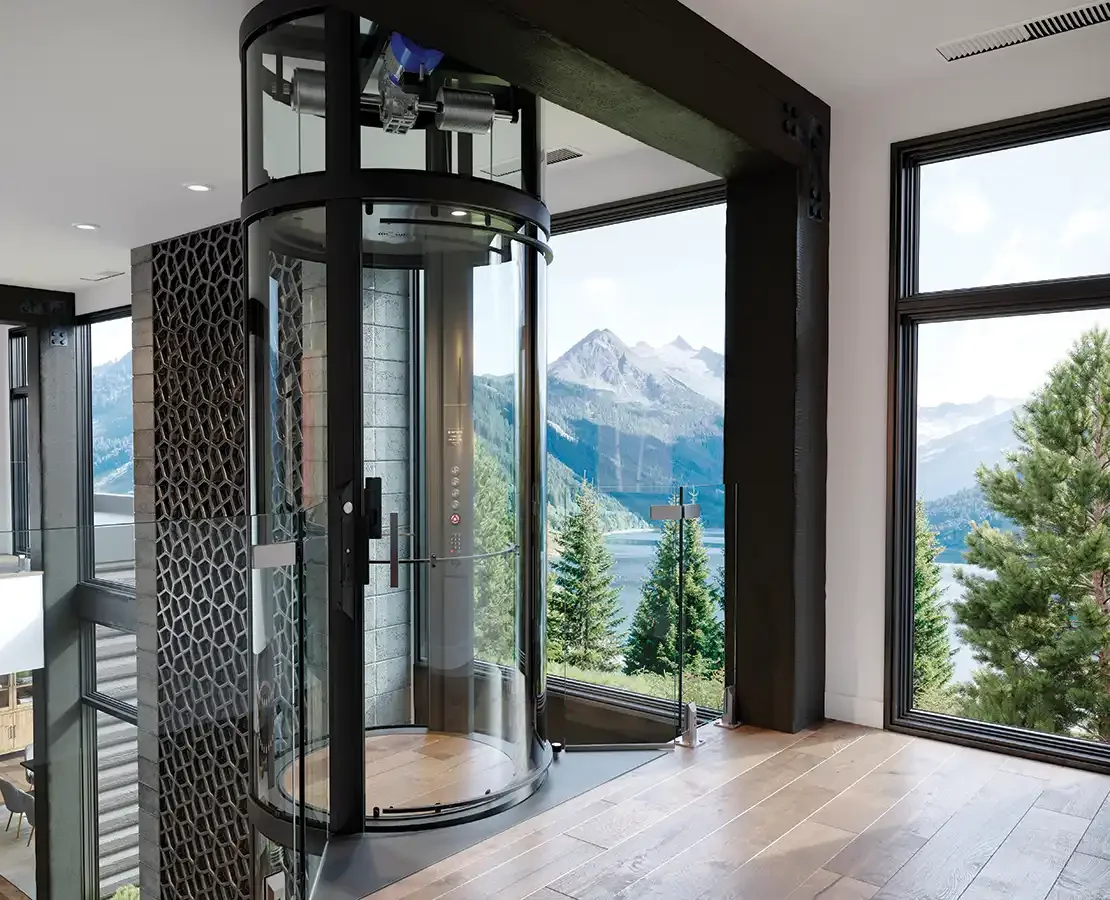

Got a great view? A Vuelift is the ideal solution to keep your view, but add convenience and luxury at the same time.
Get Inspired
See one of our projects using the Vuelift panoramic elevator.
Which Vuelift is right for you?
Download the Vuelift Model Comparison Chart.
