Delta Inclined Platform Lift

Wheelchair lift installs over straight staircases

The Delta inclined platform lift is suitable for home or commercial use, and provides wheelchair access over a single flight of straight stairs. The platform carries a wheelchair user, or optionally a seated passenger, with an access ramp and safety arms that raise and lower. The platform travels on two guide rails. When not in the use, the platform folds up to allow clearance on the stairs.

FIND A DEALER

Why choose the Delta wheelchair lift

Accessibility with little construction needed

Minimal construction required

The Delta wheelchair lift does not require a machine room. The motor and drive system are located on the carriage saving space and adding to simplicity, with no major construction needed. The travel rails are installed onto the stairs with support posts, or onto the adjacent wall, depending on size of platform, angle of the stairs and site conditions. The planning guide outlines the general preparation that is needed.

Compact fold-up design

Platform options

Outdoor option

Safety features

An obstruction sensor system on the platform stops the lift if it encounters any objects during travel, while the overspeed governor ensures that the lift does not exceed the designated speed on descent. Limit switches stop the lift at each landing and also provide additional back-up to stop the lift if either limit switches fail. The non-skid platform, side safety flaps and safety arms protect the rider. A manual lower device (handwheel) is included for emergency use.

Delta Inclined Platform Lift

Standard features and finish

Control panel on the lift and pendant controller with simple-to-use constant pressure buttons for up and down movement
Light-up diagnostic display on the lift that alerts of possible issues such as an obstruction
Keyed call stations and operating panel
Emergency stop button on the lift and the pendant
Safety arms
Light gray (RAL 7035) as standard color
Battery powered with built-in charging at the top and bottom landings. The lift provides several trips during a power failure

Delta Options

Commercial package

For public buildings, the commercial package includes motorized folding arms and platform, additional battery pack, audio visual alert, folding seat and ADA-compliant platform size.

Finish

The platform, carriage and rails can be ordered with stainless steel finish/cladding.

Folding platform

For home use, the standard unit features a manual folding platform. You can add a motorized folding platform for ease of use, as well as a folding seat.

Have a curved or turning staircase?

If your stairs are curved, have a change of direction or intermediate landing, consider the Pegasus curved inclined lift

LEARN MORE

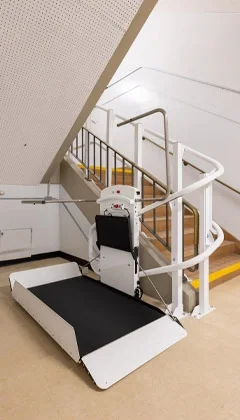

A Pegasus Curved Inclined Platform Lift stationed at the bottom landing.

Delta Specifications

Applications

Residential, commercial, indoor, outdoor (in moderate climates)

Motor

0.66 hp (0.5 kW), 24 VDC charges on 120v AC

Standard capacity

550 lb (250 kg), optionally 660 lb* (300 kg)
Capacity of optional folding seat: 330 lb (150 kg)

Range of incline

20˚ to 45˚

Maximum travel distance

80 ft (24 m)

Minimum travel distance

8" (20 cm)

Access

Straight through, or 90-degree access

Nominal speed

15 ft-20 ft/min (0.075 -1 m/s), varies with the stair angle

Savaria Link

Optional. Learn more.

Platform sizes

W26 ½" x L36" (673 mm x 914 mm)
W30 ½" x L49 ¼" (775 mm x 1250 mm)
W28 3/8" x L35 ½" (720 mm x 900 mm)
W28 ½" x L44" (724 mm x 1118 mm)
Be sure to read about the space needed for the lift here.

Warranty

A 36-month warranty against defective parts is included through your local dealer.**

*USA only
**Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

Delta Gallery

See Delta inclined platform lift installations

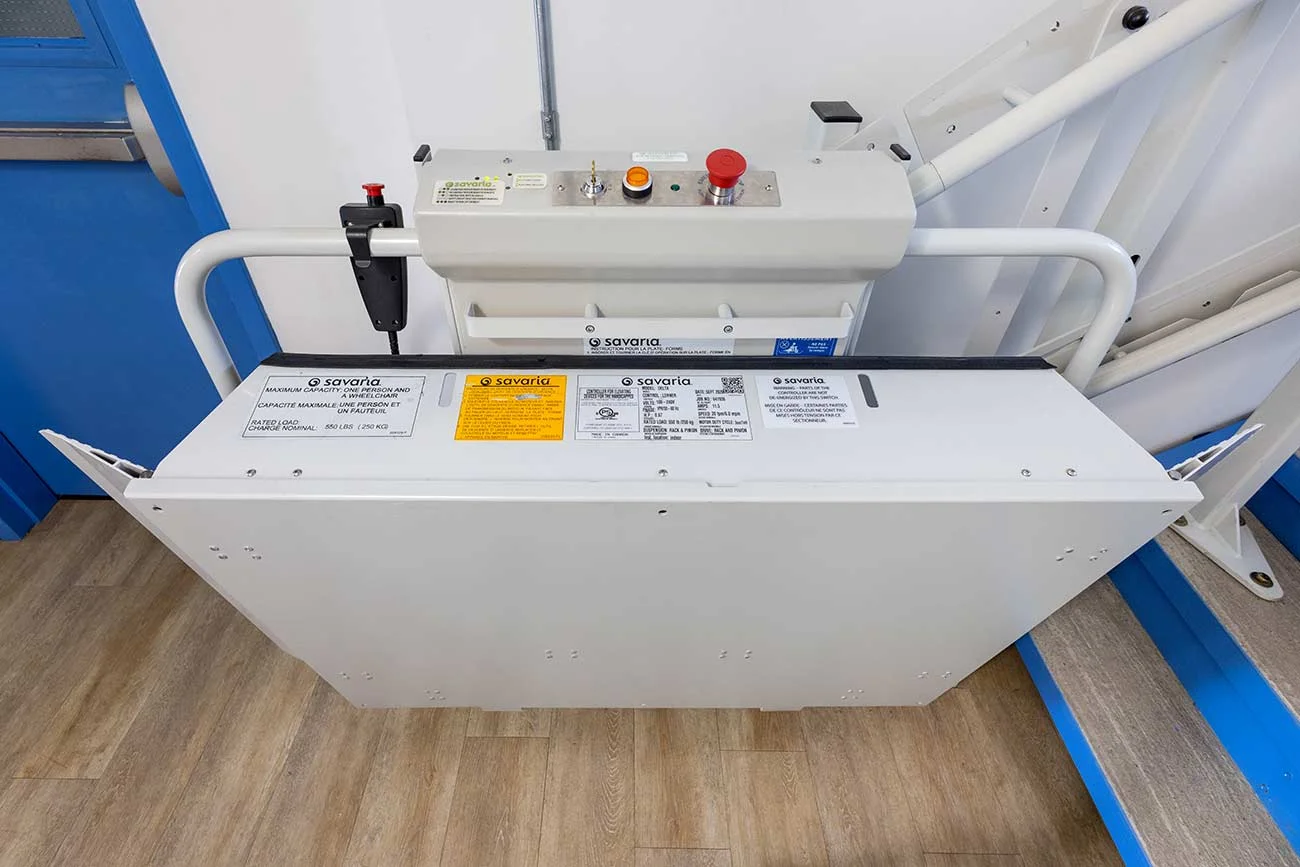

Savaria Delta inclined platform lift drive unit and control assembly with emergency stop buttons, safety arms, and fold‑up wheelchair platform installed on an indoor staircase.

The Delta inclined platform lift folds up to about 18 inches deep when it's not in use. That means people can still use the stairs and you have accessibility when it's needed.

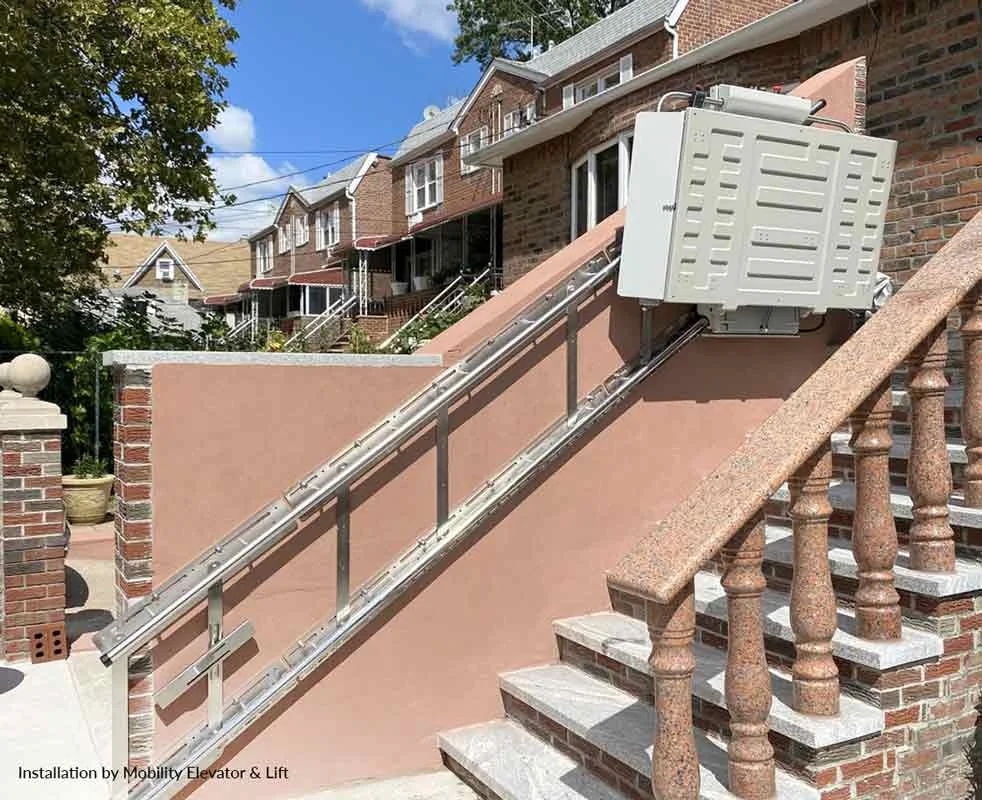

Savaria Delta inclined platform lift installed outdoors on a residential staircase, showing weather‑protected drive unit and rail system providing wheelchair accessibility between elevated entry levels.

An outdoor residential application of the Delta inclined platform lift. Installed by Mobility Elevator & Lift.

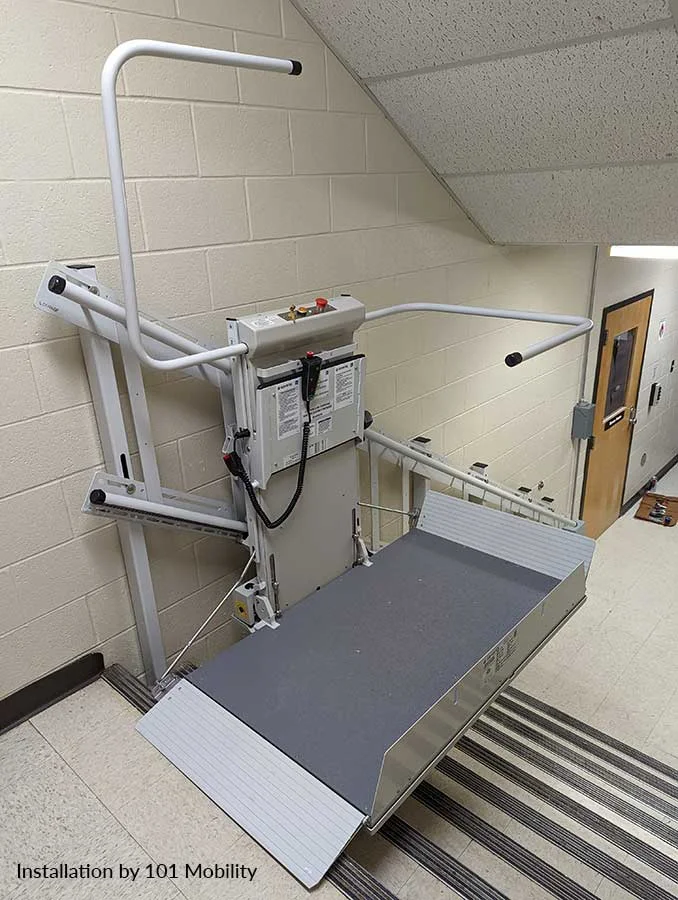

Savaria Delta inclined platform lift installed on an indoor staircase, featuring a fold‑down wheelchair platform, safety rails, and wall‑mounted rail system for commercial accessibility.

101 Mobility installed this Delta lift in Indiana. This install uses stanchions to secure the lift to the staircase.

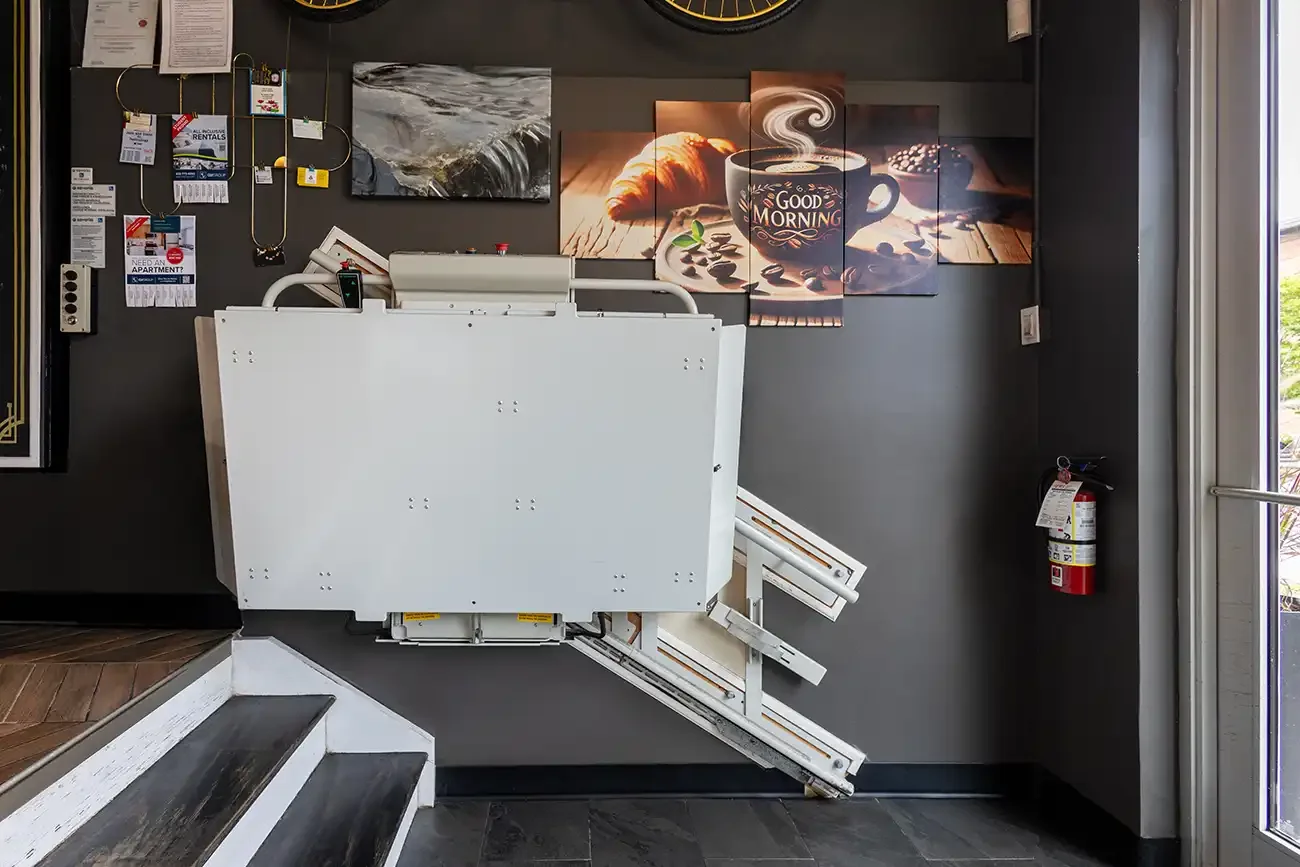

Savaria Delta inclined platform lift parked at a commercial stair landing, featuring a folded wheelchair platform, wall‑mounted rail system, and compact design to maintain clear stairway access.

Coffee shop understood the mission. Make it accessible. The Delta inclined platform lift is there when their customers need it.

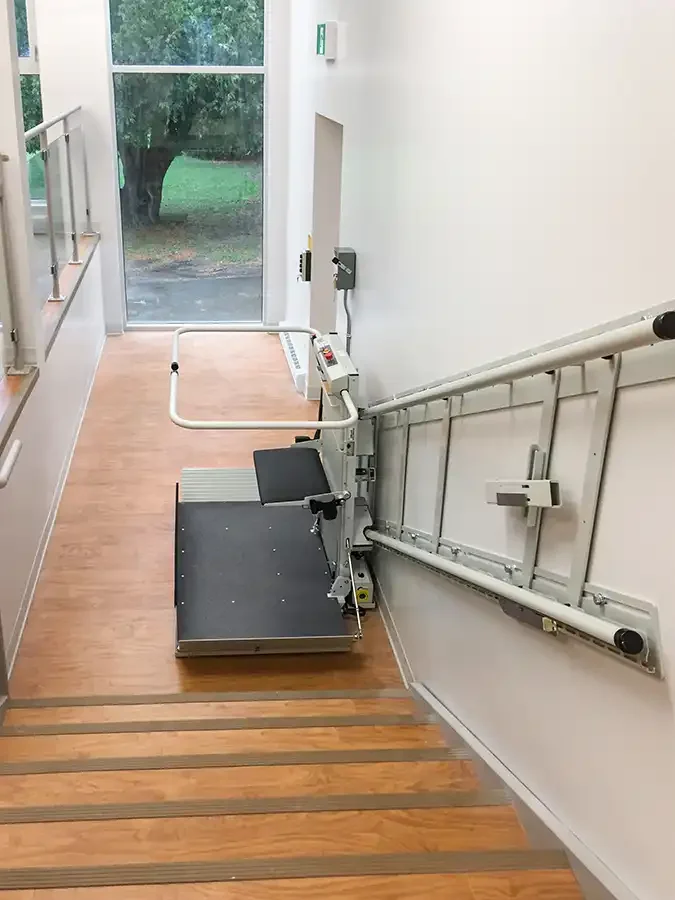

Savaria Delta inclined platform lift at upper landing, showing fold‑down wheelchair platform, safety arms, and wall‑mounted rail system installed indoors for commercial accessibility.

This Savaria Delta lift includes a fold-out seat. The platform features folding short side ramps and arms for the rider's safety.

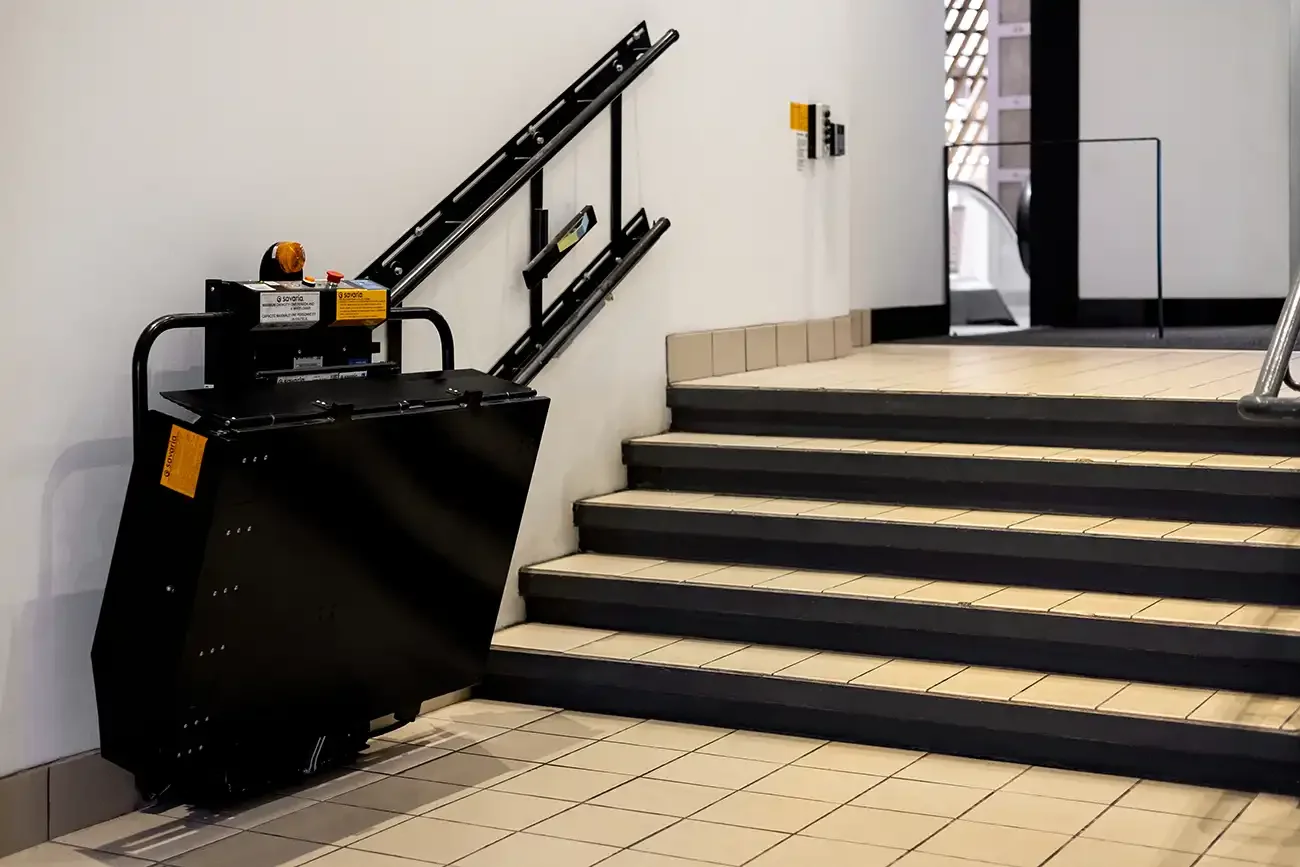

Folded inclined platform lift parked beside a commercial staircase, showing compact wall‑mounted rail system and minimal obstruction when not in use.

This university opted for a black Delta wheelchair lift installed on the reinforced wall beside the staircase.

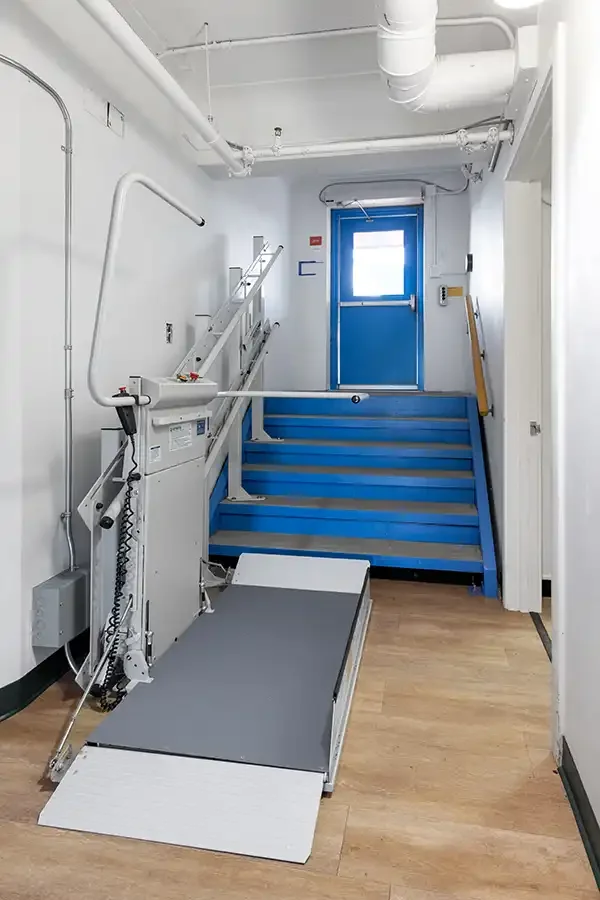

Savaria Delta inclined platform lift deployed at the base of a commercial staircase, featuring a full‑size wheelchair platform, safety arms, and wall‑mounted rail system for accessible travel between floor levels.

Accessibility is at the doorstep at this Montreal children's center thanks to the Delta wheelchair lift.

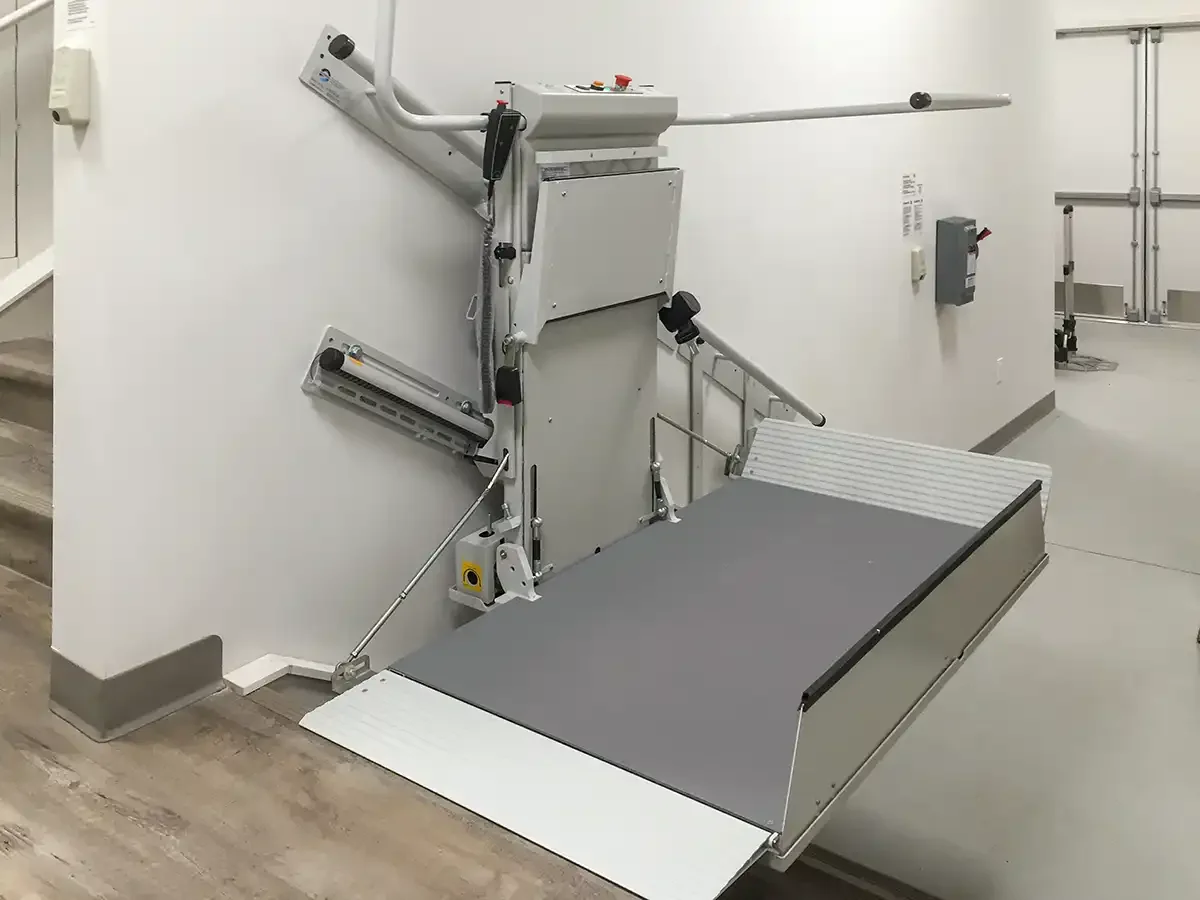

Savaria Delta straight inclined platform lift (IPL) with extended non-skid platform, side safety flaps, constant pressure controls, battery charging station, and manual lowering device at upper landing

When you use a wheelchair, it only takes a couple steps to create a massive barrier. The Delta eliminates the barrier at this public building in Canmore, Alberta.

Note that product galleries may show products, configurations, or product features that are not available in your region.

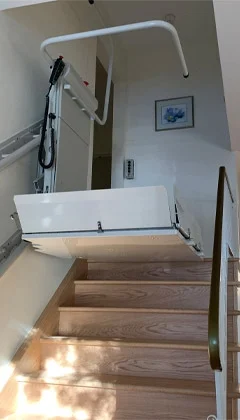

Delta inclined platform lift at the top landing of a wooden staircase.
