Savaria Vuelift Round Home Elevator
A home elevator with elegant curves and 360 views
The Vuelift Round elevator delivers a true 360-degree view from the cab. And, in the room, Vuelift Round lets the view and light shine through as well. Available in all-glass, or acrylic, Vuelift Round provides a factory-built luxury cab and hoistway, with simple construction preparation required by the homeowner.
Vuelift Round in Glass or Acrylic
Round Acrylic
The cylindrical design features curved panels in UV-resistant crystal clear acrylic. Framed in powder-coated steel with a curved landing door, the Round Acrylic Vuelift delivers modern luxury that suits many spaces.
Round+ Glass
Featuring low-iron silica glass, with no green hue, the Round+ Glass Vuelift provides sparkly clear views from any angle. The measurements with the Round+ Glass are slightly larger than the Acrylic Round model, with a larger door opening, and a higher capacity. No “short cab” option is available for this model.
Measurement Comparison
| Specification | Round Acrylic | Round+ Glass | |
|---|---|---|---|
| 1 | Overhead required | 108", optionally 104" or 96" (based on cab height chosen) | 108", optionally 104" (based on cab height chosen) |
| 2 | Floor cut-out required | 56" round + room for trim rings (≈ 6" additional) | 59 ⅛" round + room for trim rings (≈ 6" additional) |
| 3 | Clear gate opening | 26" (+/- ½") | 27" (+/- ½") |
| 4 | Minimum distance between landings | 93 ½" | 93 ½" |
| 5 | Interior cab size | 51" in diameter | 53" in diameter |
| 6 | Cab height | 84", optionally 80" or 76 ½" (short cab) | 84", optionally 80” |
| 7 | Cab floor area | 13 sq. ft. | 15 sq. ft. |
| 8 | Floor allowance | Up to ¾" for owner-supplied flooring | Up to ¾" for owner-supplied flooring |
Vuelift Round Specifications
Applications
Residential, indoors
Motor
3.5KW (5HP)
Standard capacity
840 lb for Acrylic, 950 lb for Glass
Maximum travel distance
50 ft (15.2 m), 55 ft (16.7 m) with variance, up to 6 stops
Nominal speed
32 fpm for Acrylic, 40 fpm for Glass
Pit depth
4"–12" (102–305 mm)
Power / Lighting supply
230V/1PH/50–60Hz (30 amps) plus 120V/1PH/50–60Hz (15 amps) for lighting
One touch Alert
Optional. Learn more.
Savaria Link
Optional. Learn more.
Warranty coverage
All Vuelift models are covered by a 3-year warranty against parts defects.*
Entry/exit configurations available
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Vuelift Round Gallery
See how others have installed the Vuelift Round elevator

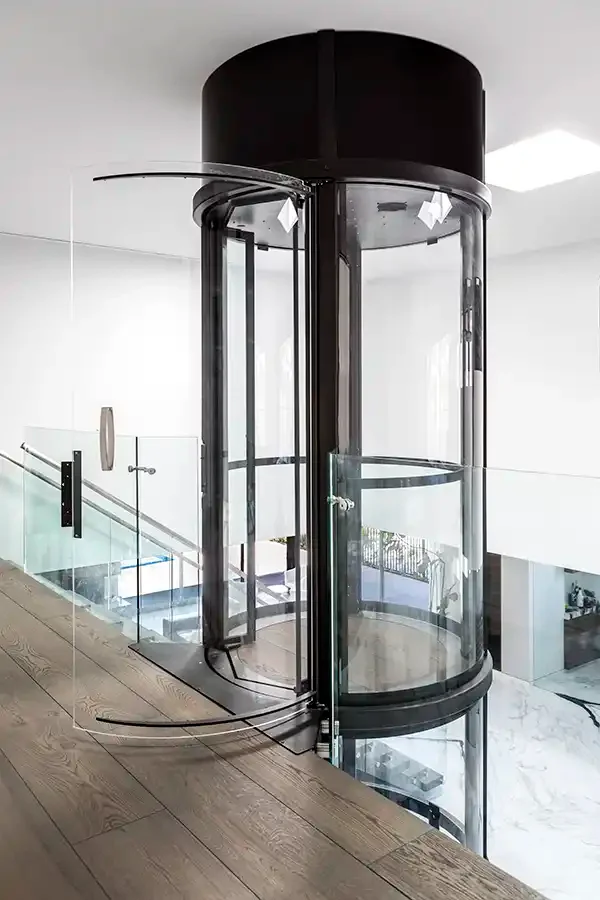

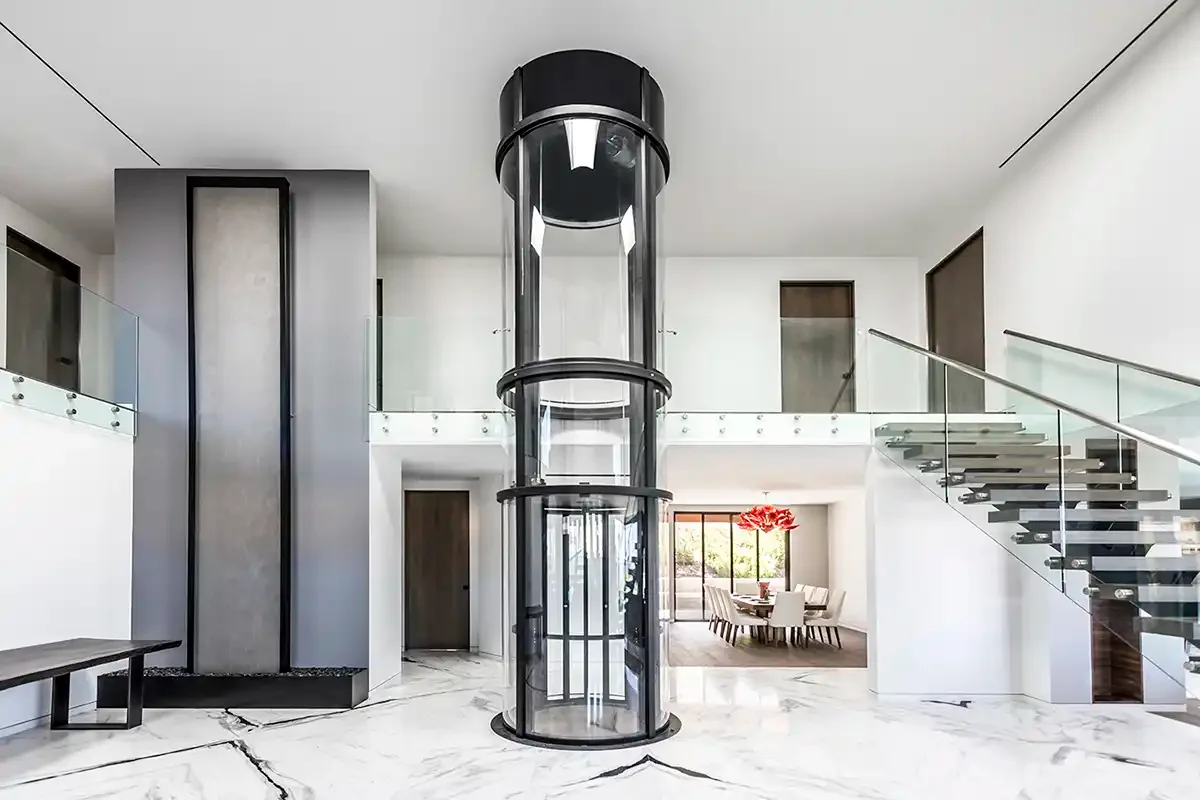

The Vuelift can make a statement if you want it to. Here it's featured prominently.

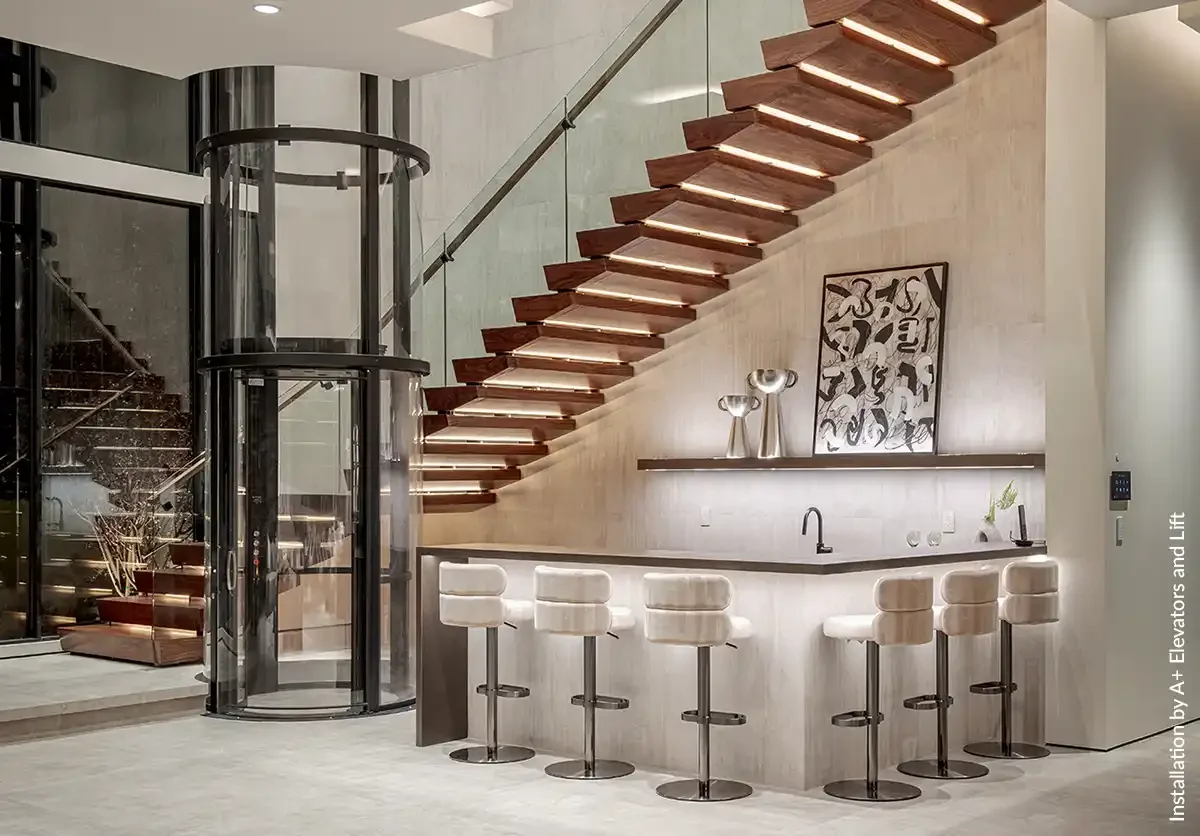

This Vuelift is a luxurious addition to complement the staircase in this Vista Serena showroom installed by A+ Elevators & Lifts. vistaserenashowcase.com

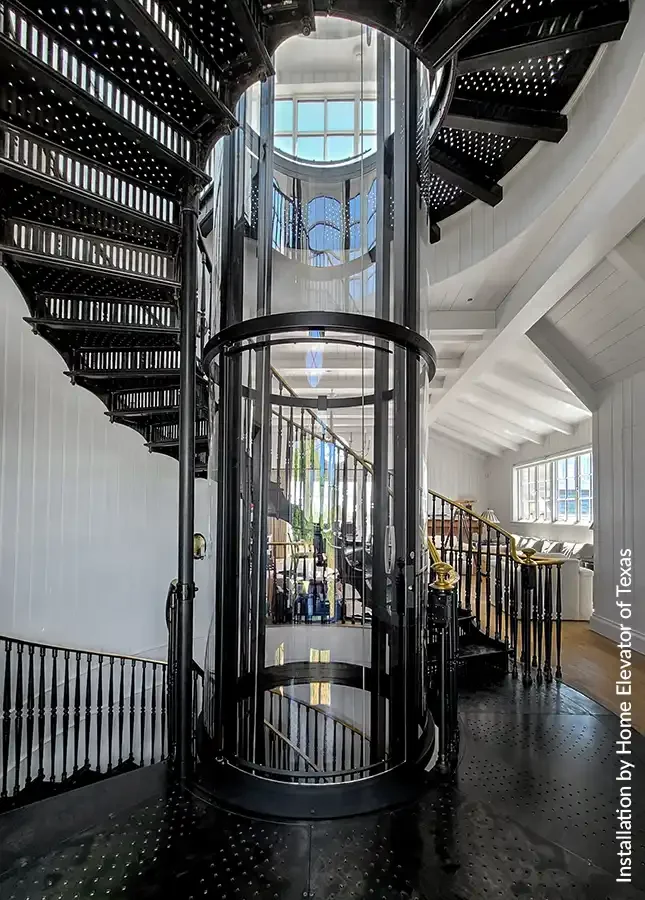

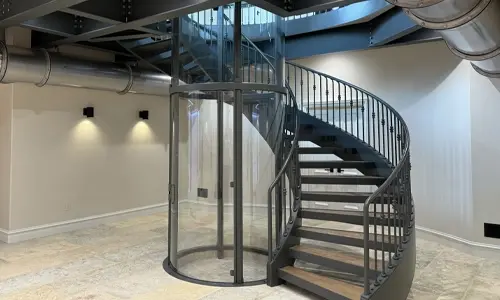

A beautiful Vuelift installation by Home Elevator of Texas with this iron wraparound staircase.
In the coastal area of Rancho Palos Verdes, this Vuelift attaches to the balcony level of this contemporary home.

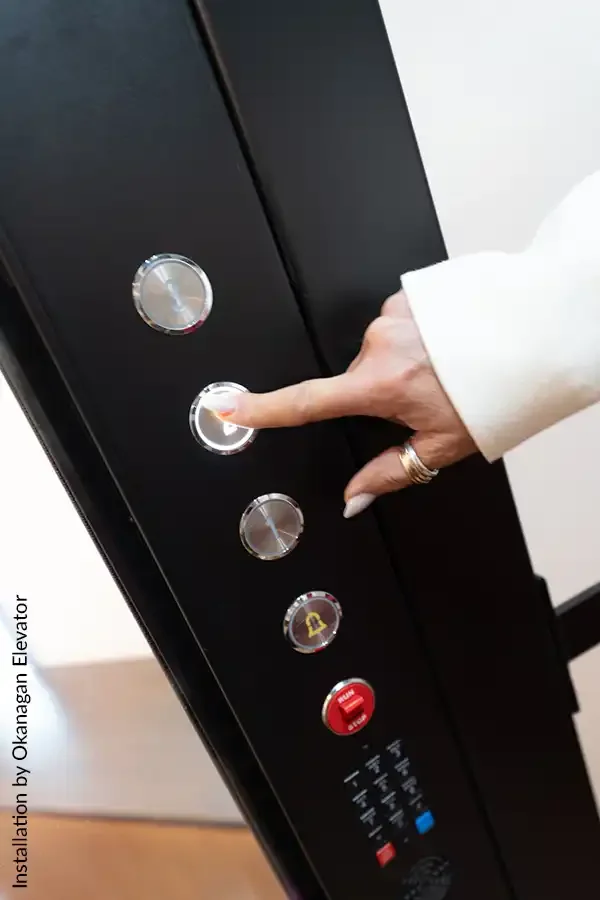

The Vuelift features simple controls photo courtesy of Milen Kootnikoff.

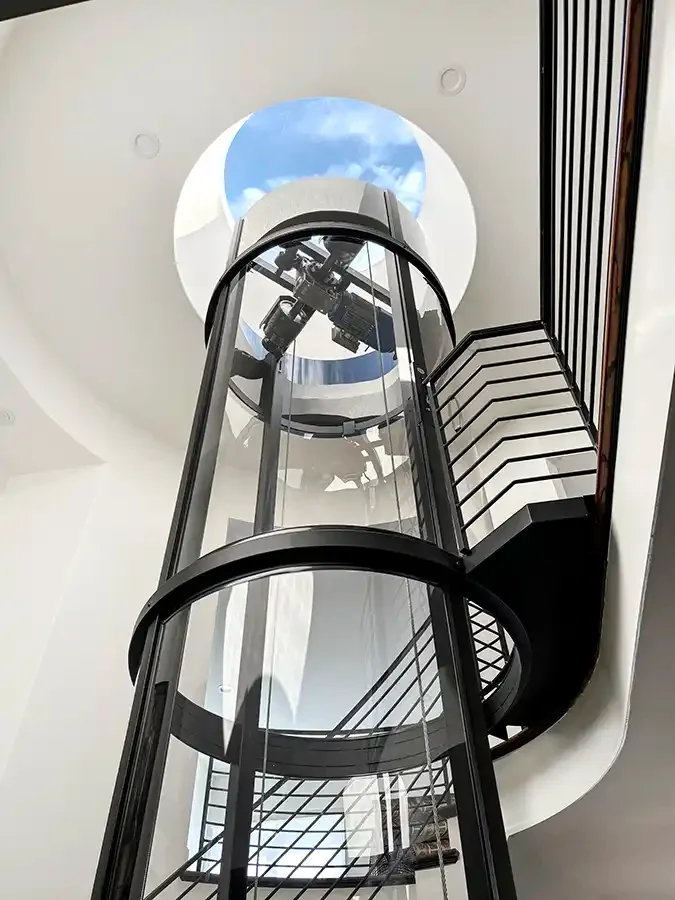

In Squibb Estates, Denver, this Vuelift fits perfectly with the round skylight above, installed by HES.

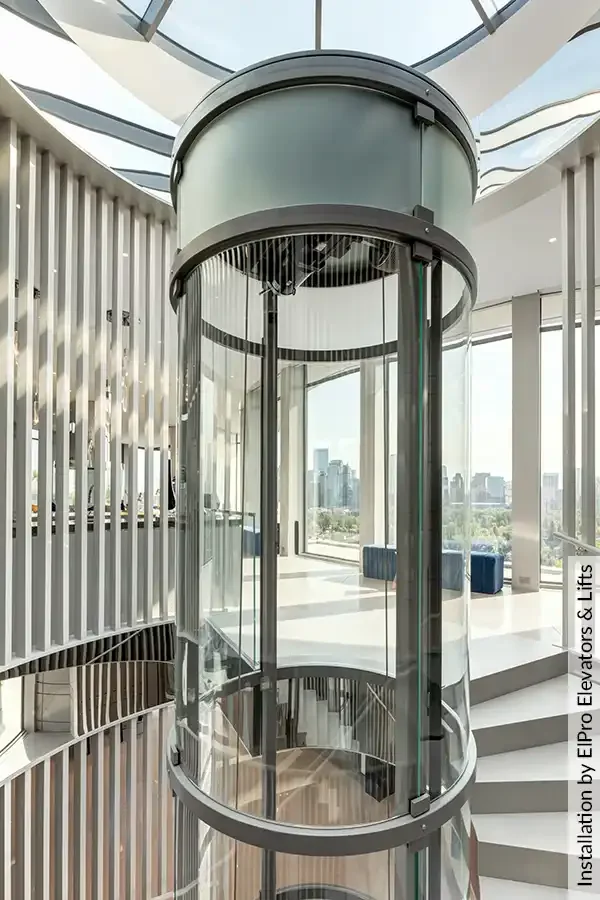

At Project Hilltop in Calgary, ElPro Elevators & Lifts installed the Vuelift Round for a wow-worth experience. Photo courtesy of Rob Moroto.

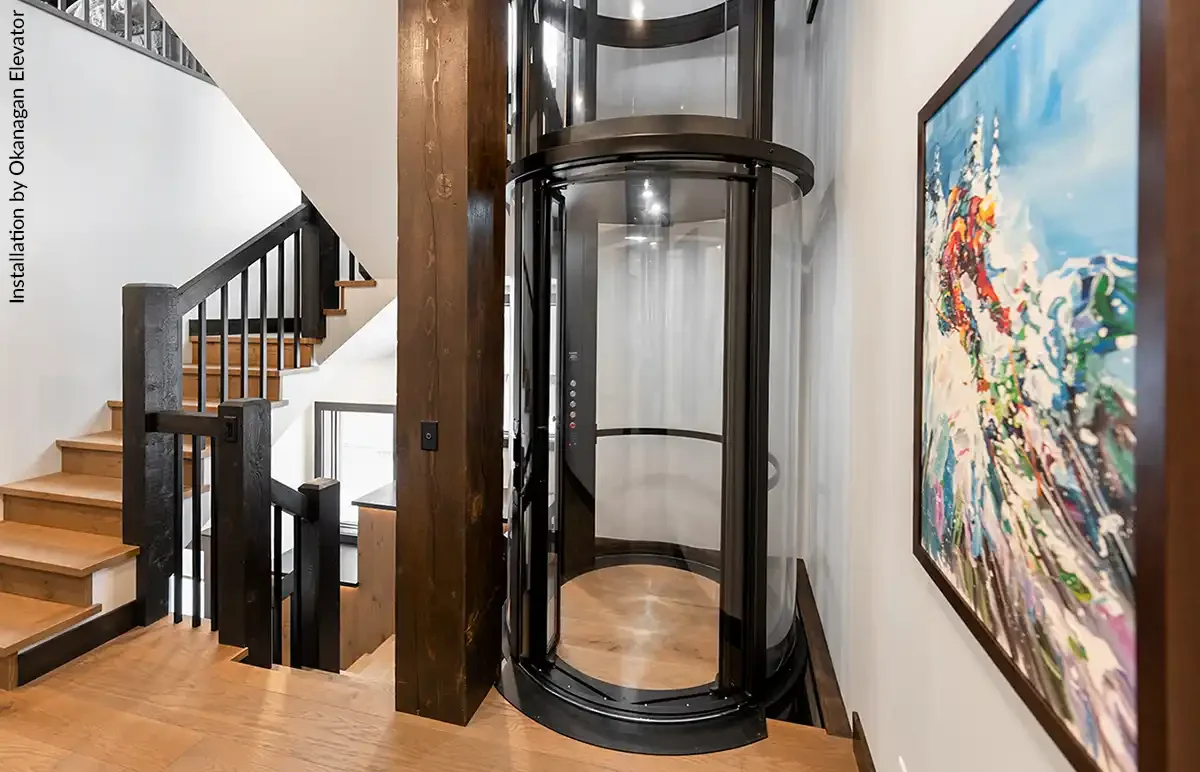

This Vuelift installed by Okanagen Elevator was featured in Build Magazine, photo courtesy of Milen Kootnikoff.
Learn more

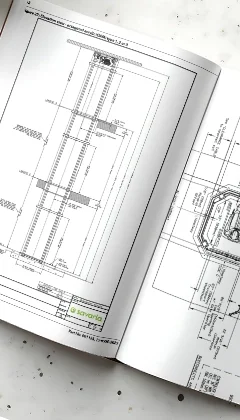

Consult the Vuelift planning guide for more information about measurements and site preparation.
Which Vuelift is right for you?
Download the Vuelift Model Comparison Chart.
