Savaria Orion MRL LU/LA Elevator

Premium, machine roomless accessiblity elevator

The Savaria Orion LU/LA MRL elevator is built for heavier daily use installations. The geared traction counterweight drive can be installed as a true machine-roomless way saving space. No hydraulic fluid is use, reducing maintenance costs and complexity.

The Orion requires less overhead and pit depth compared to full-sized commercial elevators, keeping site preparation costs lower. Built for low-rise applications of 3-stories, the Orion MRL carries up to 1400 lb and up to 200 daily trips.

Find a Dealer

Orion MRL drive

Our top-of-the-line LU/LA elevator

The Savaria MRL Orion is ideal for busier buildings including medical offices, or hospitality settings. The drive system is ultra quiet and with the door buck controller cabinet option, even the controller can be installed adjacent to the elevator, rather than in a remote location.

Customization

Choose from a range of cab designs, or customize to suit your project. Configure with same-side, straight-through or 90-degree access.

Low construction costs

Geared traction, MRL drive system

Standard safety features

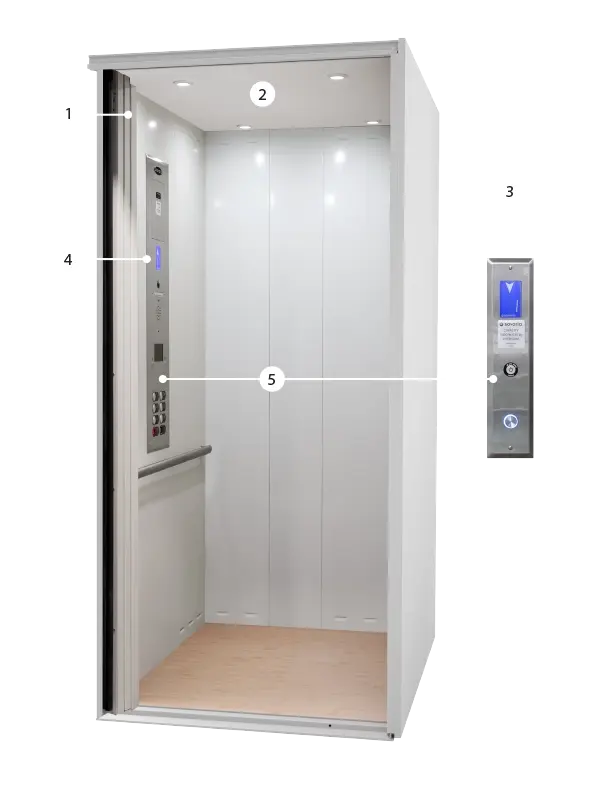

Savaria Orion MRL LU/LA elevator

Standard package

Two-speed sliding doors with infrared closing sensors in black or architectural white
Interior cab lighting is auto on/off
Call the elevator with the provided hall call button that includes illuminated floor position indicators

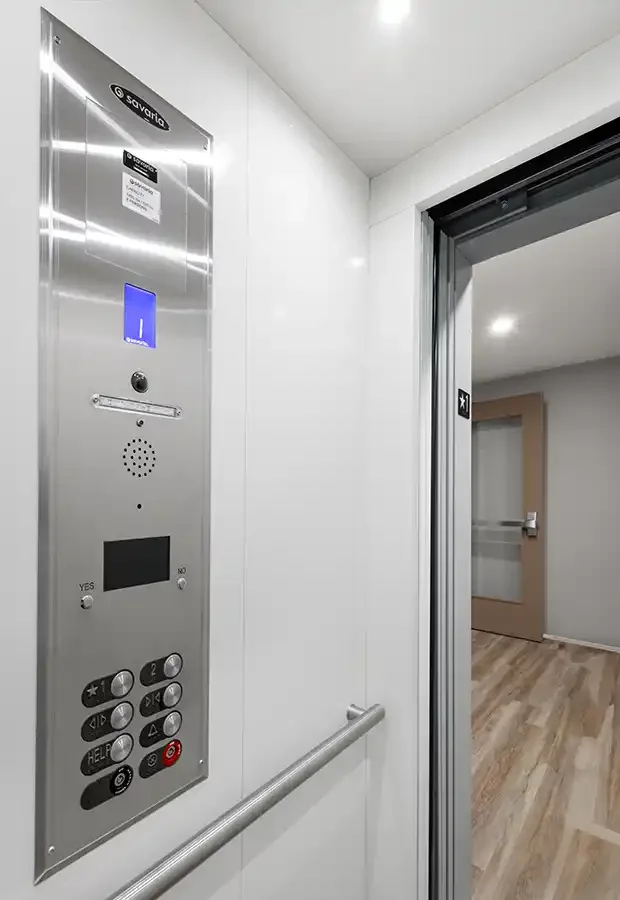

Cab operating panel features illuminated buttons and digital floor indicator
The standard Orion with classic cab includes stainless steel hall calls and cab operating panel

Hydraulic Elevator paired with stainless steel frame and gray laminate flooring.

Orion cabs

See more about Orion cabs and options.

Learn More

Grayscale image of an enclosed vertical platform lift with a white notebook graphic overlaid, featuring a green line‑art icon of an outdoor lift with stairs.

Learn more

See our ultimate guide to commercial accessibility to learn more about the best options for your project.

Read Now

Orion MRL Specifications

Applications

Commercial (LU/LA), residential (where code permits), indoors

Drive/motor

Counterweight gear traction drive with slack cable device

Standard capacity

1400 lb (635 kg)

Minimum pit

17" (432 mm)

Maximum travel distance

25' (7620 mm), with up to 6 stops (subject to local code requirements); higher travel available where code permits.
Nominal speed: 30 ft/min (0.15 m/s)

Minimum overhead clearance

111" (2820 mm), or 113" (2870 mm) for Orion17 cab; for new-build overhead is 134" (3404 mm) per code

Power supply

208 volt, three phase, 60 Hz, 30 amps or 240 volt, single phase, 40 amps, 60 Hz

Lighting supply

120 volt, 15 amps, 60 Hz

Nominal speed

30 ft/min (0.15 m/s)

Savaria Link

Optional. Learn More.

Cab sizes

W48" x L54" x H84" (1219 mm x 1372 mm x 2134 mm), Type 1, 2, 3, 4
W42" x L60" x H84" (1067 mm x 1524 mm x 2134 mm), Type 1, 2, 3, 4
W42" x L54" x H84" (1067 mm x 1372 mm x 2134 mm), Type 1, 2
W51" x L51" x H84" (1295 mm x 1295 mm x 2134 mm), Type 3, 4

Entry/exit configurations available

Warranty

Warranty: A 36-month warranty against defective parts is included through your local dealer.*

*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

Savaria Orion Gallery

See how others have installed the Orion elevator

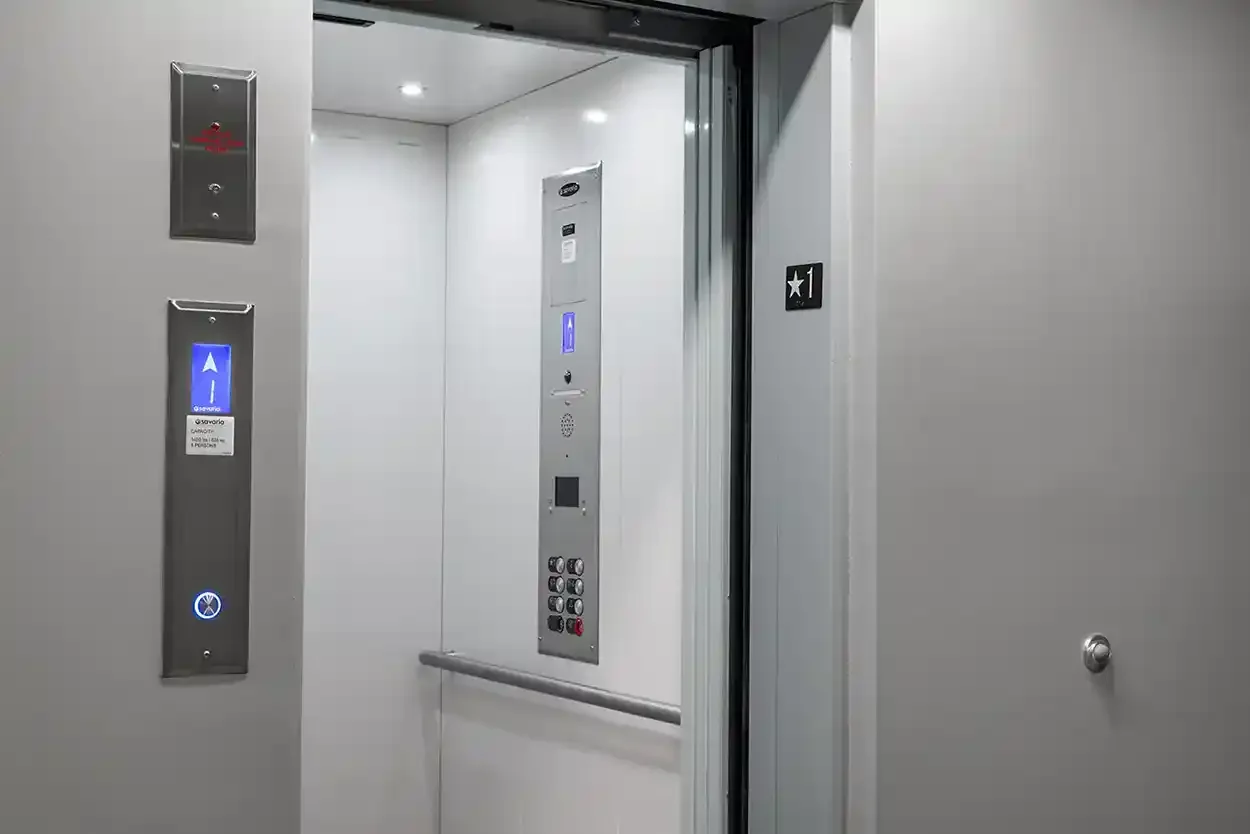

Modern commercial elevator interior with open door, illuminated control panel, call buttons, and handrail, providing accessible vertical transportation within a commercial or residential building.

An architectural white painted steel cab in this Orion MRL also shows the stainless steel operating panel and hall call with floor position indicator.

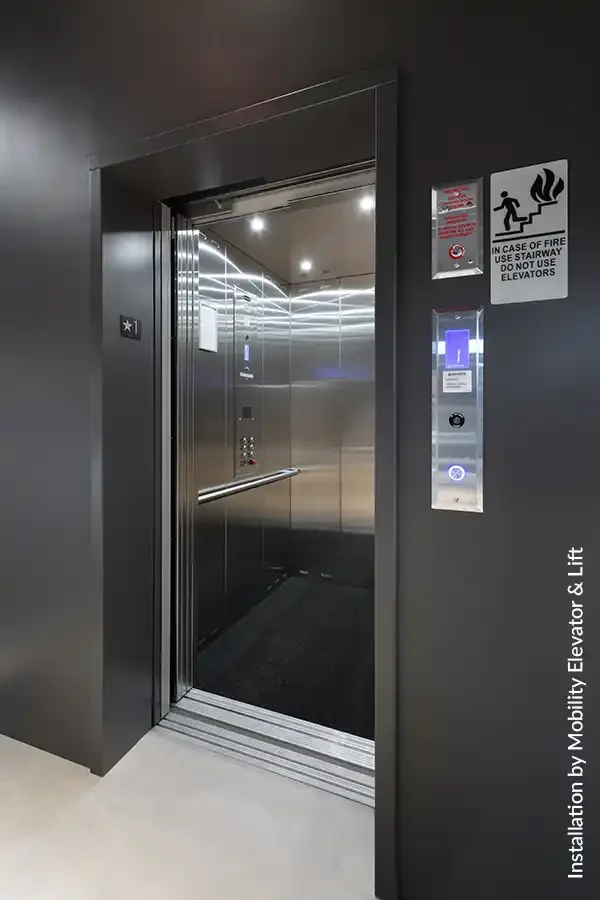

Open commercial elevator with stainless steel interior, illuminated ceiling panels, and dark corridor walls

Mobility Elevator & Lift installed this Orion MRL to meet this luxury retailer's accessibility needs as well as their brand standards with a great looking elevator.

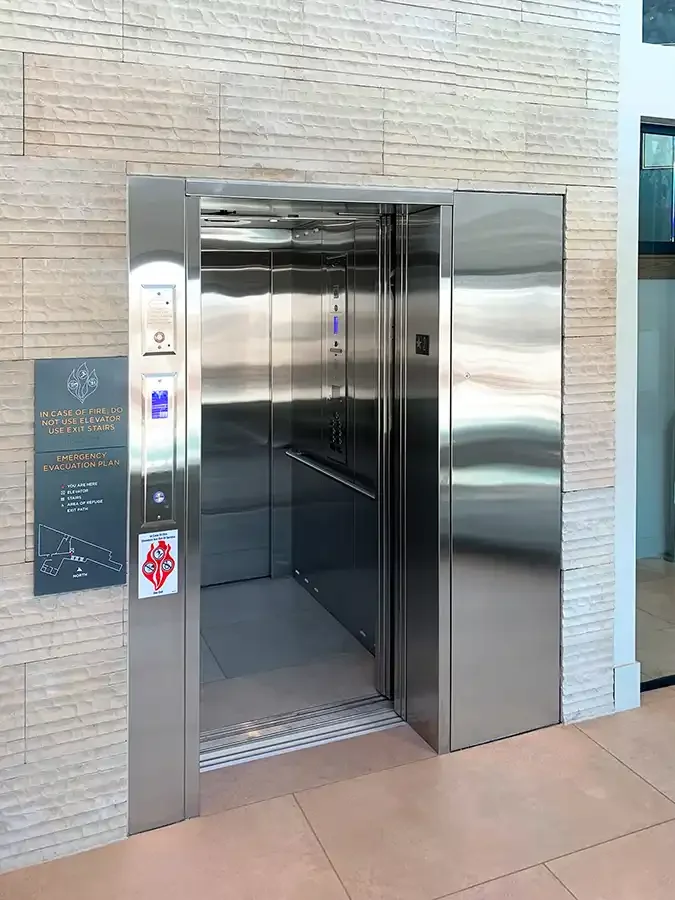

Stainless steel commercial elevator with open doors installed in a modern building lobby, featuring illuminated call buttons, control panel, and accessible entry for vertical mobility between floors.

This Orion MRL has the controller located behind the stainless steel panel to the right. The all-stainless cab looks great against the stone tile in this low-rise building. Installed by HES Elevator in Denver.

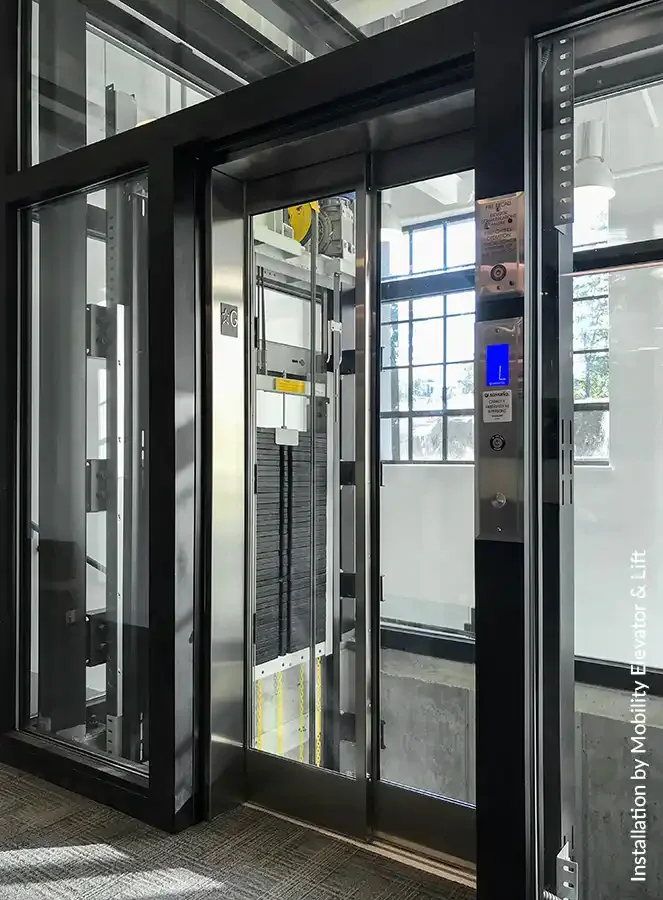

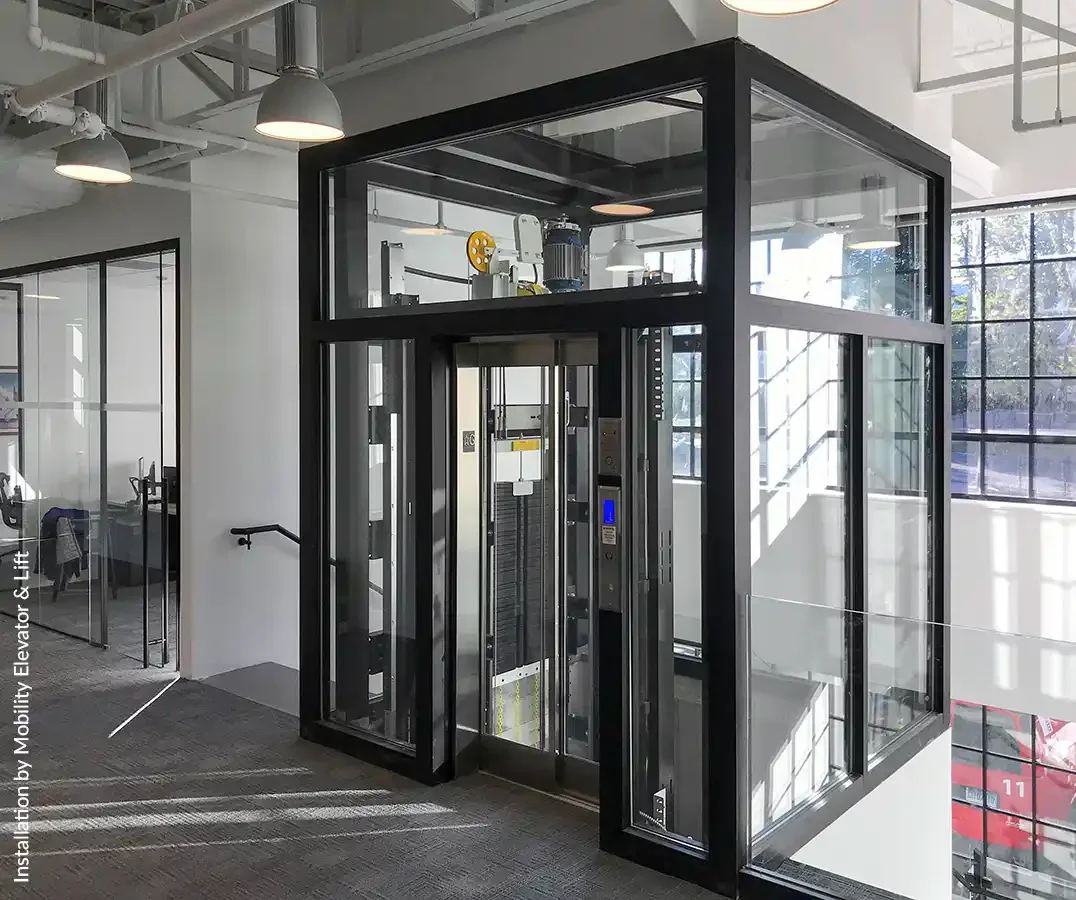

Glass enclosed commercial elevator with black metal frame and stainless steel doors installed inside a modern building, featuring illuminated control panel and transparent cab for accessible vertical transportation.

With the glass hoistway, the drive mechanism can be seen at work. It adds a cool factor to this Orion MRL installed by Mobility Elevator & Lift in New York.
