Handicare 1100 Straight Stairlift
Innovative multi-drive system features covered rail
The Handicare 1100 straight stairlift uses a patented four-motor system that eliminates the need for a gear rack. The result is a fully enclosed travel rail for a stay-clean look. With a wide range of power options and an innovative slide-track feature when you have a door at the top of bottom of your stairs, the Handicare 1100 is next-gen technology.
Friction four-motor drive
Closed rail, smooth operationDeveloped by Handicare, the friction drive delivers a super smooth ride with stop and start. Without the need for a gear rack that’s used for rack and pinion systems, the travel rail is fully closed, without openings for dust, dirt, or grease.

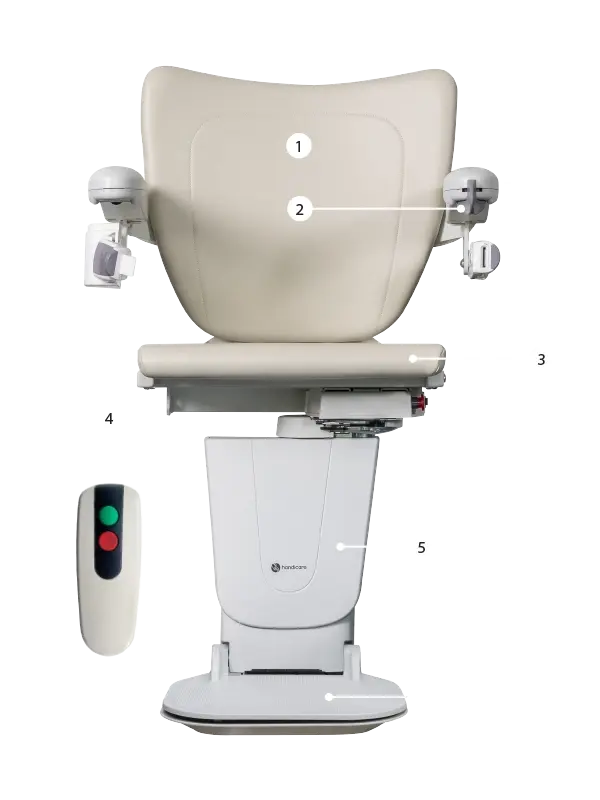

Handicare 1100 Stairlift
Standard features and finish
- The lift is white with vinyl seat upholstery in vanilla
- Control the stairlift with the toggle on the armrest

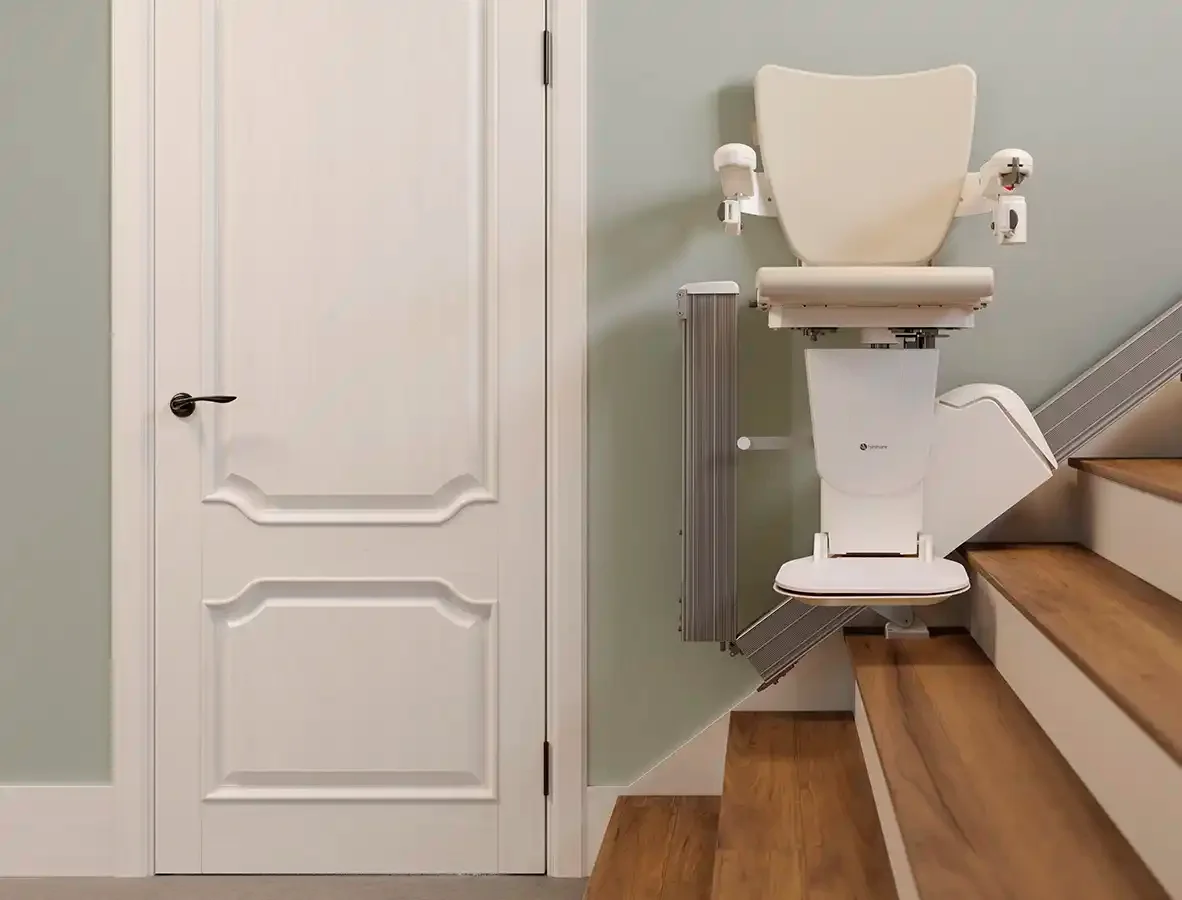

- The seat, footrest, and arms fold up to keep the lift compact when not in use
- Comes with two remote controls which allow you to call the stairlift from upstairs or down
- The Handicare 1100 operates on battery power with continuous charging throughout the rail to ensure the lift is always ready to go. If there is a power failure, the stairlift will provide several up and down trips
Additional Options
Power Footrest
Choose a power folding footrest to add to your Handicare 1100 if you find it difficult to bend down to fold the footrest.
Power Swivel
A power seat swivel automatically turns the stairlift when it arrives at the top landing for safe deboarding if you find it hard to manually turn the seat with the seat swivel handle.
Slide track for doorways
If you have a door or entrance near the bottom or top of your stairs, the slide track system eliminates the potential tripping hazard when the rail protrudes into the doorway. As the lift moves up or down, the track retracts to clear the way.
Zero intrusion for top landing door
A simple solution for a top landing doorway is the zero intrusion brackets that secure the top of the travel rail to the top step, eliminating the rail intrusion – and tripping hazard – beyond the staircase.
Easy hinge for bottom landing door
Add a lightweight manual hinge, aided by a gas strut, to the bottom section of the travel rail as an easy way to move the rail out of the way at the bottom landing.
Handicare 1100 Specifications
Applications
Residential, indoor
Motor
0.4hp, 24 VDC battery that charges on standard household power.
Standard capacity
310 lb (140 kg)*
Range of incline
30˚ to 50˚
Fold-up depth
12⅝" (320mm)
Fold-out depth
21" (530 mm)*
Maximum travel
23 ft (7 m)
Nominal speed
15 ft/min (0.08 m/s)
Warranty
A 24-month warranty against defective parts is included through your local dealer.**
*capacity is limited to 287 lb for inclines >46˚.
** Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Safety features
- An obstacle sensor on the footrest and carriage stops the lift if it encounters an obstruction.
- The seat swivels and locks for safe deboarding at the top of the stairs.
- The footrest includes a non-skid surface and the seat includes a retractable seat belt.
- An overspeed governor ensures the lift does not exceed rated speed on the descent.
*Stairlift model shown on video may vary.
Handicare 1100
See Handicare 1100 stairlift installations

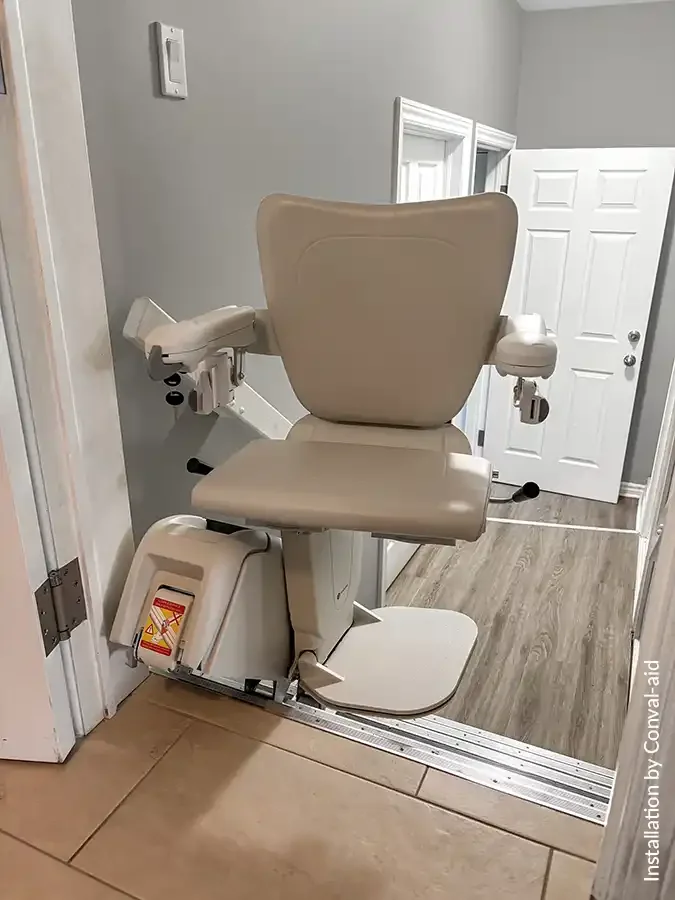

Installed by Conval-Aid, this 1100 stairlift is shown with the top landing seat swivel turned.

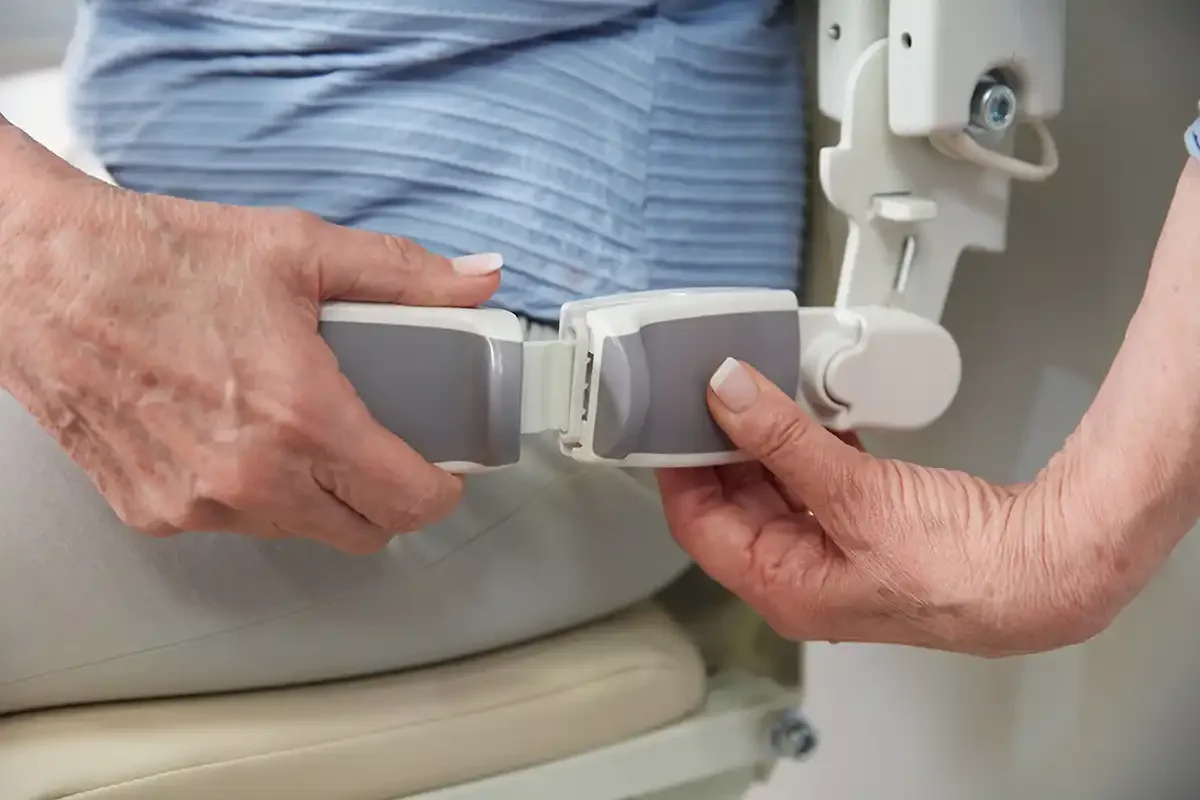

Yes, there's an easy-to-use seatbelt to wear while riding your stairlift.
Seems simple, but a stairlift really can make a huge difference for your happiness. Worrying about using the stairs disappears.

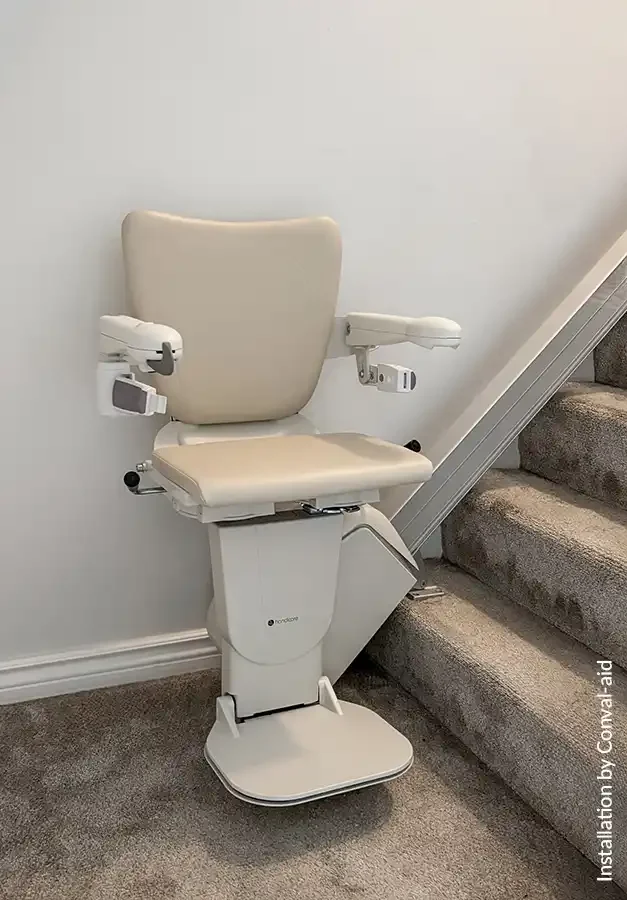

The Handicare 1100 offers many optional features such as power seat swivel and a power folding footrest. This one was installed by Conval-Aid.

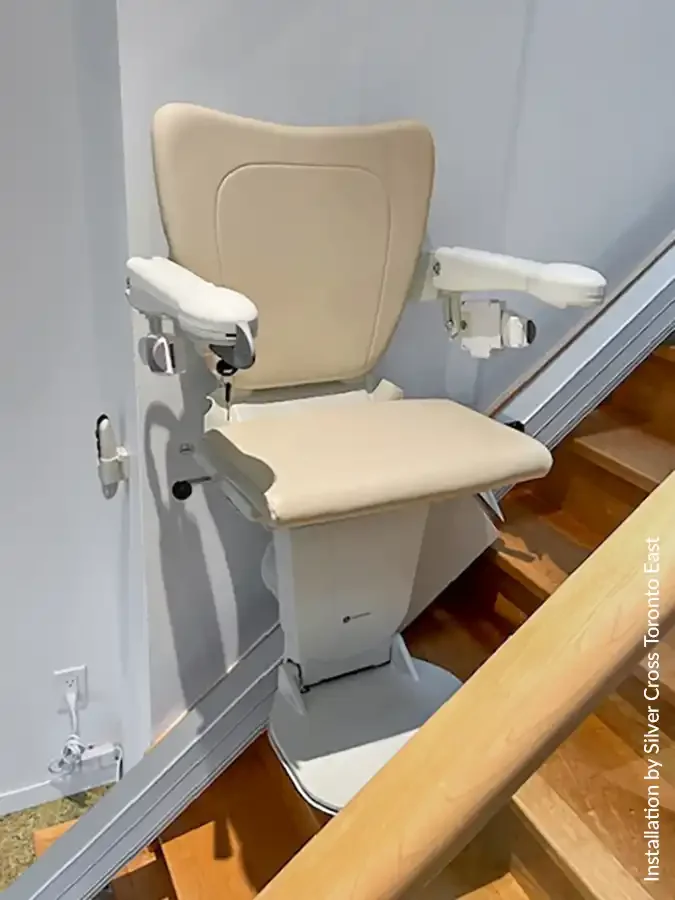

This Handicare 1100 stairlift installation shows enclosed travel rail which looks and stays clean.

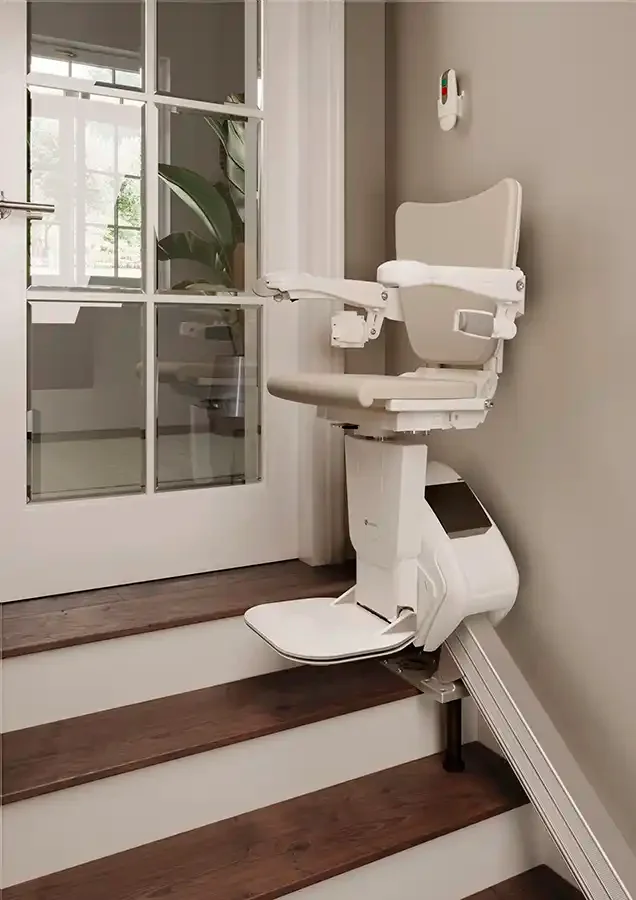

If you have a door near the top landing, the zero intrusion option for the Handicare 1100 reduces the length of rail that protrudes past the top step.

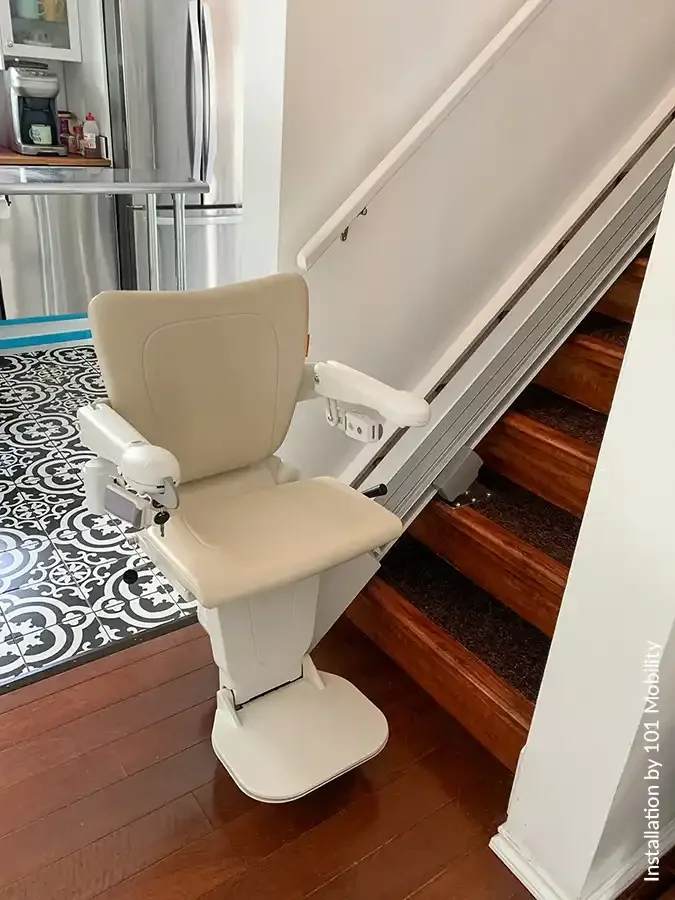

This Handicare 1100 features a slide track that extends the rail automatically as the chair descends, then retracts it away from the door as the chair moves up. Installed by 101 Mobility Calgary.
Have a door at your bottom landing? The easy-hinge is a great way to keep the rail out of the way. Available on the Handicare 1100 stairilift.
