Handicare Freecurve Stairlift
Handicare 4000 Stairlift
Custom twin-rail with many options
The Handicare 4000 model, made by Savaria, is known for its exceptional fit for virtually any curves. The double-rail design is custom fabricated using our proprietary PS4D photo-measuring system. The rail fits close to the wall or railing of your staircase to maximize the space on your stairs. Great for spiral staircases, or for out-of-the-way parking of the lift at the top or bottom of your staircase. The 4000 also offers a range of seat styles, along with power features to make the lift even easier to use.
Custom fit – in just a few weeks

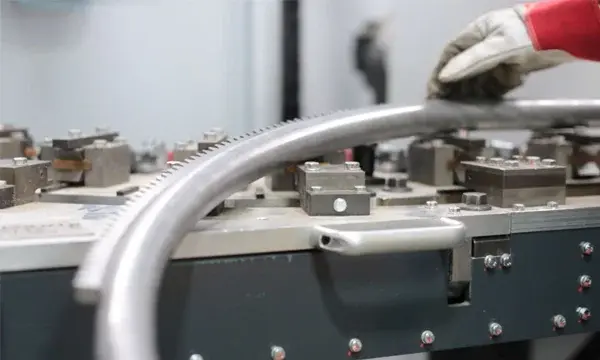

A stairlift built for smooth, unobtrusive operationWith our fast fabrication, we can produce your custom curved Handicare 4000 in as little as 2 weeks. There is no compromise on fit with the 4000 due to its twin-rail design that can be bent quite tightly to accommodate sharp turns, 90-degree parking, or narrow staircases. This results in more clearance on the stairs when the stairlift is not in use and a less obtrusive look on the stairs.
Handicare 4000 Stairlift

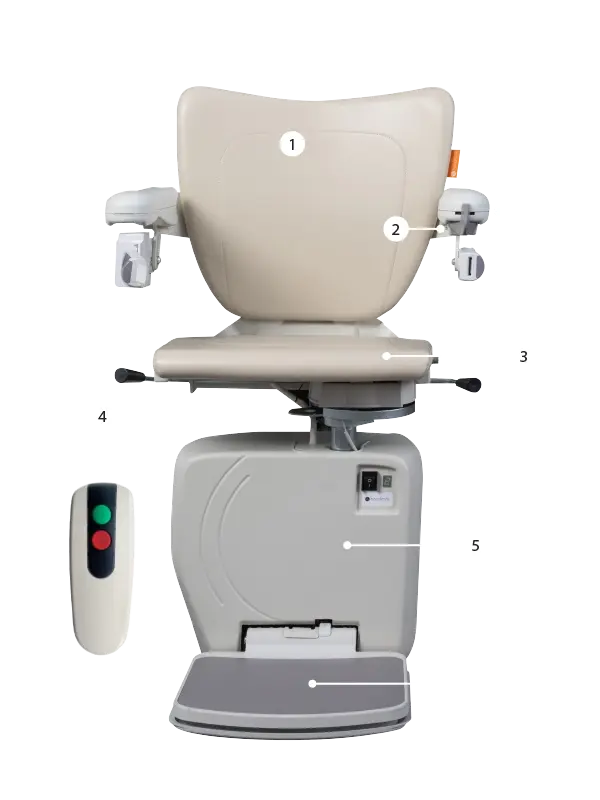

Standard features and finish
- The standard stairlift rail is painted in light grey with an off-white carriage and vanilla seat fabric
- Control the stairlift with the toggle on the armrest
- The seat, footrest, and arms fold up to keep the lift compact when not in use
- Comes with two infrared remote controls which allow you to summon the chair from the top or bottom of the stairs

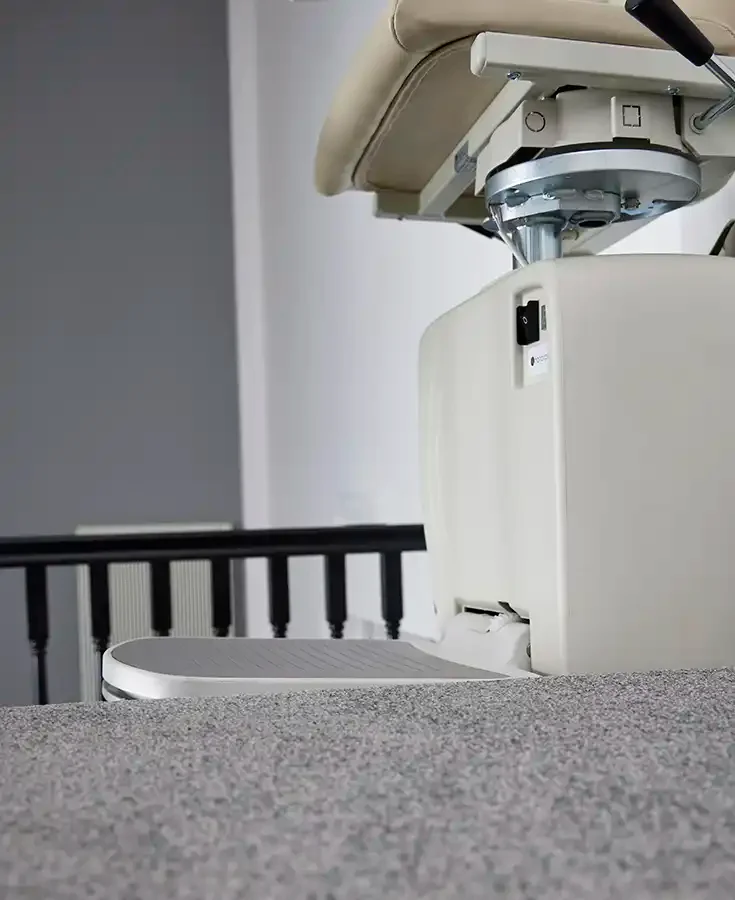

- The Handicare 4000 is a rack and pinion drive that operates on battery power with built-in charging stations at the top and bottom of the rail. If there is a power failure, the stairlift will provide several up and down trips
Additional Options
Add one or more power features to your Handicare 4000 for ease of use. Learn more about power features.
Power Footrest
A power folding footrest means you don’t need to bend down to fold or unfold the footrest.
Power Swivel
The power seat swivel turns the seat at the top landing using the toggle switch, rather than the manual seat swivel handle.
Power Hinge
A power folding hinge keeps the bottom landing area free of a tripping hazard if you have a doorway at the bottom of the stairs.
Perch seat
See the Perch seat if you have difficulty to fully sit on the chair due to knee or hip troubles.
5 Point harness
A five-point harness is available for added security while riding the chair.
Parking
Add 90- or 180-degree parking so your chair travels around the stair railing at the top, bottom or both landings. This provides a more spacious and safe area to get on and off the lift.
4000 Seat Options
The Handicare 4000 offers a choice of 5 seat designs, some with vinyl seat color options
- Simplicity seat in sand
- Style seat in vanilla
- Smart seat in cacao, sand or slate
- Perch seat in cacao, sand or slate
- Outdoor seat in slate
The standard rail is grey, but you can optionally order in black or brown.
See the Seat Measurement Chart to compare the seat offerings
Take it outside
The Handicare 4000 can be installed outdoors in moderate climates with an outdoor package. This package includes nickel-plated travel rails, stainless steel stanchions and weather resistant seat fabric in dark gray (slate).
See it before you buy!

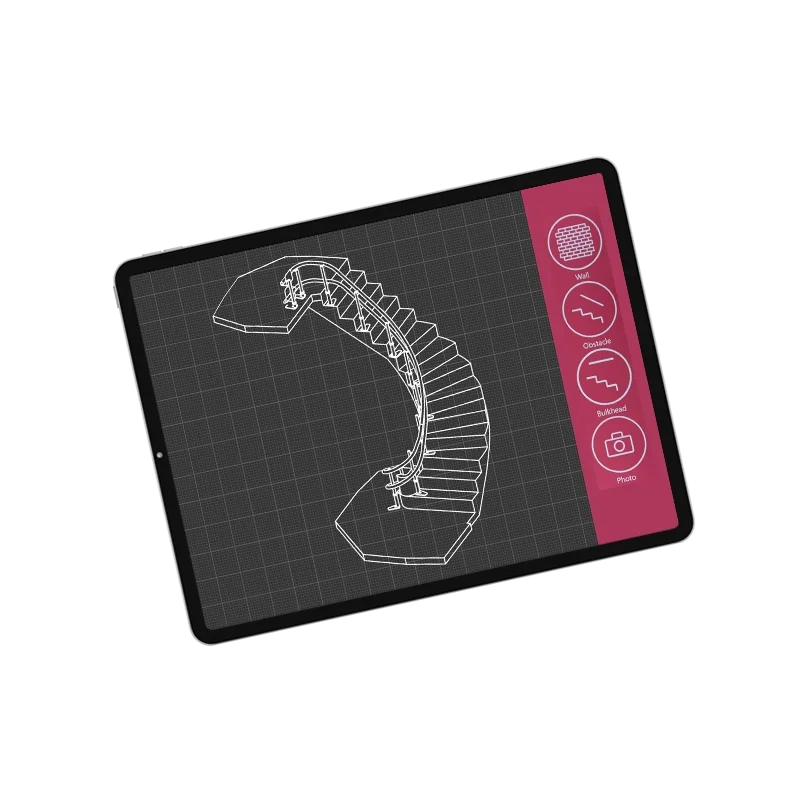

Your local Savaria Home Access expert will visit your home to do an assessment and conduct a precision photo measurement session using the Savaria PS4D system. Ask to see the Handicare 4000 on your staircase with our virtual imagery.
Handicare 4000 Specifications
Applications
Residential, commercial (USA only), indoor, outdoor*
Motor
24 VDC, 0.6 hp
Standard capacity
300 lb (136 kg), 350 lb (159 kg) optional
Range of incline
0˚ to 56˚
Fold-up depth
16" (40.5 cm)**
Fold-out depth
27⅜ " (69.5 cm)**
Maximum travel
49 ft (14.9 meteres)
Nominal speed
23ft/min (0.12 m/s) 12 ft/min (.06 m/s) through curves
Drive
Rack and pinion
Warranty
A 24-month warranty against defective parts is included through your local dealer.***
*Check with your local dealer if the outdoor option is available in your region
**See complete measurements for all seats here
** Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Safety features
- An obstacle sensor on the footrest and carriage stops the lift if it encounters an obstruction.
- The seat swivels and locks for safe deboarding at the top of the stairs.
- The footrest includes non-skid covering and the seat includes a retractable seat belt.
- An overspeed brake ensures that the lift does not travel too fast when descending.
*Stairlift model shown on video may vary.
Handicare 4000 Gallery
See Handicare 4000 stairlift installations
A very tight turning radius on the Handicare 4000 stairlift keeps it compact to your staircase.

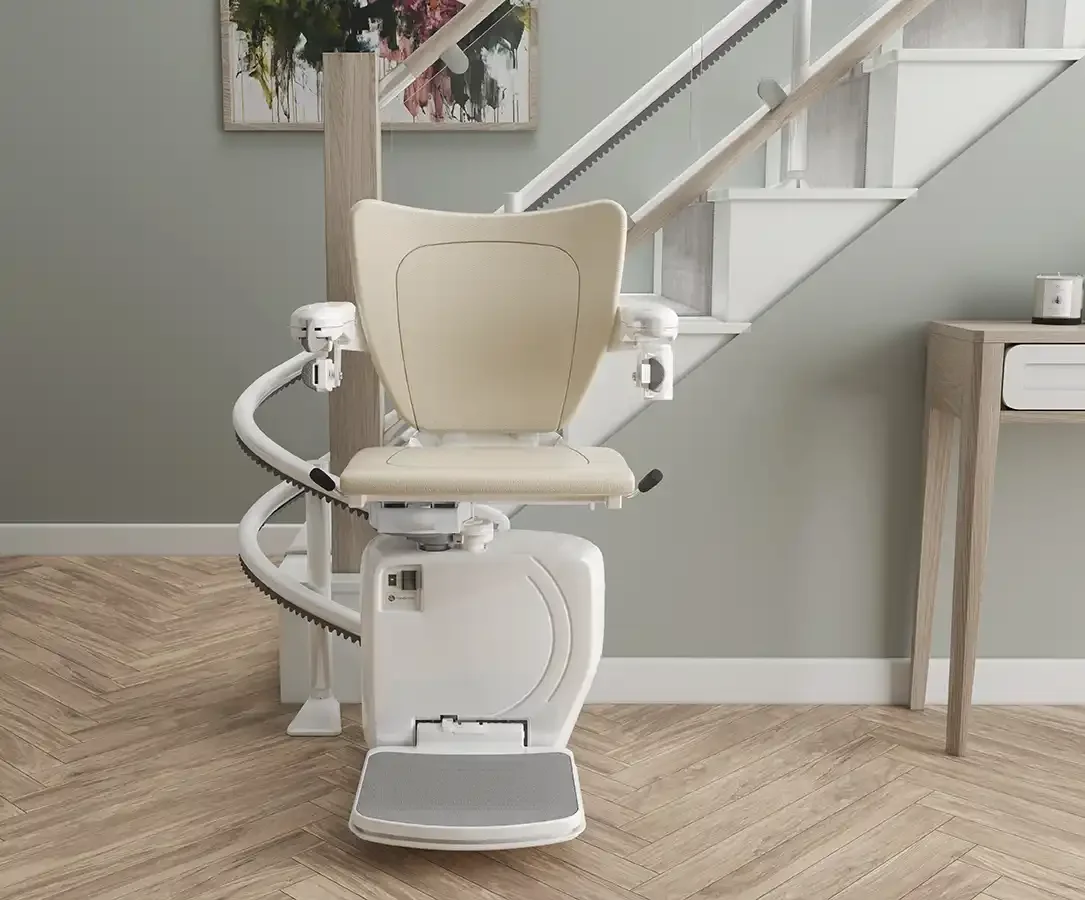

Here's the Handicare 4000 with a 180-degree parking station to allow lots of room on the stairs when no one is using the stairlift.

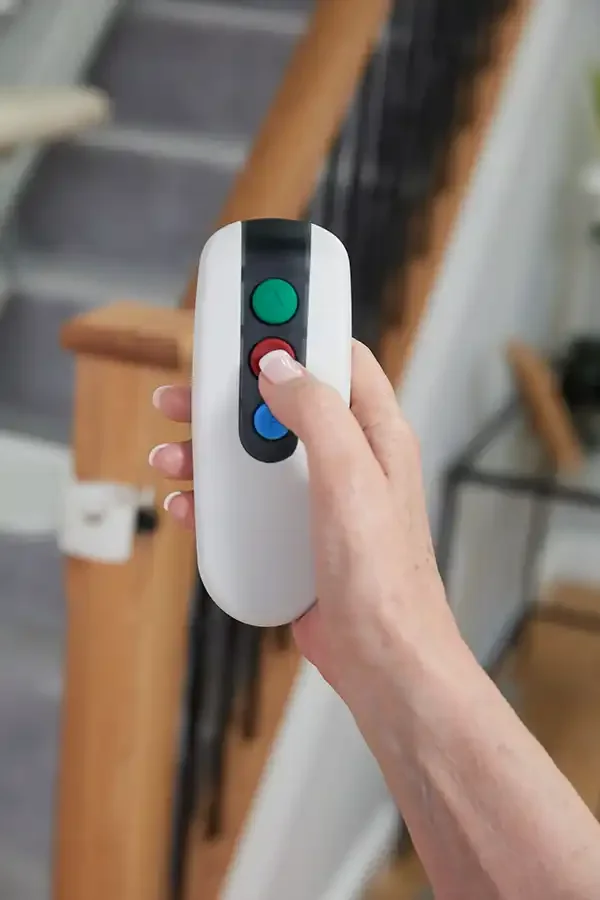

A remote control provided with your Handicare stairlift ets you call the stairlift to your landing when needed. Handy when 2 people use it.

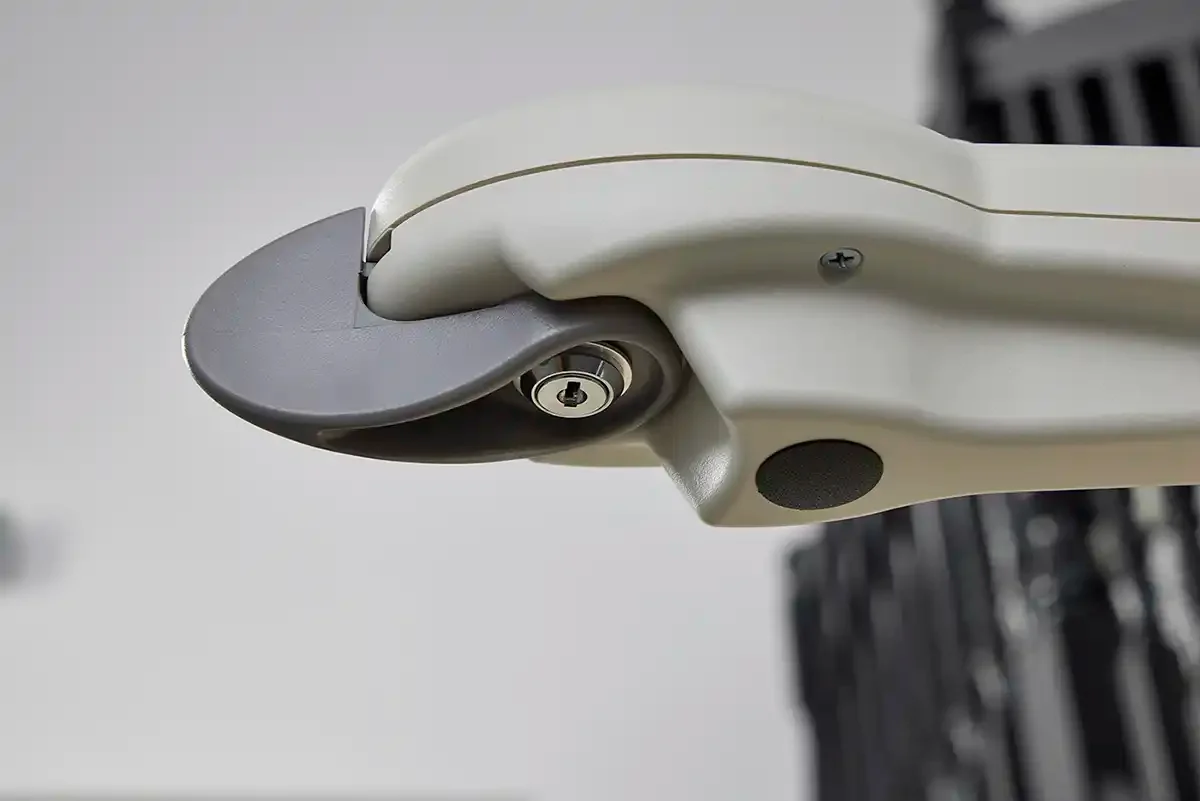

The toggle control on the Handicare 4000 armrest is easy to press for up and down.
A power footrest can be added to the Handicare 4000. No need to bend down to fold or unfold the footrest when the chair is parked.

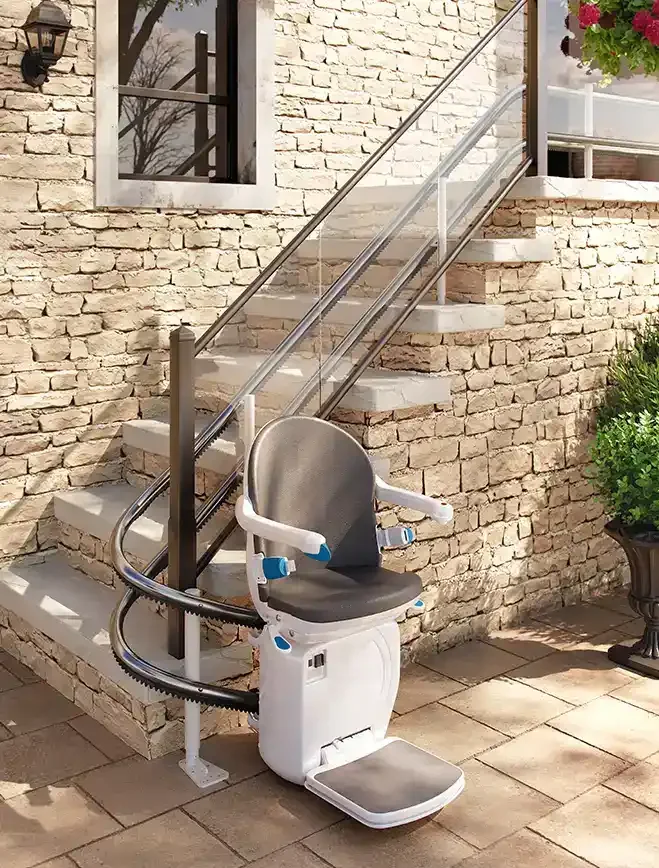

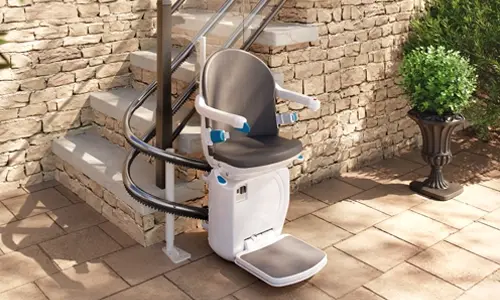

The Handicare 4000 can be installed outdoors in some climates with the outdoor package that includes stainless steel stanchions and nickel-plated rails.

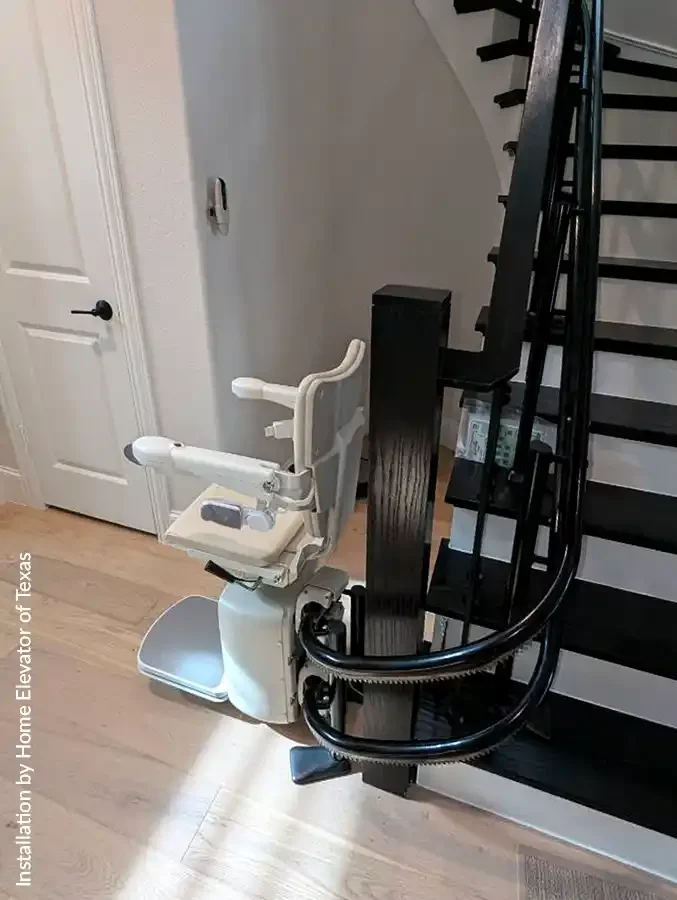

A handicare 4000 installed by Home Elevator of Texas featuring a black rail to match this home decor.

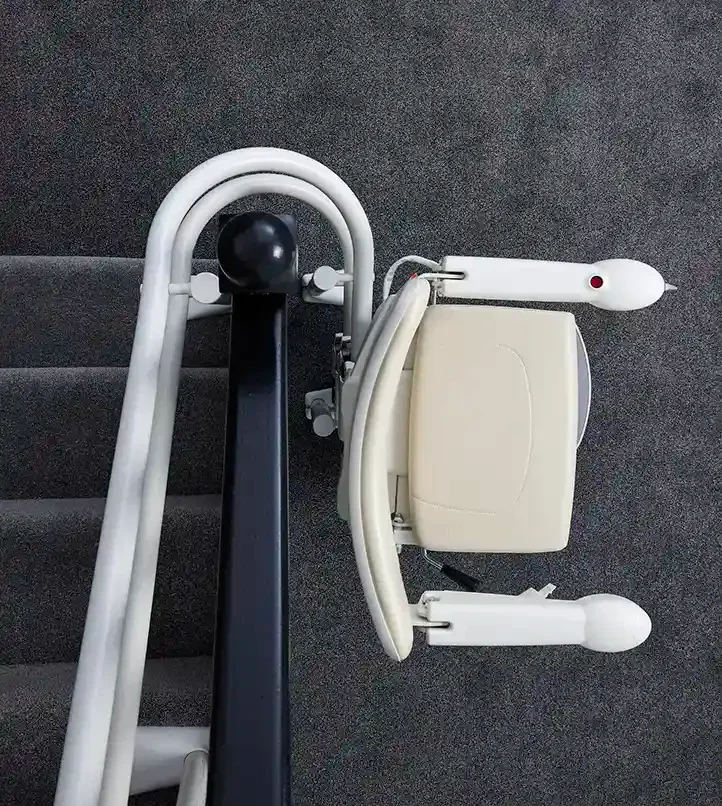

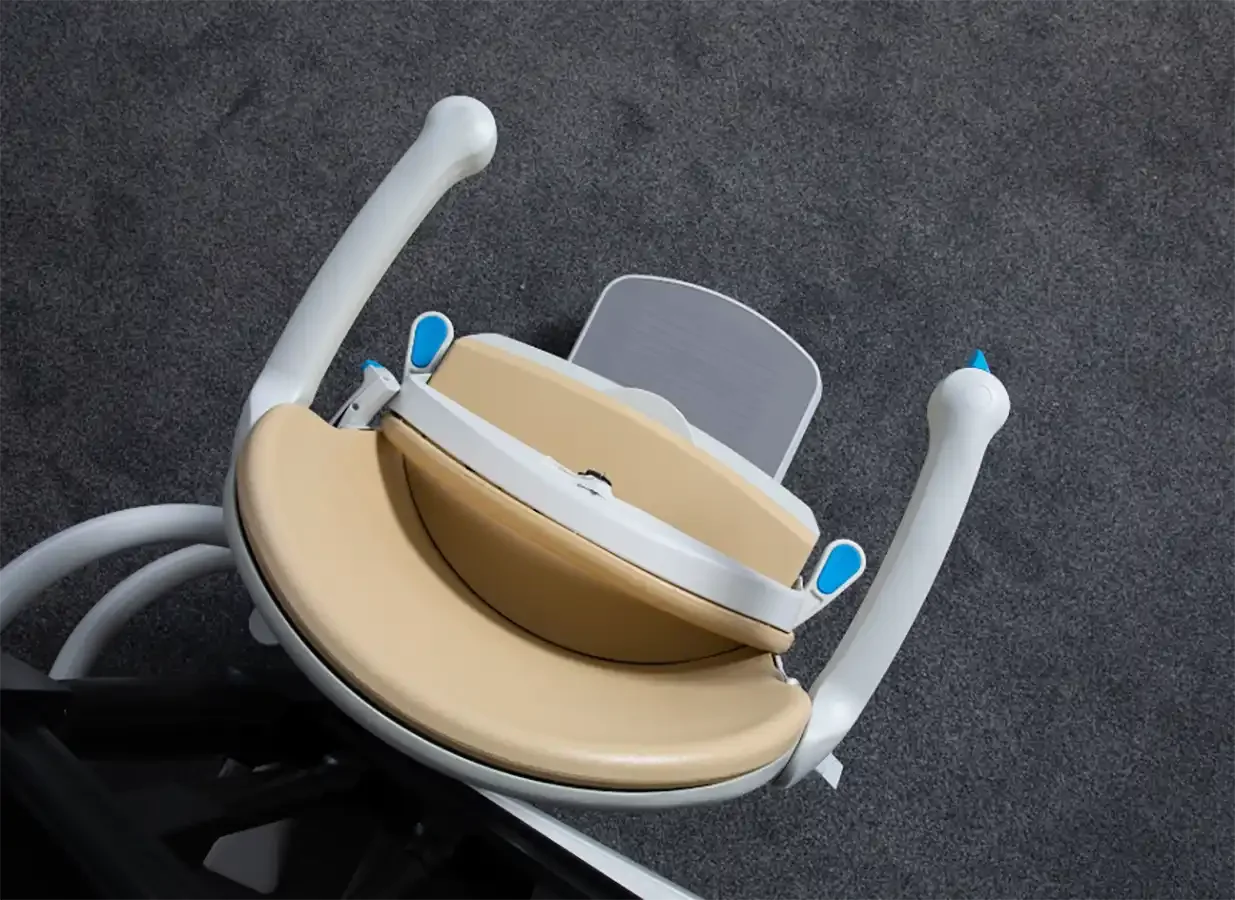

Top down view of the Handicare 4000 showing how the seat folds up.
