Stairfriend 23 Stairlift

Twin-rail, custom curved, easy-to-use

The Stairfriend 23 curved stairlift features a custom fabricated twin rail system for a great fit on your staircase. Configure the Stairfriend 23 for turns, curves and intermediate landings, as well as out-of-the-way parking. The Stairfriend 23 is known for its reliability and no-nonsense simplicity. Choose from two seats, with a 300 lb standard capacity and option for up to a 350 lb.

FIND A DEALER

Photo measuring tool to ensure exact specifications of staircase and its landing.

Custom for your stairs – fast

Fit that’s always spot-on

Using our proprietary PS4D photo-measuring system, your local dealer precisely measures your staircase for custom fit. The travel rail is fabricated in just a few weeks in our factory, and installation takes not more than one day. The stairlift installs directly onto your stairs, maximizing the clearance on the stairs to pass by when the stairlift is not in use.

LEARN MORE

Stairfriend 23 Stairlift

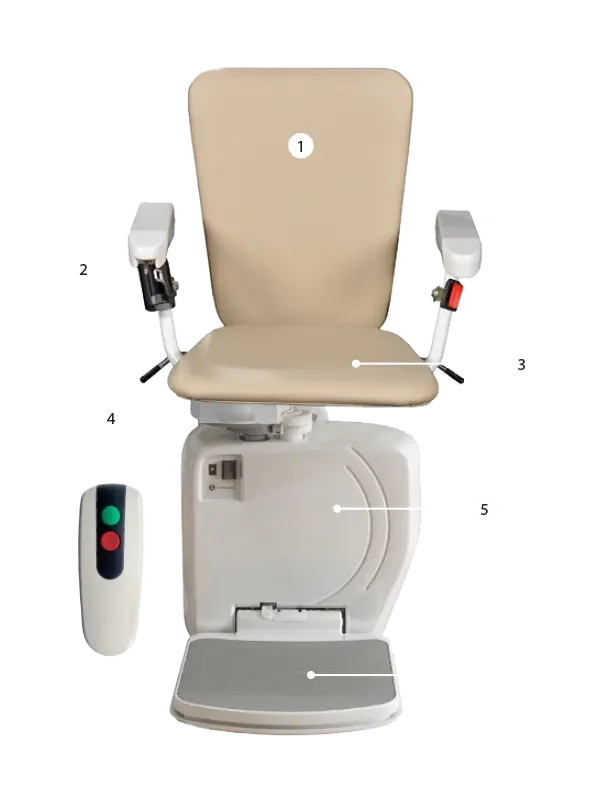

Standard features and finish

The Stairfriend 23 features a light gray rail with beige synthetic leather seat
The armrest includes a toggle control to move the lift
When not in use, the seat, footrest and arms fold up to keep the lift compact
Comes with two radio frequency remote controls to call the lift at the top of bottom of the staircase as needed
A reliable, smooth ride is the hallmark of the Stairfriend 23 with its rack and pinion drive system. It’s battery powered with automatic charging stations at the top and bottom of the rail. During a power failure, the stairlift will provide several up and down trips

Additional Options

Parking

Add 90- or 180-degree parking so your chair travels around the stair railing at the top, bottom or both landings. This provides a more spacious and safe area to get on and off the lift.

Overrun

Add a top or bottom overrun to have the stairlift travel farther away from the landings for a more convenient on/off area.

Key

The standard lift includes keyed opportunity for security, but you can also order it as keyless.

Emergency Stop

Add an emergency stop bottom on the armrest (included in Quebec).

5 Point Harness

A five-point harness can be added for additional security on the chair in place of the retractable seat belt. You can upgrade to 350lb capacity.

Choice of Seat

The Stairfriend 23 offers a choice of two seat designs. The L seat is traditional look (arms width up to 21½"), whereas the V seat is more minimalist with open areas on the back and sides, which some find more comfortable due to its more spacious feel.

Choose a Seat Type

Stairfriend 23 Specifications

Applications

Residential, commercial*, indoor.

Motor

0.6 hp, 24V (DC)

Standard capacity

 300 lb (136 kg), optional 350 lb (160 kg)

Range of incline

0˚ to 56˚

Fold-up depth

16¼" (413 mm)

Fold-out depth

27" (686  mm), with offset footrest: 25¾" (660 mm), with small footrest: 25" (640 mm)

Maximum travel

84' (25.60 m)

Nominal speed

20  ft/min, (0.1  m/s), 12 ft/min (0.06 m/s) through curves

Savaria Link

Optional. Learn more.

Warranty

A 36-month warranty against defective parts is included through your local dealer.*

*Where permitted by code
**Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

Safety features

An obstacle sensor on the footrest and carriage stops the lift if it encounters an obstruction.
The seat swivels and locks for safe deboarding at the top of the stairs.
The footrest includes non-skid covering and the seat includes a retractable seat belt.
An overspeed governor ensures that the lift does not travel too fast when descending.
The stairlift includes keyed access to prevent use of the lift as needed.

*Stairlift model shown on video may vary.

Stairfriend 23 Gallery

See Stairfriend 23 stairlift installations

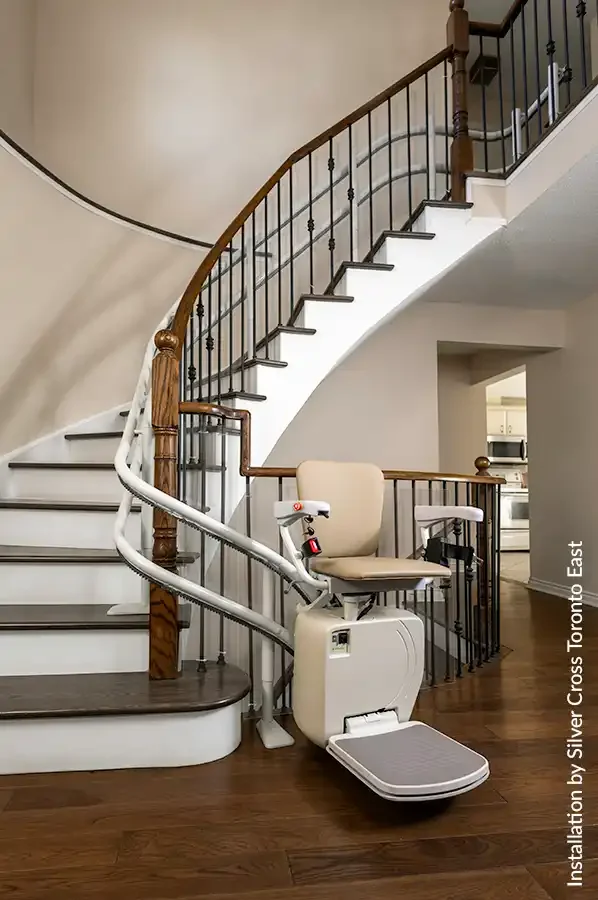

Adding parking to the bottom of this Stairfriend 23 means that the chair turns 90 degrees to keep it completely away from the stairs when it's not in use.

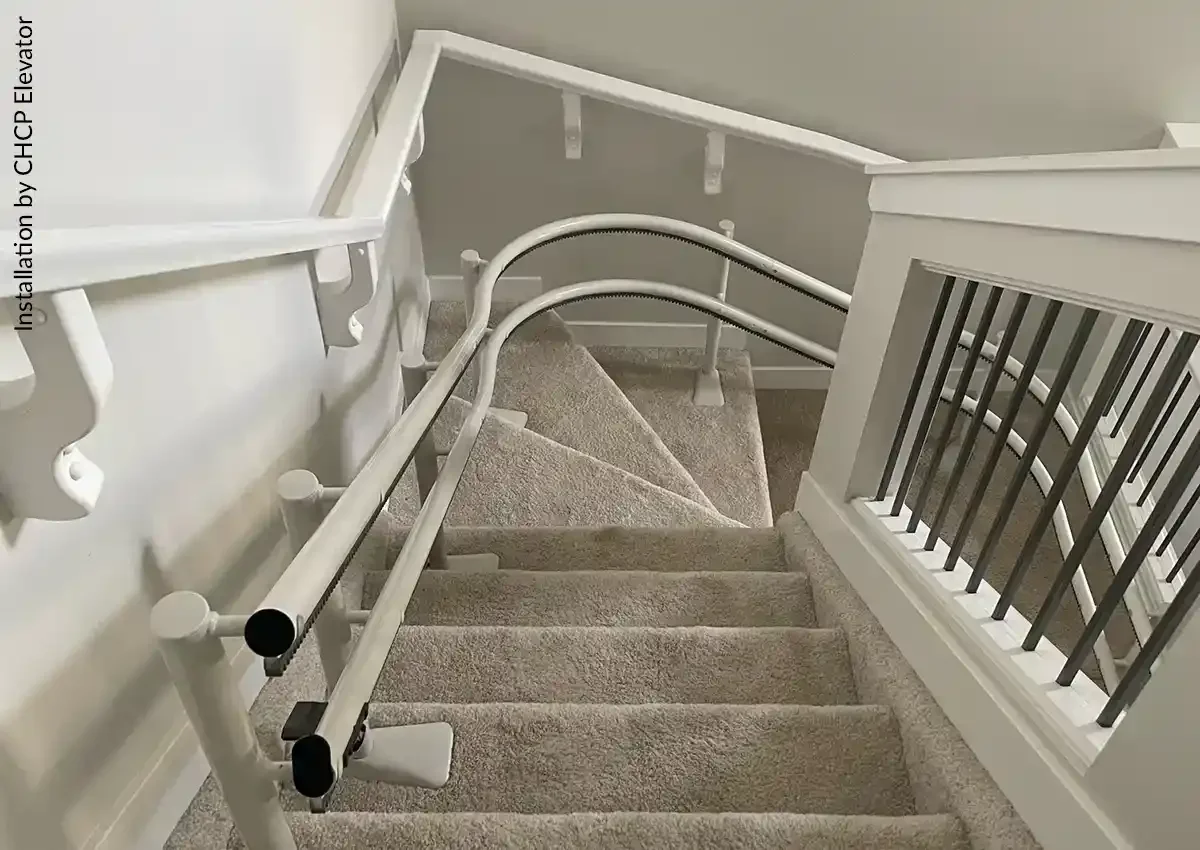

By CHCP Elevator, this installation of the Stairfriend 23 shows how the neutral twin rail can fit the staircase well.

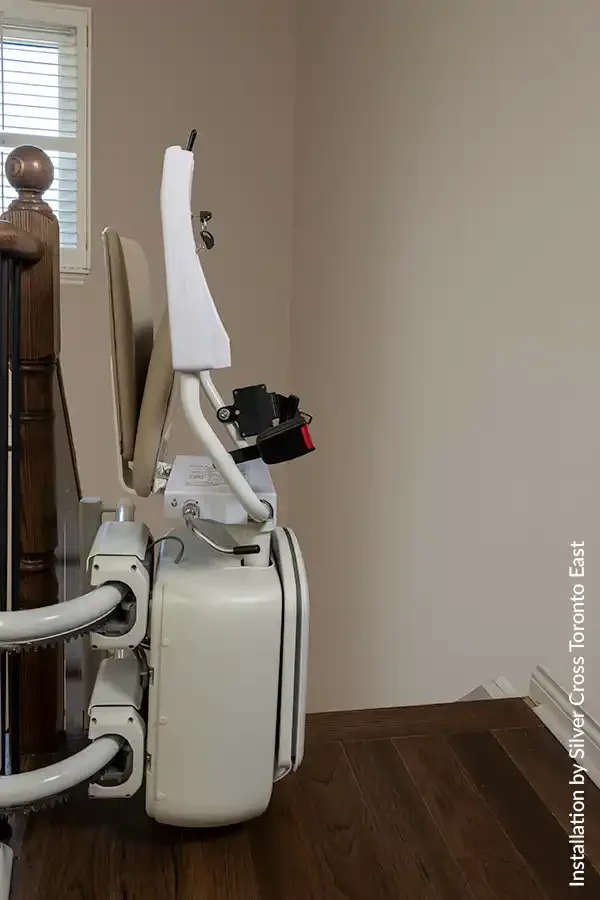

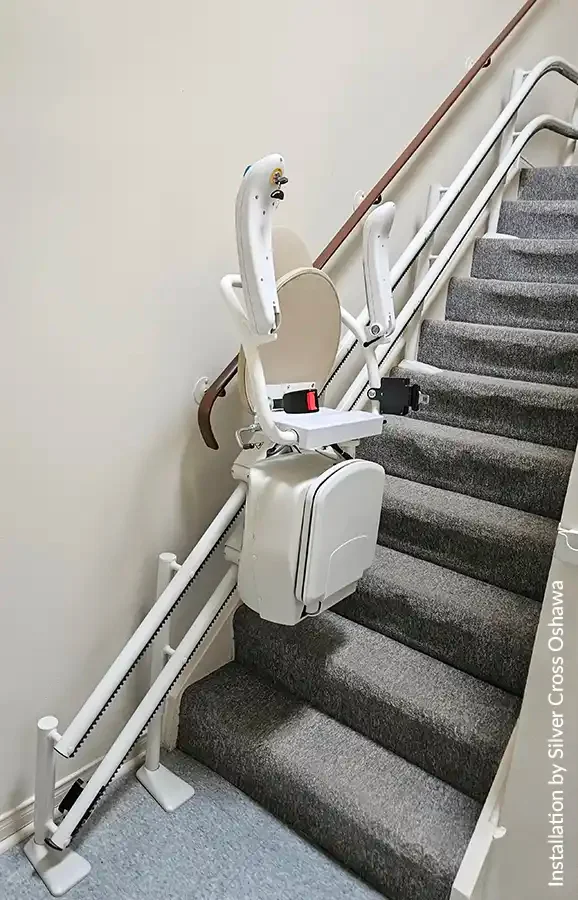

The Stairfriend 23 seat, armrests and footrest fold up compactly when not in use.

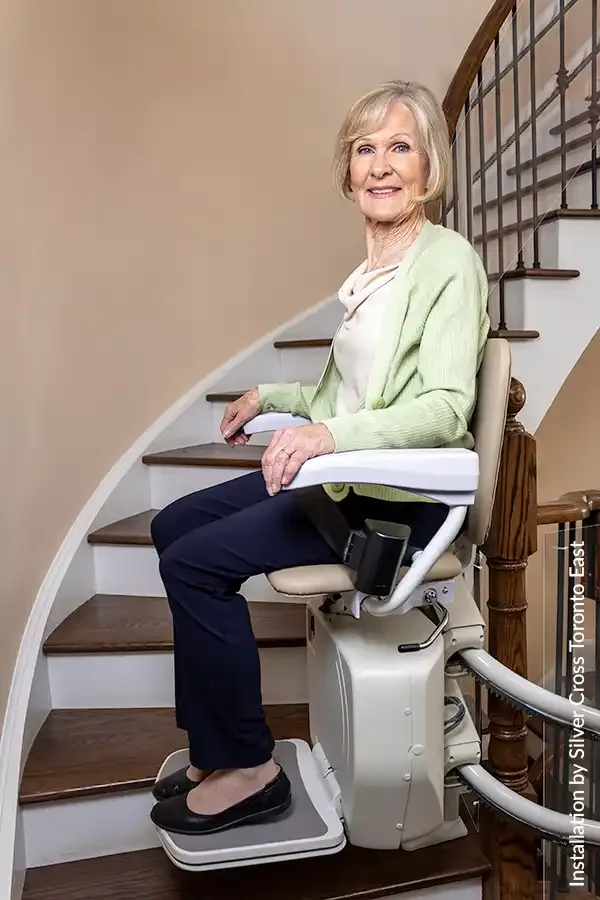

This Stairfriend 23 installed by Silver Cross Durham features the V seat that offers more space at the back of the seat which some people find more comfortable.

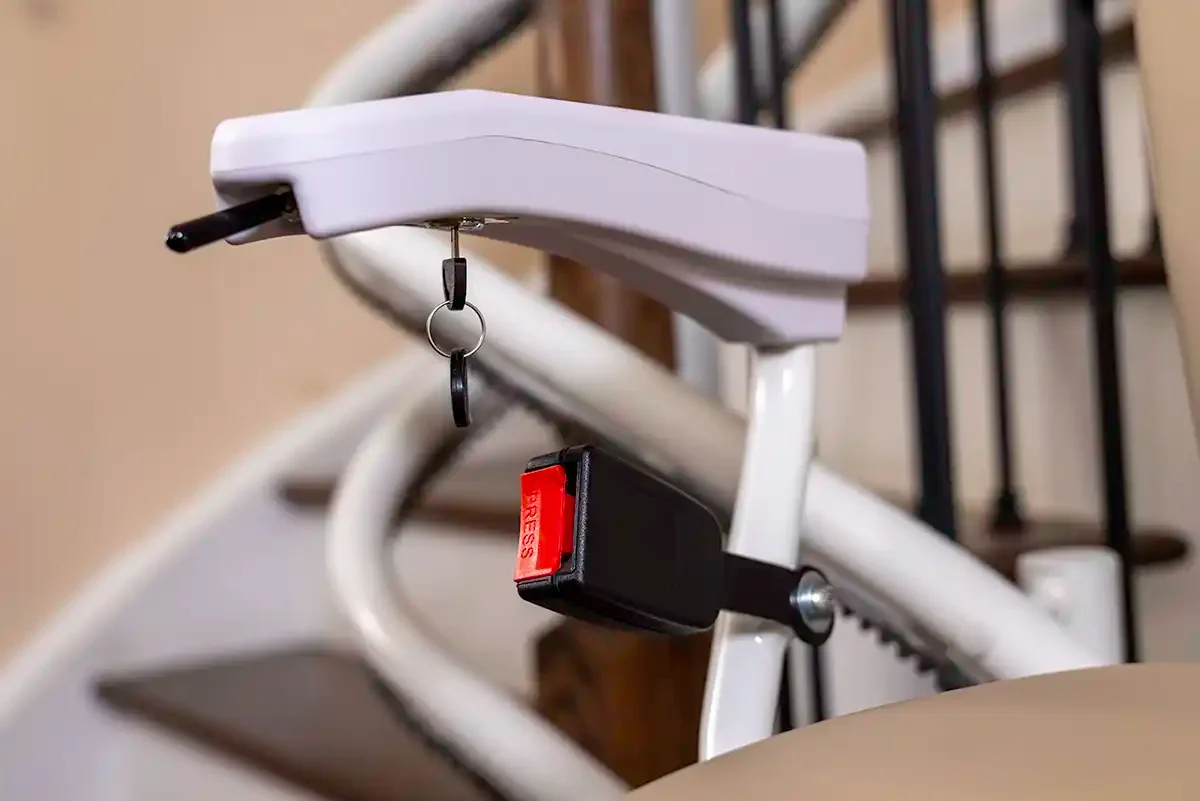

A retractable seat belt and keyed access to control usage if you require it, are just two safety features of the Stairfriend 23 stairlift.

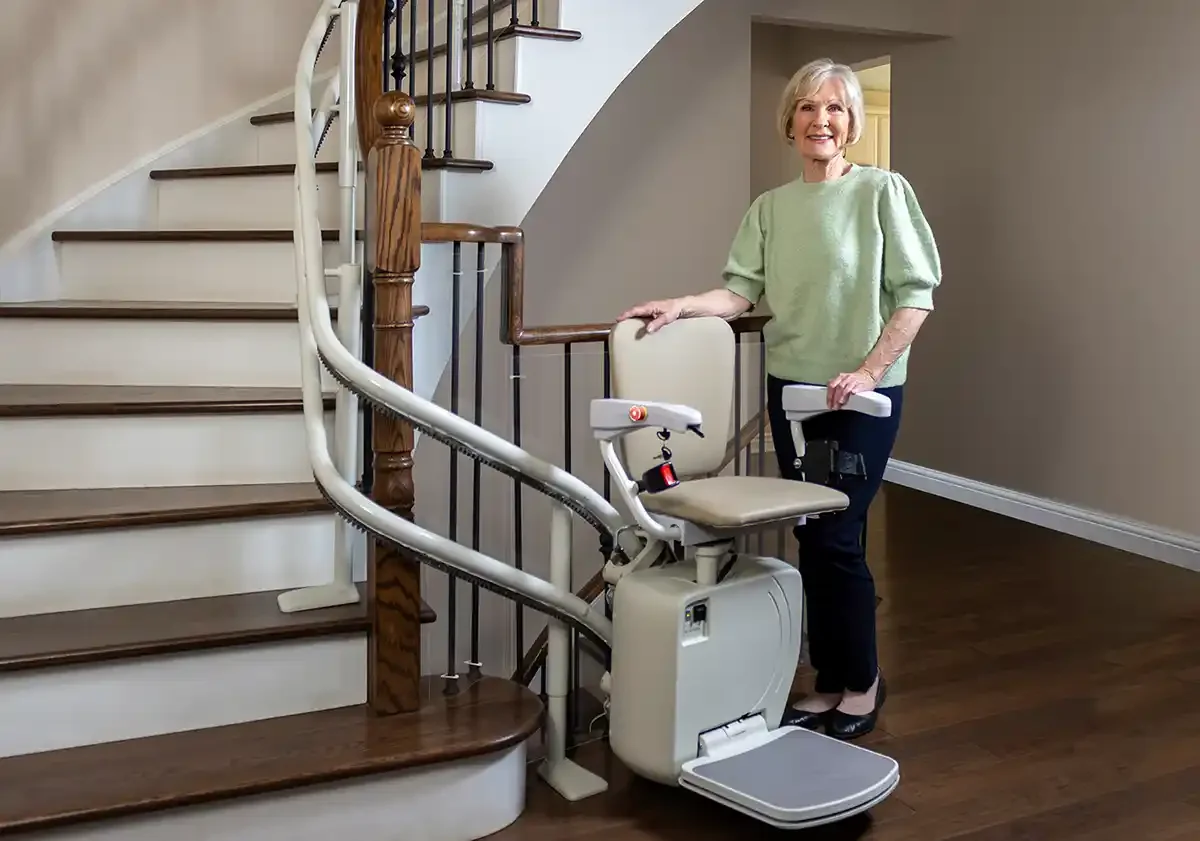

The Stairfriend 23 curved stairlift can be installed in less than a day. For many people it's a game-changer to eliminate the worries about falling on the stairs.

This curved staircases can be especially challenging with aging. The Stairfriend 23 lets you glide up and down, worry free.

The Stairfriend 23 curved stairlift is custom fabricated in Ontario to fit well along staircases with turns and curves.

Note that product galleries may show products, configurations, or product features that are not available in your region.
