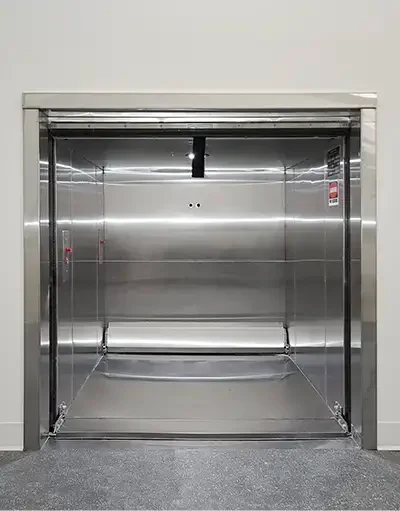

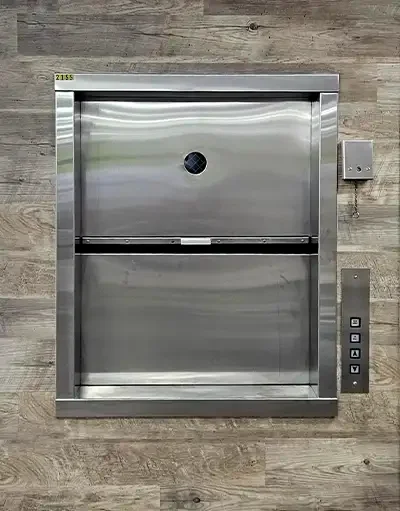

Explore our Matot by Savaria vertical material handling solutions
Savaria M-1504 Material Lift
A workhorse for loads up to 1000 lb
The M-1504 is a commercial freight lift ideal for restaurants, banquet halls, retail stores, veterinary clinics and small industrial businesses. A perfect package of simplicity, handy features and the muscle you need to keep materials moving.
Why choose the M-1504?
Durability when it matters mostRobustly constructed with 60" or 80" stainless steel 5WL side guards and diamond plate aluminum flooring, the M-1504 is a true workhorse vertical material handling solution. This unit is designed for use inside a shaftway, and can be ordered in a choice of standard sized platforms or custom sized.
Ideal for moving freight such as boxes, wheeled carts, kegs and more.

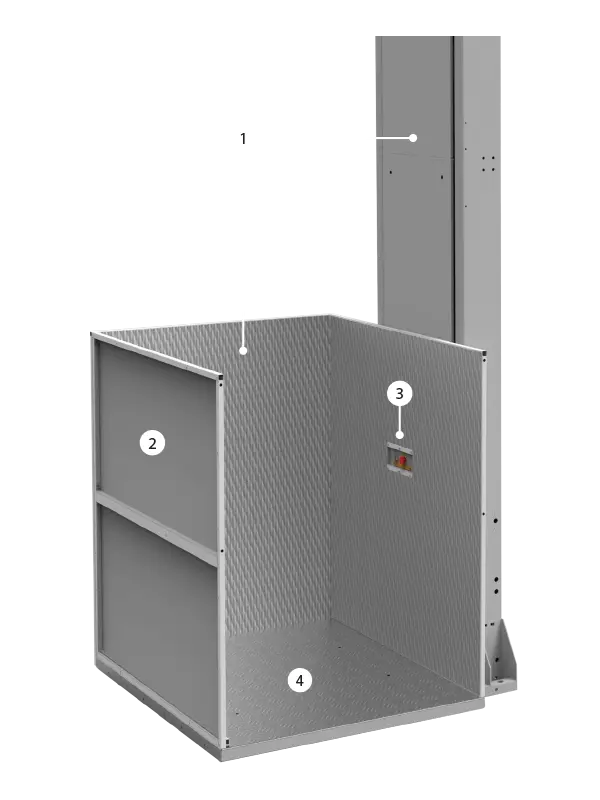

M-1504 Material Lift
Standard package included
- Gray powder coat finish on the platform, frame and tower
- The M-1504 comes standard with 60" or 80" stainless steel 5WL side guard panels
- Standard constant-pressure (press-and-hold) operation
- Diamond plate aluminum flooring
Upgrade Your M-1504 Material Lift
Check out the optional features available
Fixed access ramp
Outdoor package
24V battery backup
Remote controller/pump box
Automatic operation
(code permitting)
What do you need to move?
Learn more about specifying dumbwaiters, material lifts and vertical reciprocating conveyors (VRCs) with our guide to vertical material handling.
Luxury retailer keeps things moving
Find out how Luisaviaroma NYC enhances the shopping experience with Savaria Orion and Matot VRC.
Savaria M-1504 Specifications
Applications
Commercial, indoor (outdoor package available)
Drive/motor
2:1 chain hydraulic, 3 HP, gear-type motor for 110V
Load capacity
1000 lb (454 kg)
Levels serviced
2 (standard); 3, 4 (B20.1 code only)
Maximum travel distance
23 ft (7 m) for B20.1, and 200" (5080 mm) for A17.1 code
Nominal speed
18 ft/min (0.09 m/s)
Noise level
72.9 dBA (up direction); 50.0 dBA (down direction)
Daily cycle
Normal 30, heavy 75, excessive 100. 12 maximum starts in 1 hour on standard installation
Power supply
120 VAC, 30 A, 60 Hz, single phase
Cab sizes
36" x 54" (914 mm x 1372 mm)
42" x 60" (1067 mm x 1524 mm)
48" x 60" (1219 mm x 1524 mm)
Custom cab sizes from 24" x 46" (610 mm x 1168 mm) up to 48" x 60" (1219 mm x 1524 mm)
Pit depth requirement
3" (76 mm); 8" (203 mm) with habitable space underneath
Cab walls (height)
Standard 60'' (1524 mm), optional 80'' (2032 mm)
Cab access
Enter/exit same side (platform Type 1L and 1R), front/rear access (platform Type 2)
Landing entrances
Fire-rated ProDoor
Warranty
A 36-month warranty against defective parts is included through your local dealer.*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Savaria M-1504 Gallery
Explore images of our Savaria M-1504 in a variety of applications

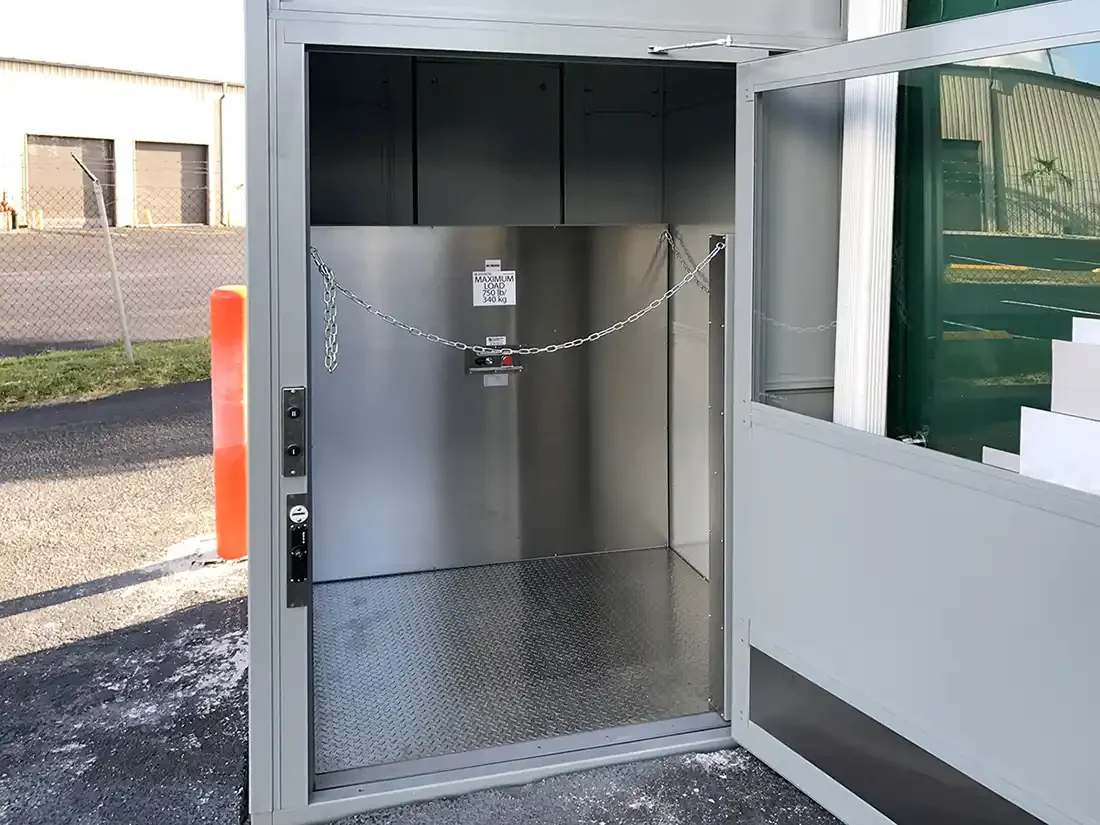

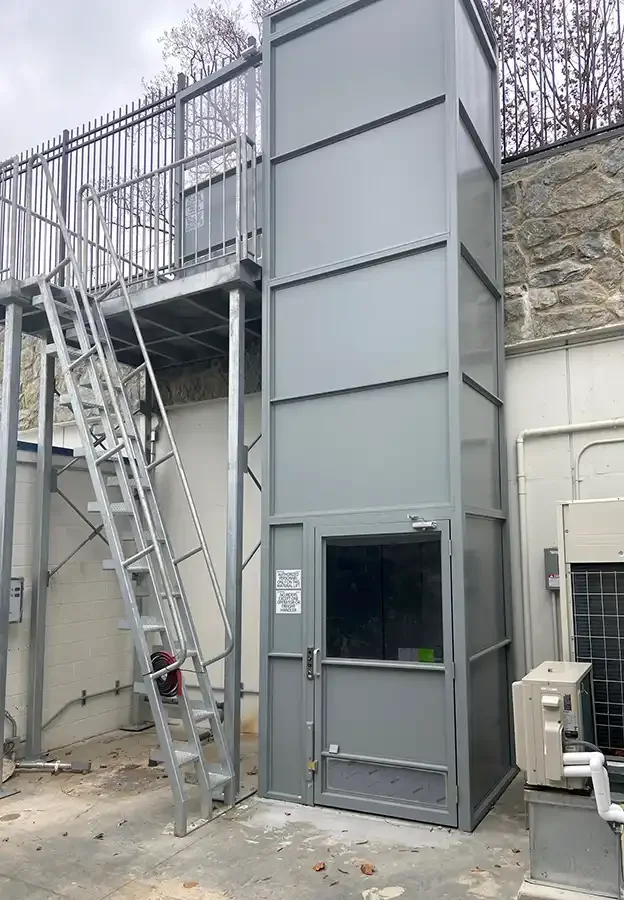

The Savaria M-1504 can travel up to 23 feet with up to four stops.
The Savaria M-1504 commercial freight lift is ideal for restaurants, retail stores and small industrial businesses.
The Savaria M-1504 carries freight up to 1000 lb.

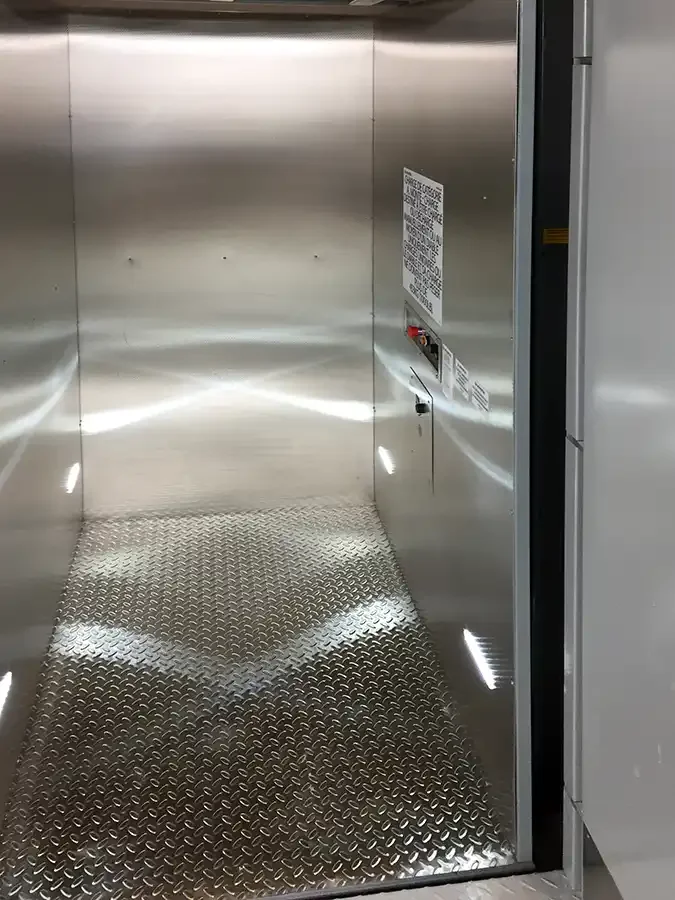

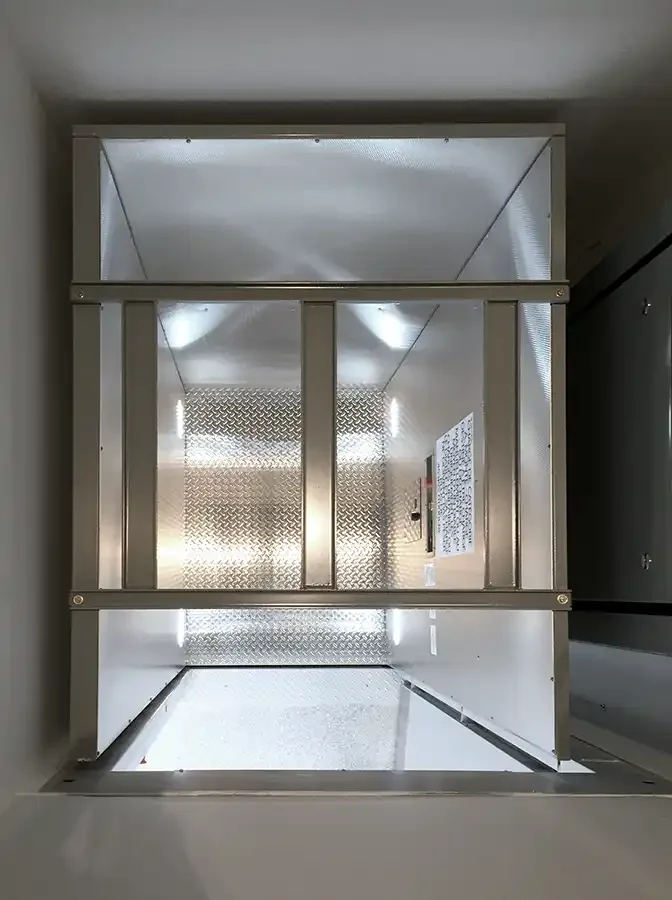

The Savaria M-1504 material lift features durable stainless steel side guards, and diamond plate aluminum flooring.
The standard finish on the M-1504 material lift is grey electrostatic powder coat paint on frame and tower.
The reliable hydraulic drive for the M1-1504 material lift is housed in the support tower, with no machine room required.

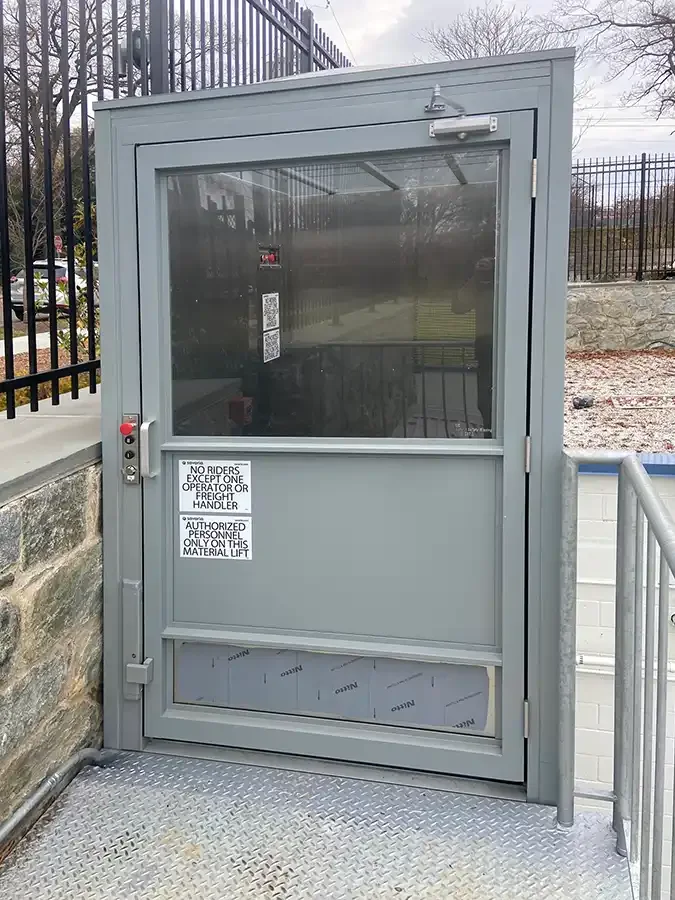

The Savaria M-1504 material lift is designed for hoistway or enclosure applications and can be configured for same side or straight-through access.
