Matot Material Lifts by Savaria
Power and dependability for loads up to 2500 lb
For commercial and light industrial applications with larger cargo requirements, Matot material lifts by Savaria are famous throughout the industry for robust reliability and long service life. Engineered to meet the workloads of the most demanding continuous use applications with minimal maintenance, they’re a perfect choice when the materials just have to keep moving.
Why choose a Matot material lift?

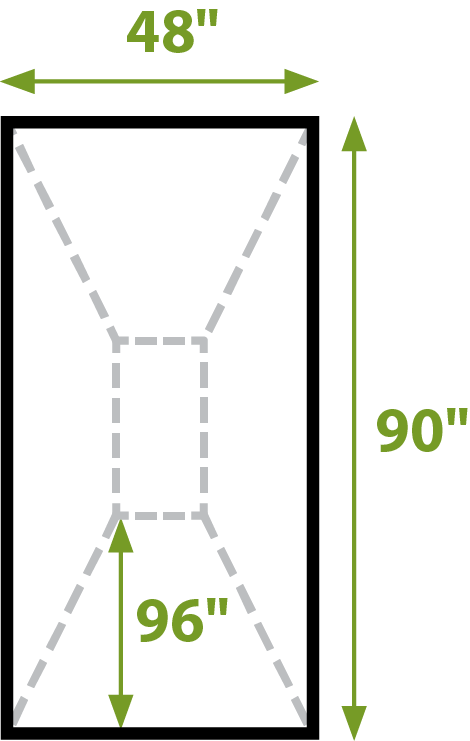

Let us do the heavy liftingWhen you need a serious workhorse for transporting loads up to 2500 lb (1134 kg), a Matot material lift by Savaria is the answer. These versatile machines are ideal when the dimensions requirements or performance specifications for a dumbwaiter are exceeded. These units are almost always floor loading and sizes are restricted to a maximum of 48" (1220 mm) wide, a maximum of 96” (2439 mm) deep, and a maximum of 90" (2286 mm) high.
Offering capacities between 750-2500 lb (340-1134 kg), with code compliance to the minimum of 50 lb/sq ft of platform (244 kg/sq m) under ASME 17.1 and CSA B-44
Many car/platform sizes
Pick the best dimensions for the goods you need to move and the available space.
| Width | Depth | Height |
|---|---|---|
| 36" (914 mm) | 48" (1220 mm) | 60" (1524 mm) |
| 48" (1220 mm) | 48" (1220 mm) | 60" (1524 mm) |
| 48" (1220 mm) | 60" (1524 mm) | 72" (1829 mm) |
| 48" (1220 mm) | 72" (1829 mm) | 72" (1829 mm) |
| 48" (1220 mm) | 84" (2134 mm) | 84" (2134 mm) |
| 48" (1220 mm) | 48" (1220 mm) | 96" (2439 mm) |
| 60" (1524 mm) | 60" (1524 mm) | 60" (1524 mm) |
| 60" (1524 mm) | 72" (1829 mm) | 72" (1829 mm) |
| 60" (1524 mm) | 84" (2134 mm) | 84" (2134 mm) |
| 60" (1524 mm) | 96" (2439 mm) | 96" (2439 mm) |
Tailor your material lift to your project needs
Matot material lifts are flexible by design
Higher speeds and lifting distances
Available upon request
Double-drum drive
Requires less shaft space; economical
Precision drive
Variable frequency and vector-based drive systems for incredibly smooth travel and ultra precise stopping and starting
Security Systems
Key lock, keypads, interfaces to external systems
Your vertical material handling resource
Our ultimate guide to vertical material handling is full of fast-facts for specifying dumbwaiters, material lifts and vertical reciprocating conveyors (VRCs).
Maximizing expensive space
Learn out how Luisaviaroma NYC maximizes their most expensive retail space thanks to a Matot VRC.
Matot Material Lift Specifications
Applications
Commercial, indoor
Drive/motor
Winding drum; geared traction for higher speeds and longer travel distances
Load capacity
Up to 2500 lb (1134 kg)
Levels serviced
2 stops up to 9 stops
Maximum travel distance
From 18 inches (457 mm) minimum to 270 feet (82.3 m)
Nominal speed
40 ft/min (0.25 m/s); optional up to 200 ft/min (1.02 m/s)
Doors
Manually operated vertical bi-parting, slide up, and swing type UL fire rated entrances
Power operated doors and gates
Can be motorized so they open and close automatically with the push of a button
Loading configurations
Single side, opposite sides; floor loading or counter loading
Pit depth requirement
16” (406 mm) for winding drum; 24” (610 mm) for traction machines
Warranty
12-month standard, with optional 5-year extended warranty.*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Matot Material Lift Gallery
Explore images of our material lifts in a variety of applications

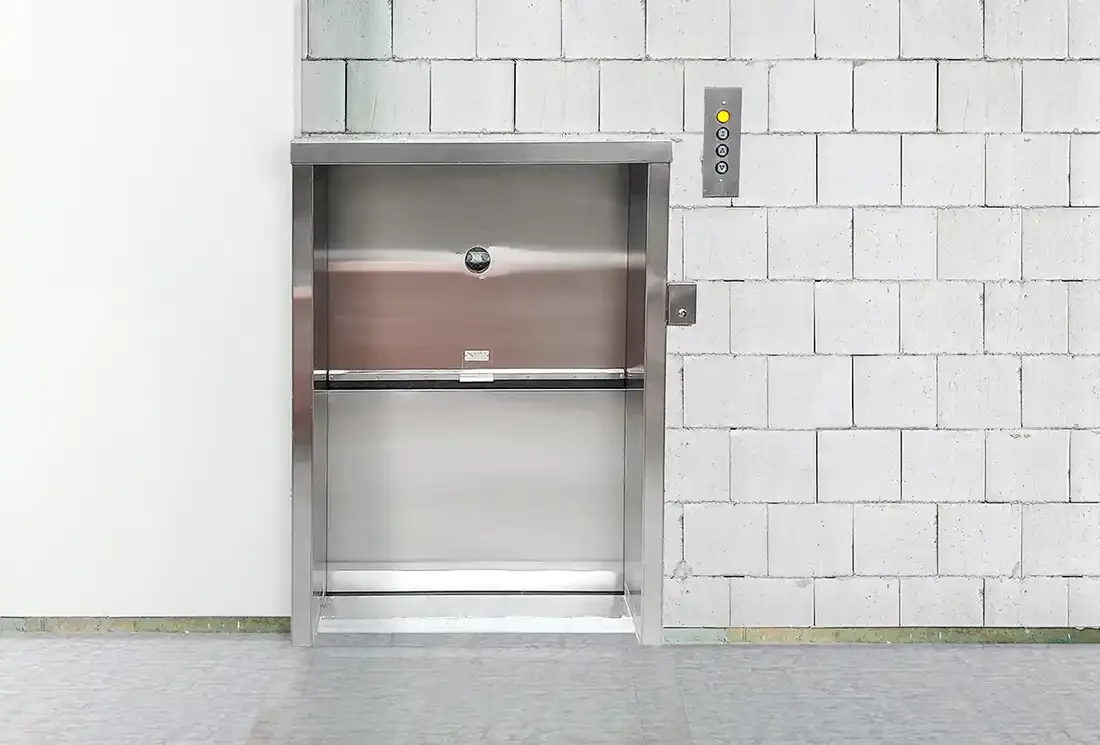

A Matot material lift by Savaria loads up to 2500 lb. They are ideal when the dimensions requirements or performance specifications for a dumbwaiter are exceeded.

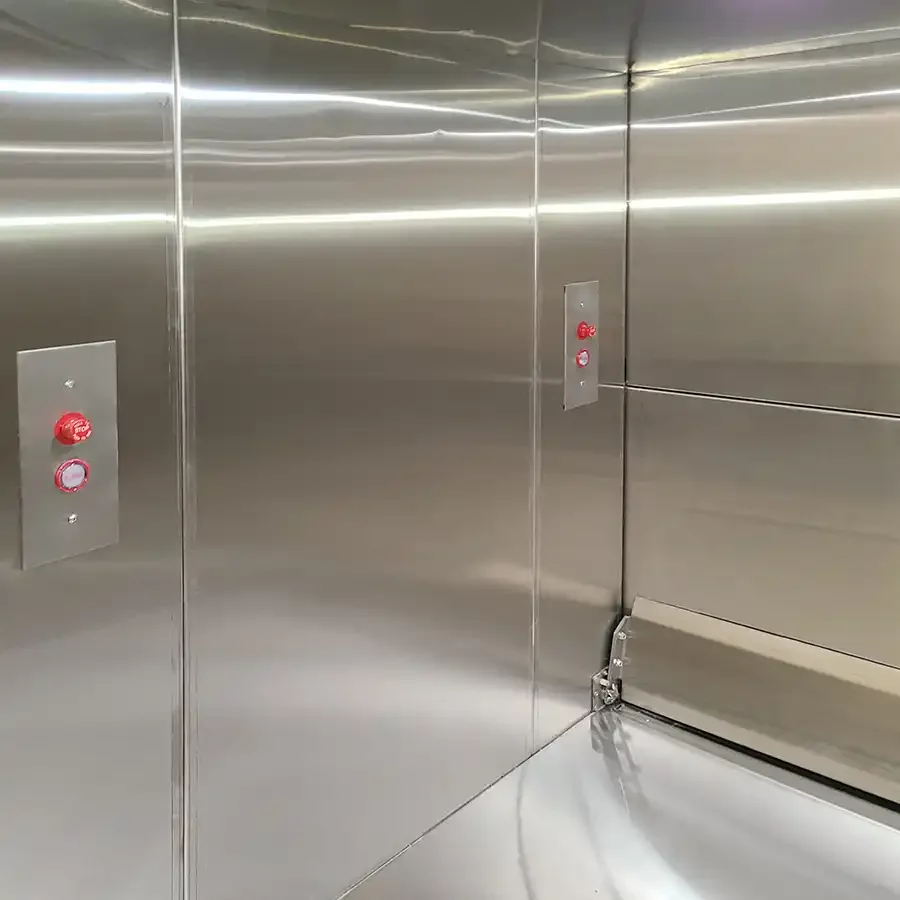

Our material lifts feature commercial-grade construction throughout, including architectural-grade stainless steel finishes and elevator-type precision guide rails.

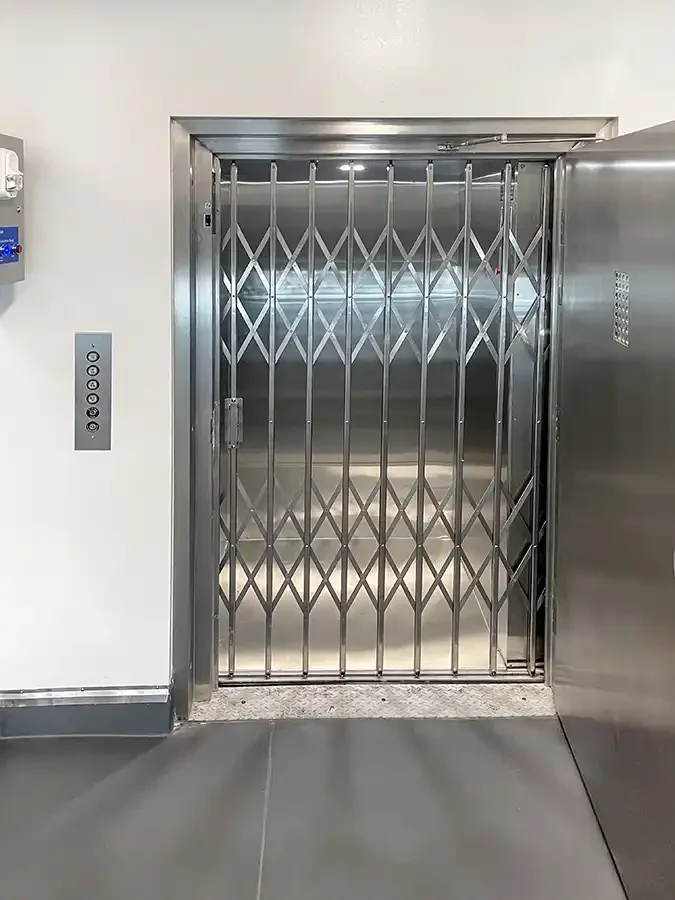

This Matot material lift in Texas is equipped for 1200 lbs capacity, with a 40” wide x 40” deep x 72” high unit, a stainless-steel collapsible gate, and a single swing stainless steel door.

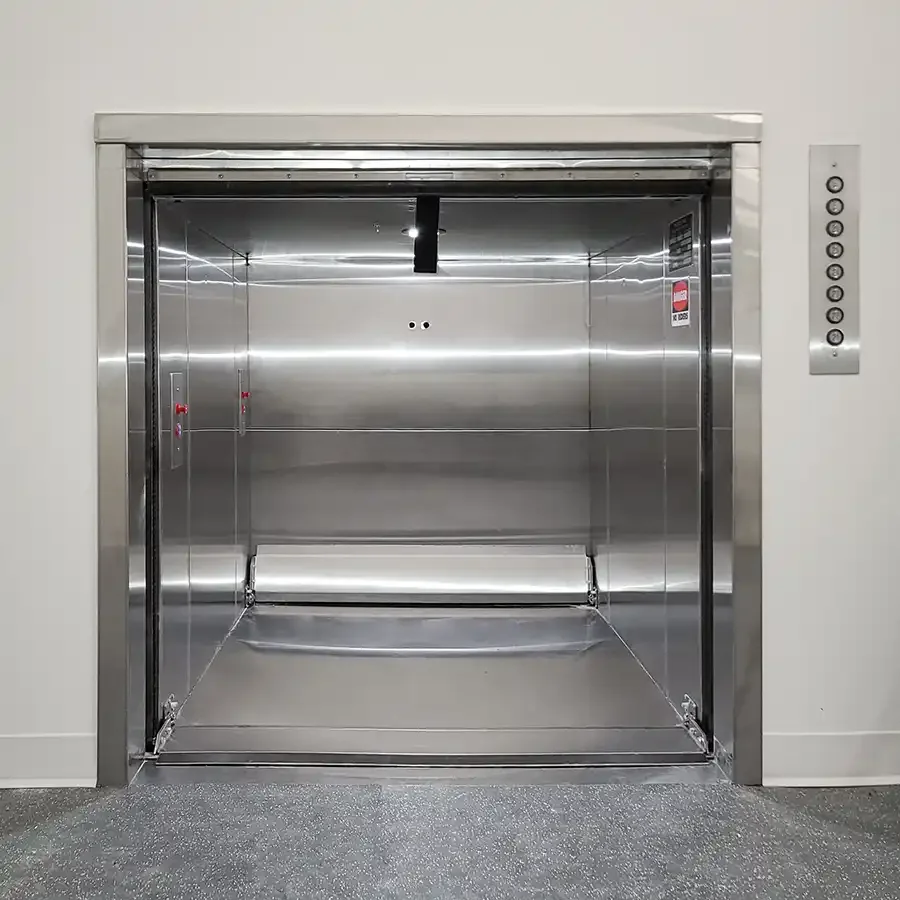

This floor-loading material lift in Chicago features a traction machine drive for additional speed over six high-rise stops.

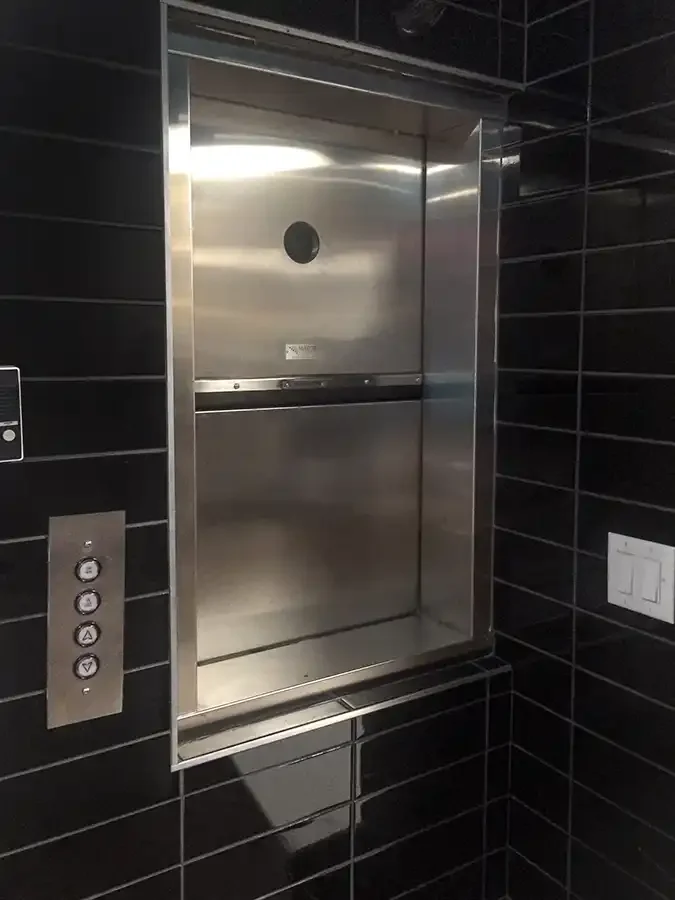

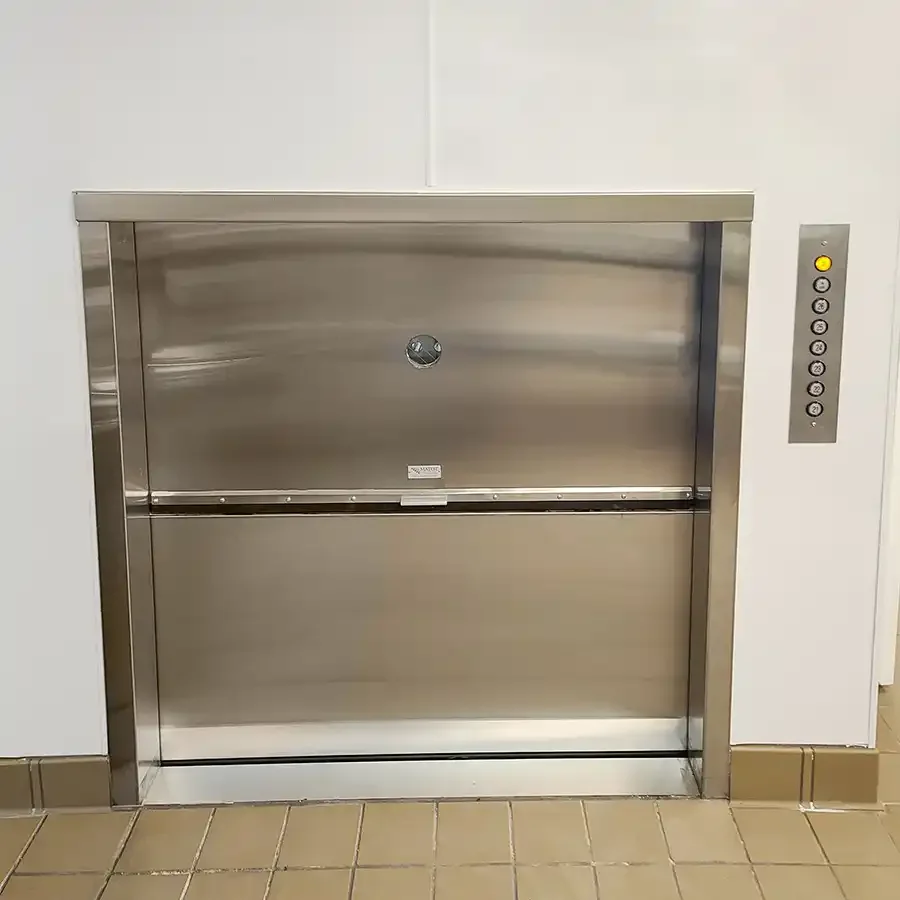

Although most material lifts are floor-loading, we also offer counter-loading models that offer a higher capacity than a dumbwaiter.

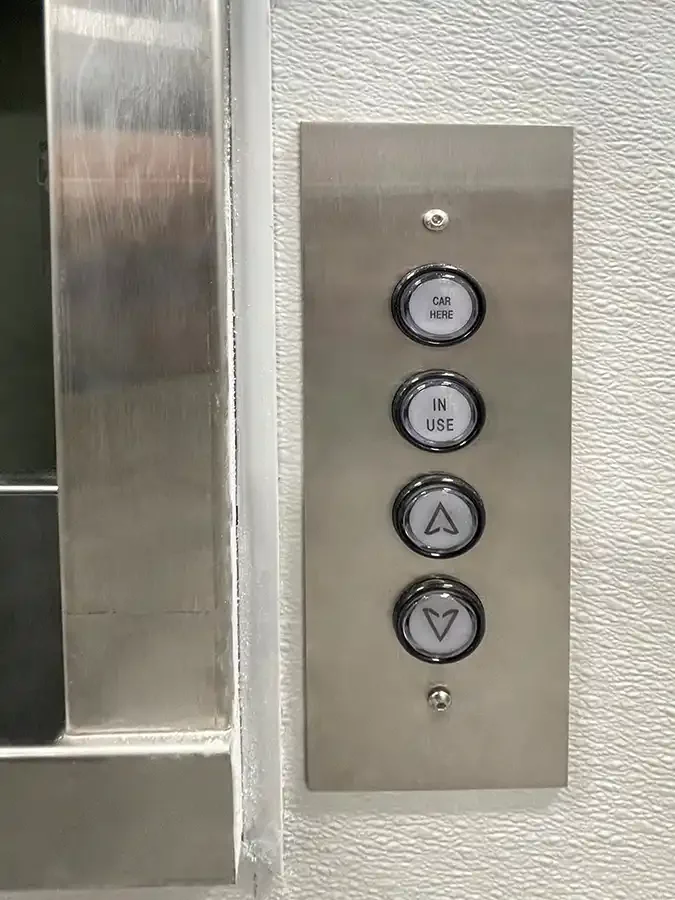

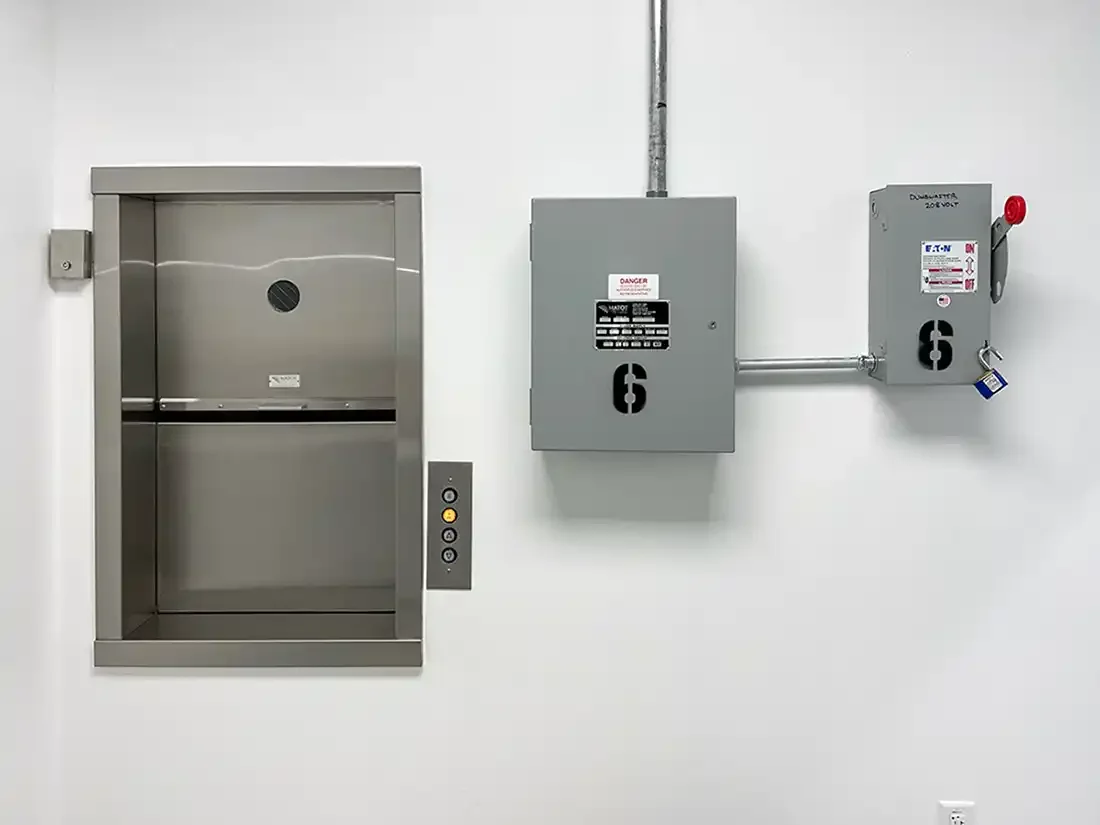

Our Matot material lifts come with architectural-grade stainless steel finishes, UL listed door locks, and UL approved microprocessor control systems.
Our Matot material lifts can travel anywhere from 18 inches (457 mm) minimum to 270 feet (82.3 metres), and from two stops up to nine stops.
For commercial and light industrial applications with larger cargo requirements, Matot material lifts by Savaria are famous throughout the industry for robust reliability and long service life.
Take our vertical material handling lunch and learn
Book your in-person or online presentation of Vertical Material Handling Systems & Methods (AIASAV40x), our AIA-approved continuing education course.
