Telecab Through-Floor Lift
Get a home elevator feel, save space
The Savaria Telecab through-the-floor accessibility lift provides two-stop service in your home without the need to build an elevator hoistway. Based on the drive system of the Savaria hydraulic wheelchair lift, the Telecab is reliable and strong. If you use a mobility device, including a wheelchair, the Telecab lift provides easy access for two levels of your home.
Why choose a Savaria Telecab lift
Ideal in-home lift for wheelchair usersThe Savaria Telecab accommodates wheelchairs, rollators and walkers with its 500 lb capacity. Choose up to a 36" by 59" cab size for ample interior space, as well as an optional second door for easy straight-through access.
The Telecab is installed onto a support wall and travels through a simple floor cut-out that is capped shut when the lift descends. The lift features constant pressure operation also known as “push-to-run” buttons to service two stops.
Telecab Through-Floor Lift
Standard finish

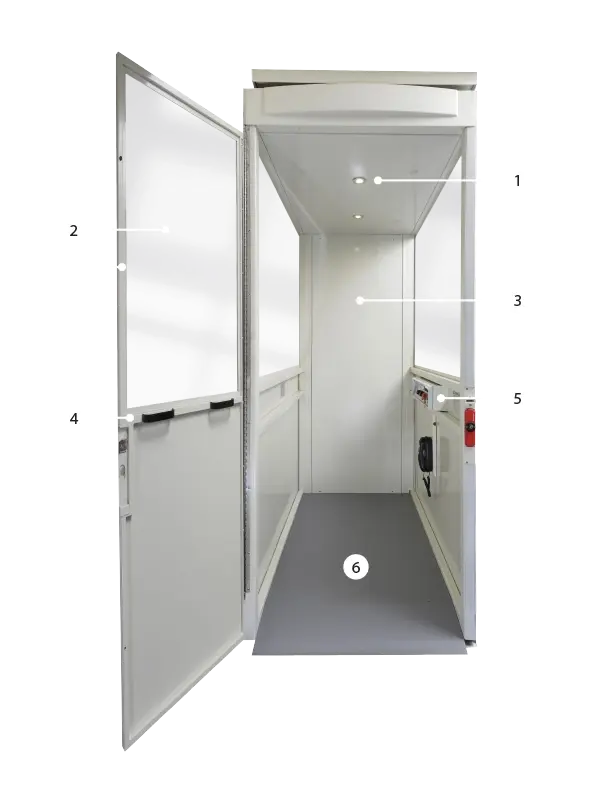

The Telecab includes many features well-suited to those who use mobility equipment or who are unsteady on their feet.
- Automatic overhead lighting with two fixtures
- A full-sized cab door with clear (or optional bronze-tinted) acrylic window panels provides safety with visibility at the same time
- White powder-coated finish
- Grip handles to provide more security
- Push-to-run buttons, along with an emergency stop, give the user full control of the lift movement at all times. The control panel is located for easy reach if seated in a mobility device
- Non-skid cab flooring
Other Options
Optional Size
The standard 30" by 46" cab can be upgraded to one of four optional sizes to better suit your mobility device needs.
Automatic door operator
You can also add an automatic door operator, or simple hydraulic door closer, rather than the manual door.
Doors & configurations
Add a second door either for straight-through or 90-degree access. The door can be ordered to hinge left- or right-sided at time of ordering.
Call Station
A call station can be added for easier summoning of the lift from outside the cab.
Battery
You can also opt for a UPS battery back-up system that provides power operation for several trips during a power failure.
Custom Color
Custom color powder coat is also available.
Telecab Specifications
Applications
Residential, indoors
Motor/pump
24 VDC, 3 hp (2.1 kW) gear type
Standard Capacity
500 lb (227 kg)
Range of incline
20˚ to 40˚
Maximum travel distance
23' (7 m) with 2 stops
Nominal speed
20 ft/min (0.10 m/s)
Minimum floor cutout
36" x 60 ½" (914 mm x 1537 mm)
Minimum overhead required
96" (2438 mm) to provide a minimum of 6" clearance below the ceiling, 92" (2337 mm) requires a locally approved variance
Drive
2:1 roller chain hydraulic
Power supply required
110 VAC, 20 A, 60 Hz, single phase
Savaria Link
Optional. Learn more.
Warranty
A 36-month warranty against defective parts is included through your local dealer.*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Telecab Gallery
See real world Telecab installs

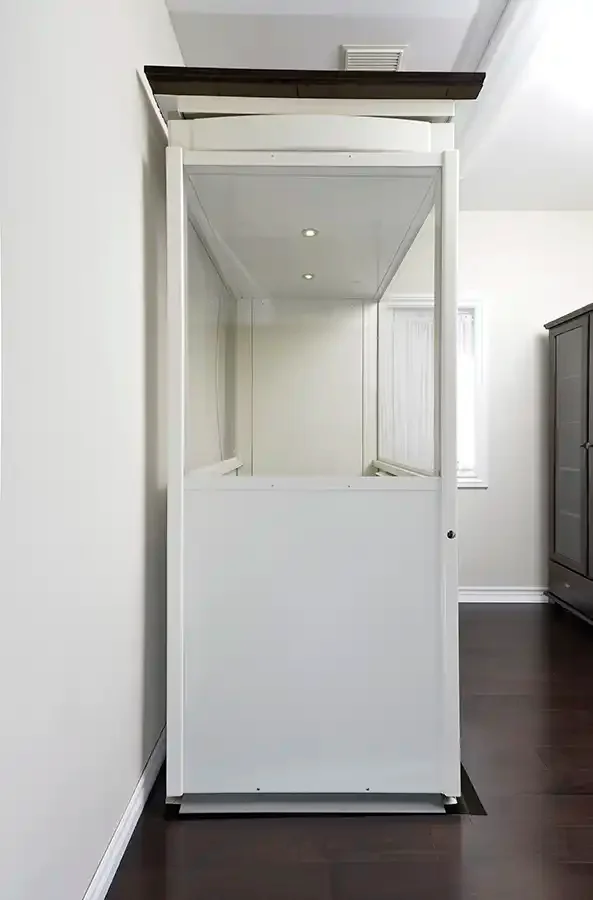

The Telecab through-floor lift features an enclosed cab with window panels and carries up to 500lb.

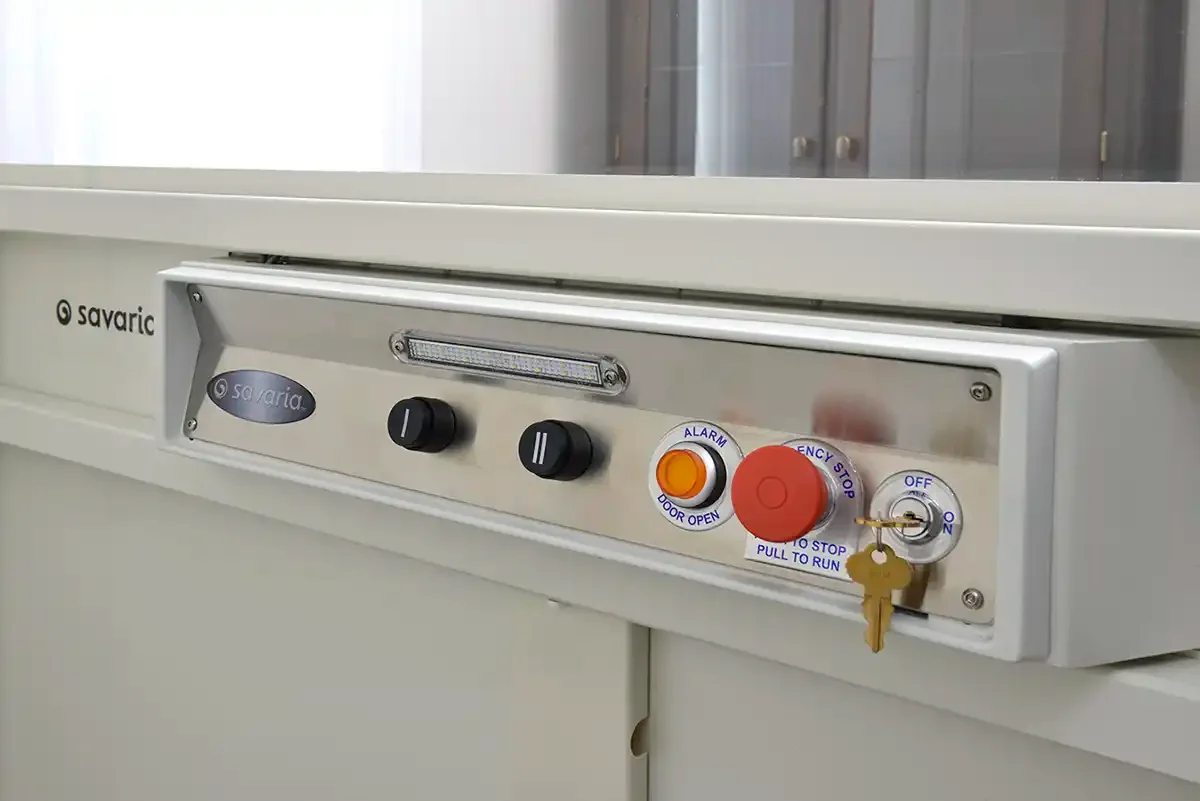

The control panel onboard the Telecab through-floor lift uses constant pressure buttons, meaning that you press-to-run the lift.

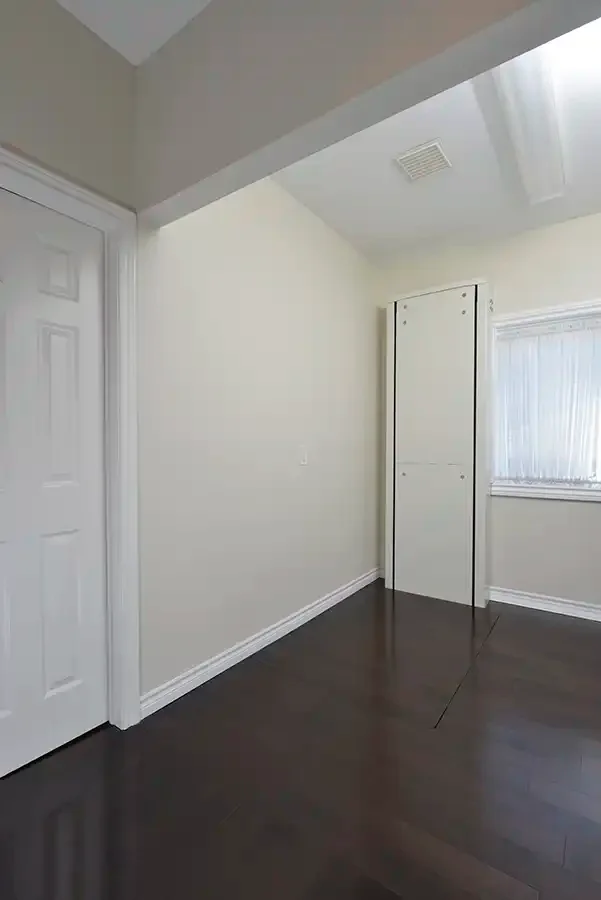

The lift has disappeared! When the Telecab through-floor lift is at the lower landing, the secure floor plug is in place on the top level.
Explore other Savaria through-floor lift models

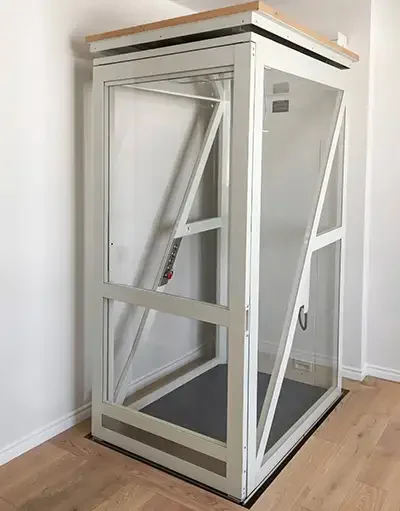

Savaria offers three models of through-the-floor lifts for home use. If you need a higher capacity, see the Telecab 17. If you don’t need to accommodate a wheelchair, see the Luma lift.
How to choose a through-floor lift
Learn more about how to choose the best through-floor lift, including how much they cost, the site preparation needs, how long the installation process takes and other considerations with our home accessibility ultimate guide section.
