Savaria Vuelift Octagonal Home Elevator
Panoramic, prismatic luxury makes a stunning statement
The Vuelift Octagonal elevator is gorgeously unique with its eight-sided design. Available in glass, or acrylic, this model is a statement maker, backed by a reliable and quiet winding drum drive. Spacious inside, but remarkably space-saving in its design, the Vuelift Octagonal fits beautifully inside wraparound staircases. It offers an 840– 950 lb capacity with 12-15 square feet of interior space depending on the choice of three models.
Vuelift Octagonal in Three Models
It’s an art to bend acrylic or glass in beautiful angles to create the faceted gem effects offered in the Vuelift Octagonal. It’s just one reason why luxury homeowners, builders and architects choose it. From traditional homes to ultra-modern residences, Vuelift Octagonal fits in, while offering a focal point in and of itself. The Glass+ model offers a clear opening of 33” making it well-suited for wheelchair users.
Octagonal Acrylic
Featuring an clear acrylic cab and integrated hoistway, this model delivers beautiful clarity with UV-resistant, structurally strong acrylic, at a lower cost than all-glass. This model has an option to mount the controller in the header area eliminating the need to locate it in your utility room.
Octagonal Glass
This all-glass cab and integrated hoistway sparkles with low-iron silica glass that eliminates any green hue. The measurements with the Octagonal Glass and Acrylic vary only slightly with minor differences inside the cab.
Octagonal+ Glass
The largest Vuelift model, the Octagonal+ Glass is wheelchair accessible (meets ADA) with a clear door opening of 33”. It features a 15 square foot cab and 950 lb capacity.
Measurement Comparison
| Specification | Octagonal Acrylic | Octagonal Glass | Octagonal+ Glass | |
|---|---|---|---|---|
| 1 | Overhead required | 108", optionally 104" or 96" (based on cab height chosen) | 108", optionally 104" or 98" (based on cab height chosen) | 108", optionally 104" or 98" (based on cab height chosen) |
| 2 | Floor cut-out required | 50" square + room for trim rings (approx. 5" additional) | 50" square + room for trim rings (approx. 5" additional) | 56 ⅜" square + room for trim rings (approx. 5" additional) |
| 3 | Clear gate opening | 26" (+/- ½") | 26" (+/- ½") | 33" (+/- ½") |
| 4 | Minimum distance between landings | 93 ½" | 93 ½" | 93 ½" |
| 5 | Interior cab size | 44" × 42 ⅛" | 42 ¾" × 42 ¼" | 45 ½" × 49 ⅜" |
| 6 | Cab height | 84", optionally 80", or 76 ½" (short cab) | 84", optionally 80", or 76 ½" (short cab) | 84", optionally 80", or 76 ½" (short cab) |
| 7 | Cab floor area | 12 sq. ft. | 12 sq. ft. | 15 sq. ft. |
| 8 | Floor allowance | Up to ¾" for owner-supplied flooring | Up to ¾" for owner-supplied flooring | Up to ¾" for owner-supplied flooring |
Vuelift Octagonal Specifications
Applications
Residential, indoors
Motor
3.5KW (5HP)
Standard capacity
840 lb for Acrylic, 950 lb for Glass and Glass+
Maximum travel distance
50 ft (15.2 m), 55 ft (16.7 m) with variance, up to 6 stops
Nominal speed
32 fpm for Acrylic, 40 fpm for Glass and Glass+
Pit depth
4"–12" (102–305 mm)
Power / Lighting supply
230V/1PH/50–60Hz (30 amps) plus 120V/1PH/50–60Hz (15 amps) for lighting
One touch Alert
Optional. Learn more.
Savaria Link
Optional. Learn more.
Warranty coverage
All Vuelift models are covered by a 3-year warranty against parts defects.*
Entry/exit configurations available
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Vuelift Octagonal Gallery
See how others have installed the Vuelift Octagonal elevator

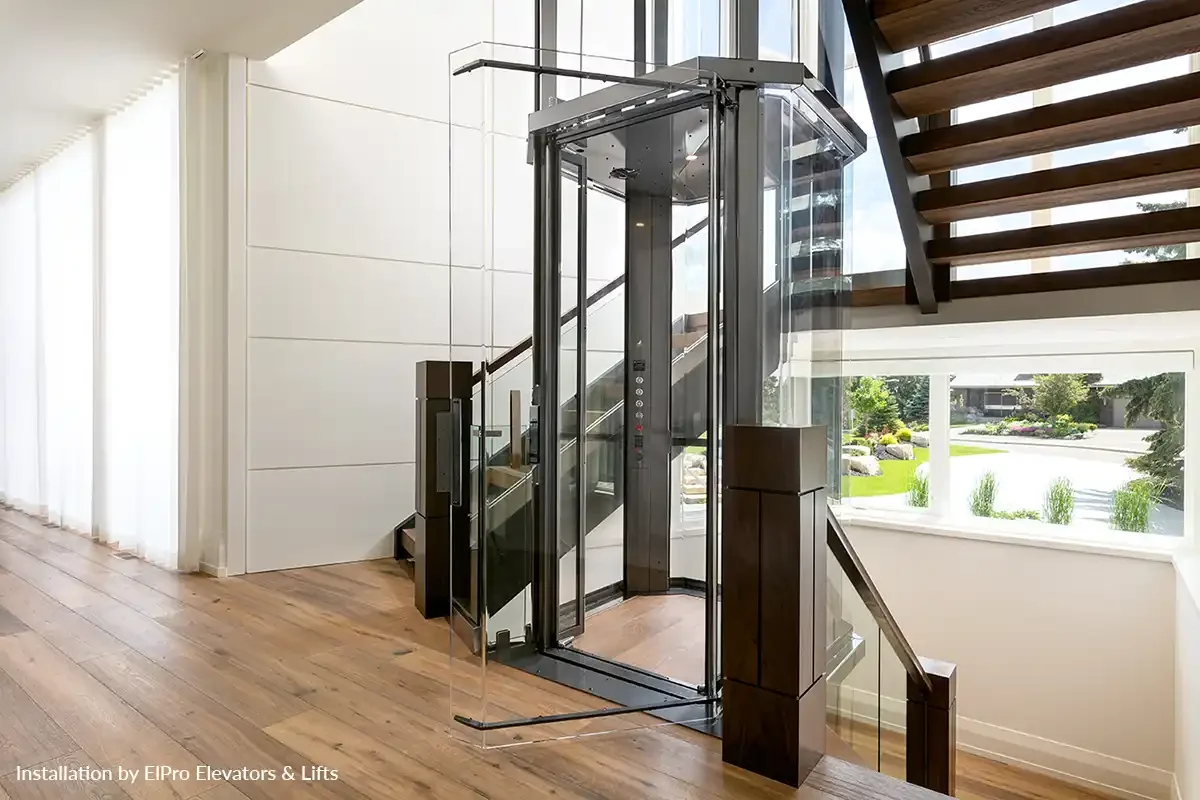

Installed by ElPro Elevators & Lifts, thie Vuelift Octagonal is a stunning addition to this new home in Calgary. Photo by Joel Klassen.
When you need to stock the wine cellar, the Vuelift takes you there! This Octagonal+ unit was installed by Florida Lifts and features our largest cab size.

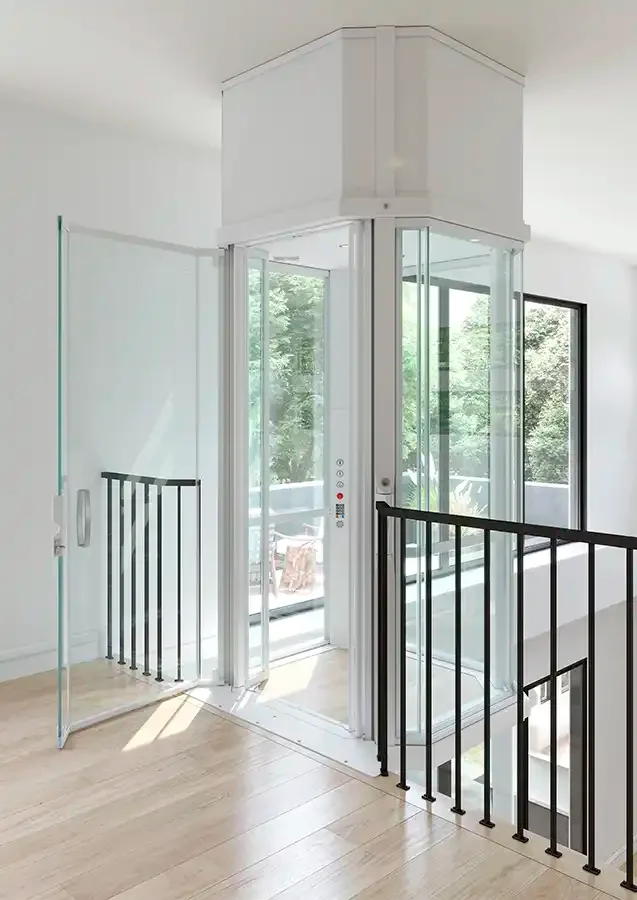

The Vuelift Octagonal in white framing with a white header uses the balcony attachment for this installation.

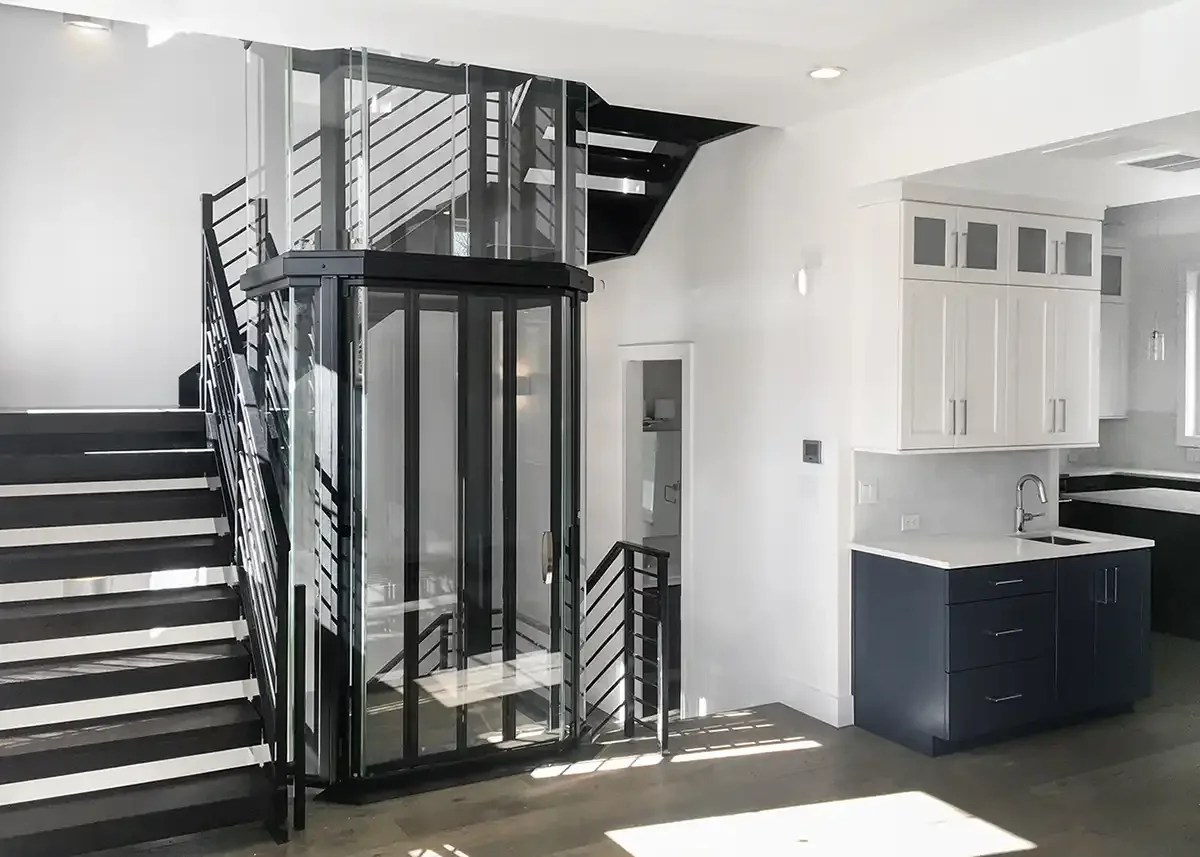

Townhouses often have 3 or 4 stories. At this Fort Collins home in Colorado, every level is served by this stunning Vuelift Octagonal.

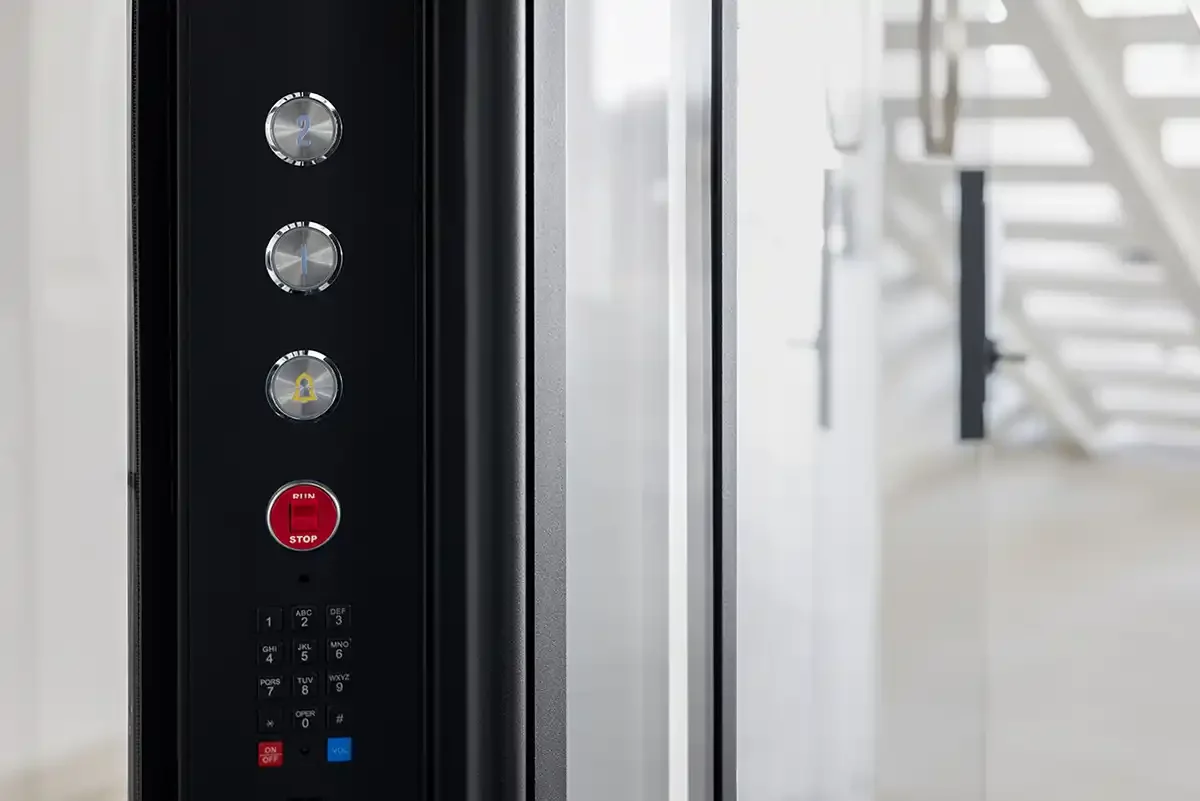

The cab operation panel is kept simple and slim inside the Vuelift elevator.

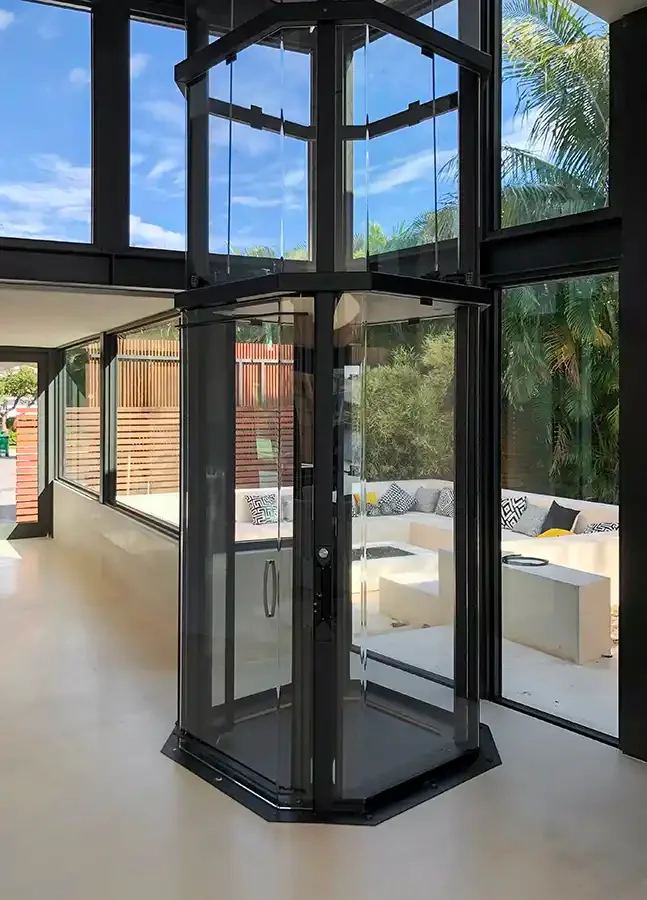

Blue sky, patio, palms and a beautiful Vuelift Octagonal are perhaps the perfect retirement combination. Installed by Florida Lifts.

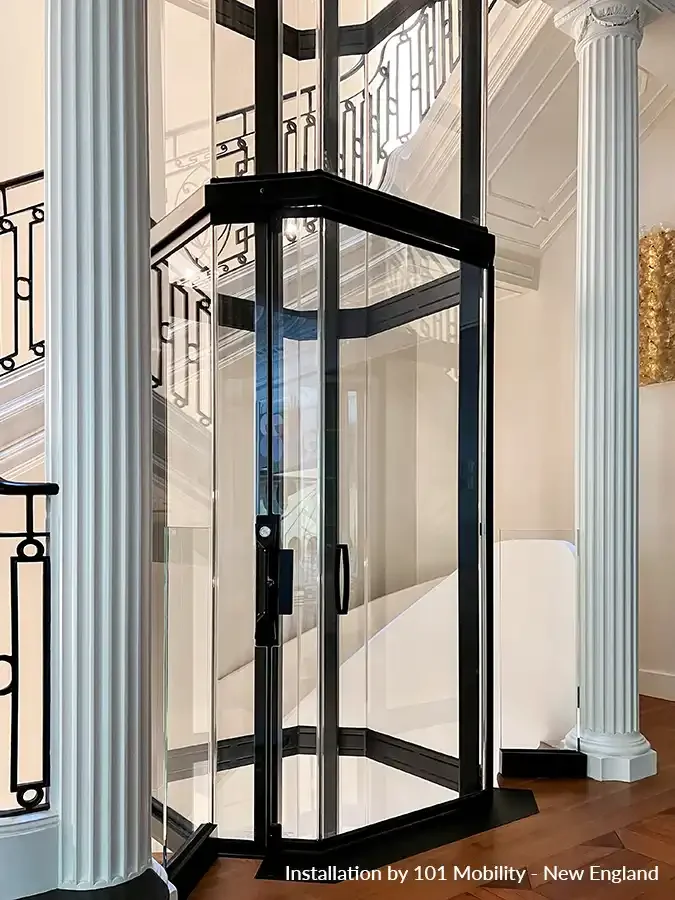

A stately, traditional home is juxtaposed beautifully with the modern Vuelift Octagonal elevator. Installed by 101 Mobility New England.

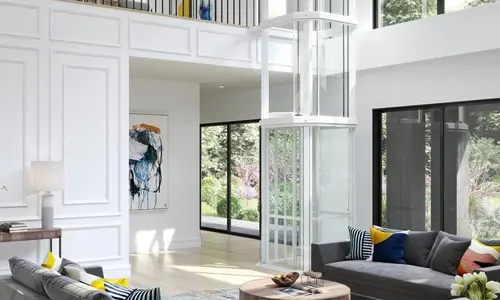

The modern design of the Vuelift complements the clean, white interior of this home beautifully.
Learn more

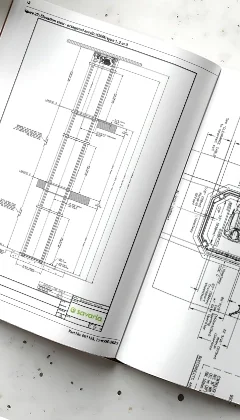

Consult the Vuelift planning guide for more information about measurements and site preparation.
Which Vuelift is right for you?
Download the Vuelift Model Comparison Chart
