V-1504 Lux  Vertical Platform Lift

  • Enclosed lift, beautifully framed in stainless steel with glass inserts for luxury commercial or residential projects
  • Carries a wheelchair and passenger up to 4 stops over 23' of travel; 750 lb capacity
  • For indoor or outdoor use; doors or gates available with inserts; optional domed top
  • ADA-compliant or custom platform sizes; same-side, straight-through or 90º entry and exit
  • 20 ft/min hydraulic drive system operated by constant pressure controls; no machine room needed
  • See V-1504 Prestige frameless glass lift for a 2-stop unenclosed option for indoor use
find your local Savaria dealer

The nuts and bolts

Features

The ultimate in design: This luxury lift will make a distinct addition to any commercial lobby.
Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
Other standard features: 36" x 54" standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail, automatic battery recharging system.
Standard finishes: Framed in 304 stainless steel no. 4 with tempered or laminated glass inserts, this lift is a beautiful complement for lobby areas, offices and public buildings.

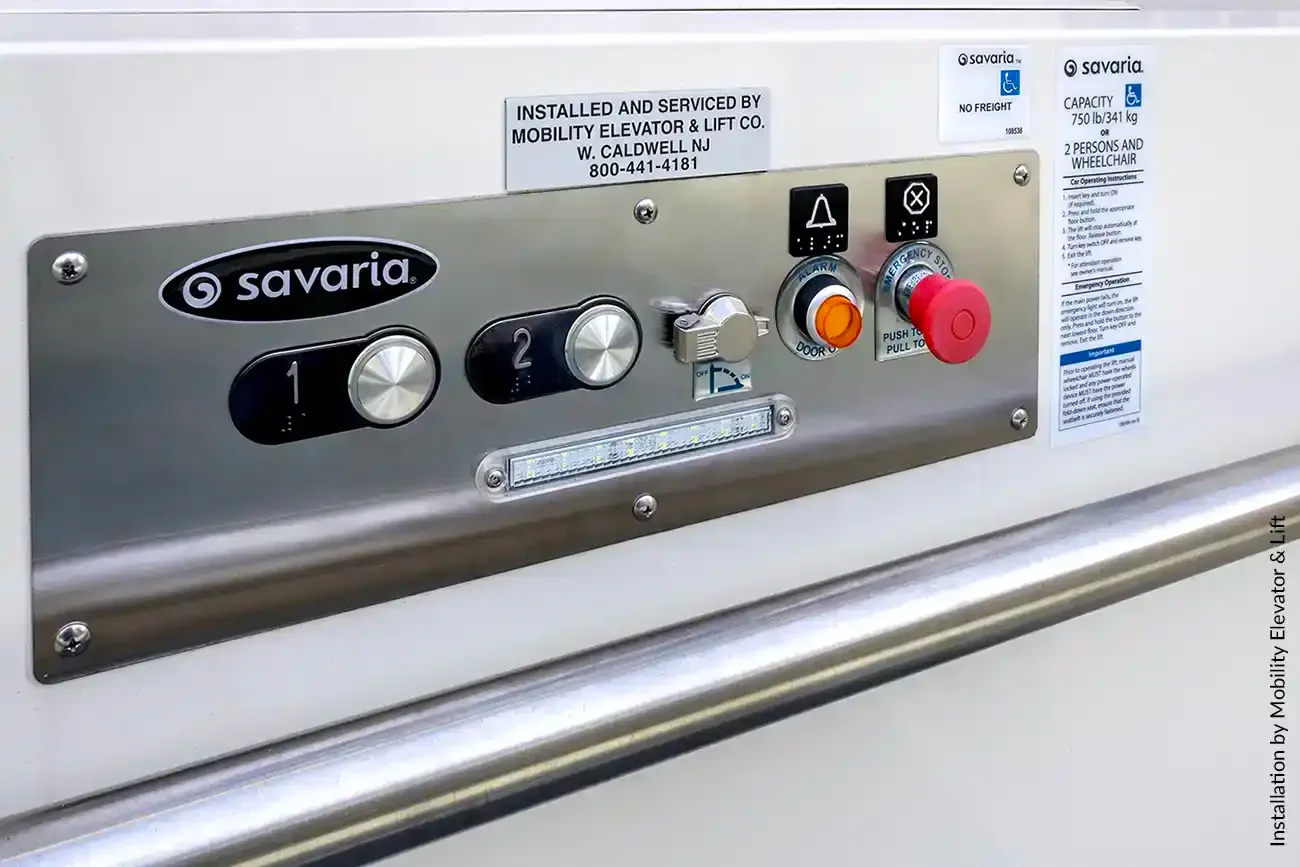

Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 42 1/8" (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Warranty: 36 months parts. Please see complete details here.

Options

Optional configurations: Type 1, 2, 3 and 4
Platform sizes:
W36" x L48" (914 mm x 1219 mm), Type 1, 2, 3, 4
W36" x L54" (914 mm x 1371 mm), Type 1, 2, 3, 4
W36" x L60" (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42" x 60" (1067 mm x 1524 mm)
Other options: Up to 4 stops, commercial package including alarm, keyless operation, keyless hall call (subject to type of application), steel ULC fire rated ProDoors, power gate and door operators, acrylic inserts for gate, Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone.





Specifications

Applications: Residential, commercial, indoors, outdoors
Standard capacity: 750 lb (340 kg)
Maximum travel distance: 23' (7 m), subject to local code, in some areas 12' to 14' (3.65 to 4.26 m)
Nominal speed: 20 ft/min (0.1 m/s)
Drive/motor: 2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor
Minimum pit: 3" (76.2 mm)
Power supply: 120 VAC, 20 amp, single phase, 60 Hz

Documents

    Gallery of installations

    Loading Gallery
    Savaria V-1504 Lux Vertical Platform Lift 1Thumbnail for Savaria V-1504 Lux Vertical Platform Lift 1
    V-1504 Lux vertical platform lift

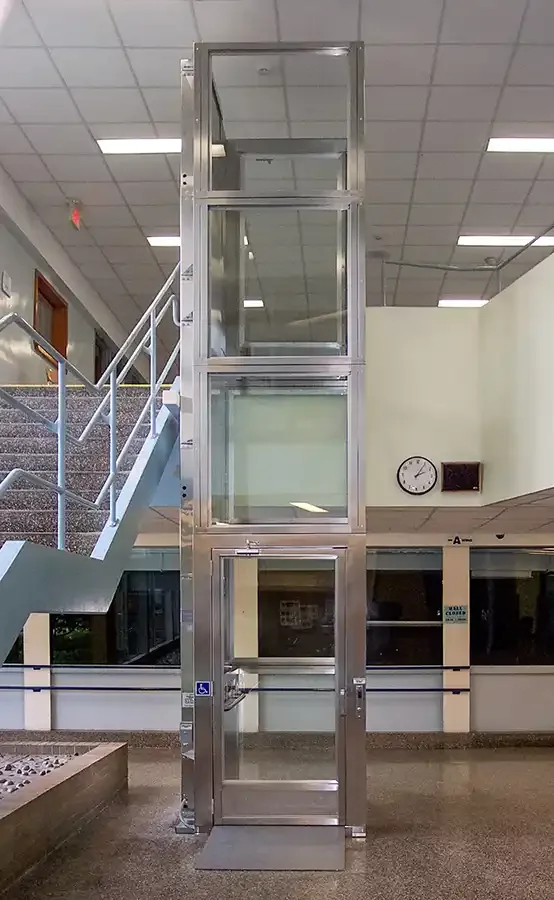

    Multi-level foyer with a 3-stop V-1504 Lux providing elegant accessibility to all levels

    Savaria V-1504 Lux Vertical Platform Lift 2Thumbnail for Savaria V-1504 Lux Vertical Platform Lift 2
    V-1504 Lux vertical platform lift

    V-1504 Lux with a stainless steel cab and frame with glass enclosure and door inserts

    Savaria V-1504 Lux Vertical Platform Lift 3Thumbnail for Savaria V-1504 Lux Vertical Platform Lift 3
    V-1504 Lux vertical platform lift

    View from the top of a V-1504 Lux showing detail of the stainless steel drive tower

    Savaria V-1504 Lux Vertical Platform Lift 4Thumbnail for Savaria V-1504 Lux Vertical Platform Lift 4
    V-1504 Lux vertical platform lift

    Full view of a V-1504 Lux showing the attractive stainless steel frame and glass inserts
