V-1504 Enclosure   Vertical Platform Lift

  • Fully enclosed lift; carries a wheelchair and passenger up to 4 stops over 23' of travel (code permitting)
  • 20 ft/min hydraulic drive system operated by constant pressure controls; no machine room needed
  • Configure enclosure with aluminum, acrylic or glass inserts; doors and gates available with inserts; optional domed, ventilated roof; an array of optional paint colors
  • ADA-compliant or custom platform sizes; same-side, straight-through or 90º entry and exit
  • For residential or commercial access; 750 lb capacity
  • Ideal for outdoor applications, or for indoor use; also available without enclosure and in luxury glass models
find your local Savaria dealer

The nuts and bolts

Features

Flexible enclosure design: Can be built to suit virtually any home or commercial project. Enclosed with aluminum and acrylic inserts and top dome with active ventilation system; corrosion-resistant steel components, make it ideal for outdoor applications.
Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
Other standard features: 36" x 54" standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail.
Standard finish: Beige powder-coat paint.

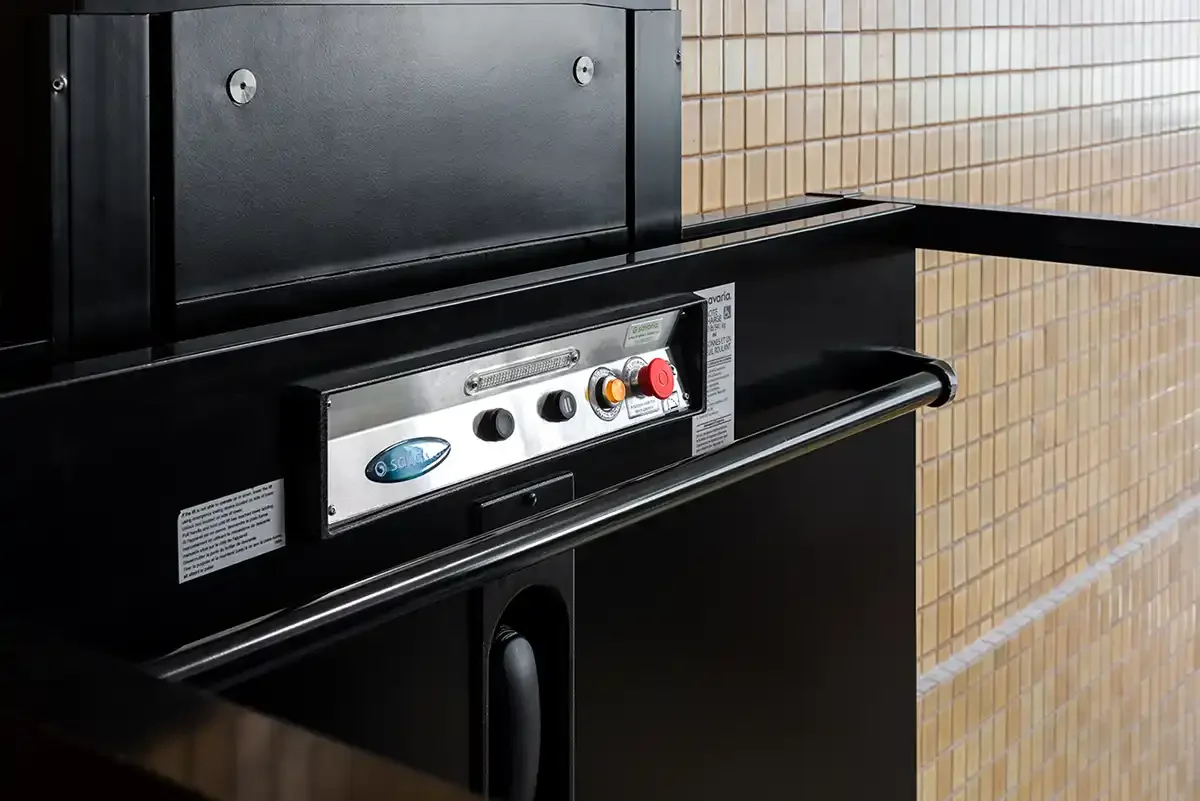

Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 42 1/8" (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Warranty: 36 months parts. Please see complete details here.

Options

Optional configurations: Type 1, 2, 3 and 4
Platform sizes:
W36" x L48" (914 mm x 1219 mm), Type 1, 2, 3, 4
W36" x L54" (914 mm x 1371 mm), Type 1, 2, 3, 4
W36" x L60" (914mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42" x 60" (1067 mm x 1524 mm)
Enclosure options: Can be ordered with tempered or laminated glass panels, or acrylic panels. Gates and door can be motorized.
Optional finishes: A wide array of powder-coat colors in gloss, semi gloss or textured finish are available, including custom color (see color chart).
Other options: Up to 4 stops, commercial package including alarm, keyless operation, keyed or keyless hall call (subject to type of application), low profile aluminum doors, ProDoor (ULC fire-rated) for 3-sided applications, power gate and door operators, tempered glass inserts for doors, acrylic inserts for gate, GAL or Savaria WR-500 weather resistant lock, folding seat, 60 mm buttons, ADA hands-free phone, battery backup. Also available for residential applications, the Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency.

Specifications

Applications: Residential, commercial, indoors, outdoors
Standard capacity: 750 lb (340 kg)
Maximum travel distance: 23' (7 m), subject to local code; commercial use in the USA limited to 12' to 14' (3.65 to 4.26 m) depending on the year of code enforced
Nominal speed: 20 ft/min (0.1 m/s)
Drive/motor: 2:1 chain hydraulic, 3 hp (2.2 kW), gear-type motor
Minimum pit: 3" (76.2 mm)
Power supply: 120 VAC, 20 amp, single phase, 60 Hz

Documents

    Gallery of installations

    Loading Gallery
    Savaria V-1504 Enclosed Vertical Platform Lift 1Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 1
    V-1504 enclosed vertical platform lift

    Black framed lift with clear acrylic enclosure and door inserts in an urban office space

    Savaria V-1504 Enclosed Vertical Platform Lift 2Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 2
    V-1504 enclosed vertical platform lift

    View of a V-1504 enclosure tower with black frame and clear acrylic inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 3Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 3
    V-1504 enclosed vertical platform lift

    V-1504 with black frame and enclosure inserts, and aluminum framed door

    Savaria V-1504 Enclosed Vertical Platform Lift 4Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 4
    V-1504 enclosed vertical platform lift

    Upper level of a platform lift with black frame and enclosure inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 6Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 6
    V-1504 enclosed vertical platform lift

    V-1504 in a modern office space with diamond plate stainless steel enclosure inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 7Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 7
    V-1504 enclosed vertical platform lift

    Grey framed V-1504 lift with clear enclosure inserts in a modern 2-story foyer

    Savaria V-1504 Enclosed Vertical Platform Lift 8Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 8
    V-1504 enclosed vertical platform lift

    Cab detail of a platform lift at the upper level with grey finish and clear gate insert

    Savaria V-1504 Enclosed Vertical Platform Lift 9Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 9
    V-1504 enclosed vertical platform lift

    Upper level of a deck with a brown framed V-1504 with clear enclosure and gate inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 10Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 10
    V-1504 enclosed vertical platform lift

    Lower level of a deck showing a V-1504 with clear enclosure panels framed in brown

    Savaria V-1504 Enclosed Vertical Platform Lift 11Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 11
    V-1504 enclosed vertical platform lift

    V-1504 wheelchair lift with clear enclosure panels in an office concourse

    Savaria V-1504 Enclosed Vertical Platform Lift 12Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 12
    V-1504 enclosed vertical platform lift

    Standard beige V-1504 lift with clear enclosure and door panels in an open office foyer

    Savaria V-1504 Enclosed Vertical Platform Lift 13Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 13
    V-1504 enclosed vertical platform lift

    V-1504 shown from the upper level; beige frame with clear enclosure and gate inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 14Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 14
    V-1504 enclosed vertical platform lift

    Exterior wheelchair lift with beige frame and clear enclosure panel and door inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 15Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 15
    V-1504 enclosed vertical platform lift

    V-1504 in a custom enclosure inspired by the location of the lift in an aerospace museum

    Savaria V-1504 Enclosed Vertical Platform Lift 17Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 17
    V-1504 enclosed vertical platform lift

    Wheelchair lift at an amusement park with bronze acrylic enclosure inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 18Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 18
    V-1504 enclosed vertical platform lift

    Upper level of a lift at an amusement park showing bronze acrylic door inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 19Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 19
    V-1504 enclosed vertical platform lift

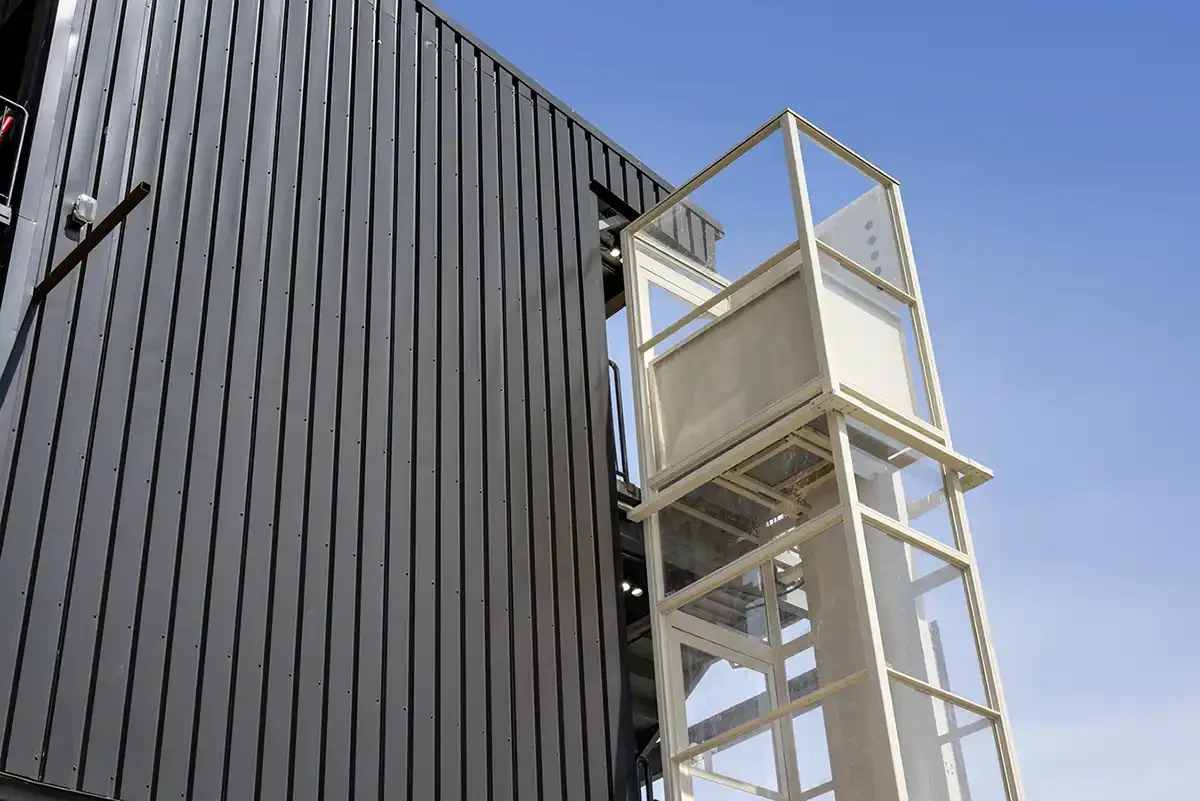

    Lift with 3-sided enclosure with clear inserts, attached to the exterior of a building

    Savaria V-1504 Enclosed Vertical Platform Lift 20Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 20
    V-1504 enclosed vertical platform lift

    Exterior 3-sided lift with clear panel and lower door inserts, and solid upper door

    Savaria V-1504 Enclosed Vertical Platform Lift 21Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 21
    V-1504 enclosed vertical platform lift

    Wheelchair lift at a school, showing clear panel and door inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 22Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 22
    V-1504 enclosed vertical platform lift

    View of a wheelchair lift with clear enclosure panels and upper door inserts

    Savaria V-1504 Enclosed Vertical Platform Lift 23Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 23
    V-1504 enclosed vertical platform lift

    Wheelchair lift with aluminum framed door with clear inserts installed at a stadium

    Savaria V-1504 Enclosed Vertical Platform Lift 24Thumbnail for Savaria V-1504 Enclosed Vertical Platform Lift 24
    V-1504 enclosed vertical platform lift

    Medical office building with lift featuring bronze acrylic enclosure and door inserts
