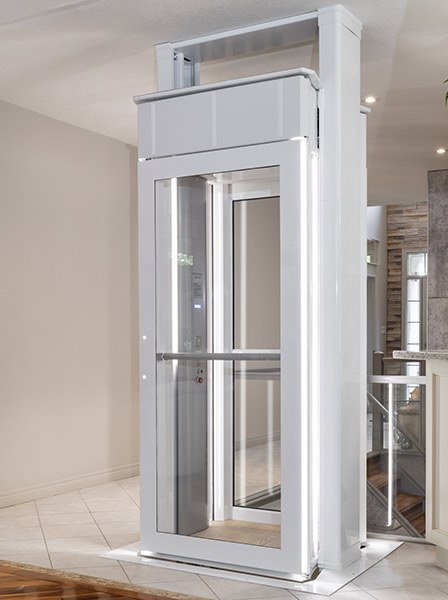

Luma Lift Through-floor lift
Elegant Mobility Lives Here
Looking for a way to skip the stairs, but don’t want a stairlift? The Savaria Luma lift is beautifully designed two-stop lift that travels through a simple floor cut-out so no shaftway is needed. The self-supporting rail system makes the Luma lift incredibly flexible for placement – you don’t need a support wall. Its space-saving design only requires a 38" by 47" footprint.
Designed, engineered and built by Savaria, a global leader in accessibility, you can have peace-of-mind that the Luma lift meets all safety codes and is manufactured to the highest standards of quality and reliability.
The Luma launches Spring 2025.
Get connected with your authorized Savaria dealer to learn more about Luma.
Luma Lift Features
Hover over the green dots to explore components
1
Self-supporting rails with hidden drive rope system and no unsightly cables
The lift travels smoothly on the rail system, allowing it to be placed anywhere in the room.
1. Self-supporting rails with hidden drive rope system and no unsightly cables
2. Ceiling trim and car top cap
Installation requires a simple floor cut-out, that is trimmed with our included kit. The top landing is capped off as the lift descends.
3. Ventilation fan
For in-cabin air flow and comfort
4. Full-sized clear panelled cabin
Luxurious, crystal clear panels give the cabin a spacious feel
5. LCD status display
Advises the status of the lift, including any issues
6. Easy operation
The illuminated push-to-run buttons are easy to use. The frame includes a built-in call button.
7. Full-sized door with handrail
With full acrylic panels, door interlock, and a sturdy handrail, the door maintains your safety at all times.
8. Recessed lighting
An elegant system in the door and cab panels adds beauty and interior visibility for the cabin.
9. Non-skid floor & sloped entrance
Aesthetically pleasing non-skid material is used on the cabin floor. There is no need for a ramp or pit with the built-in sloped entrance eliminating tripping hazards.
10. Remote controls
Two radio-frequency remote controls are included to allow you to call the lift remotely.

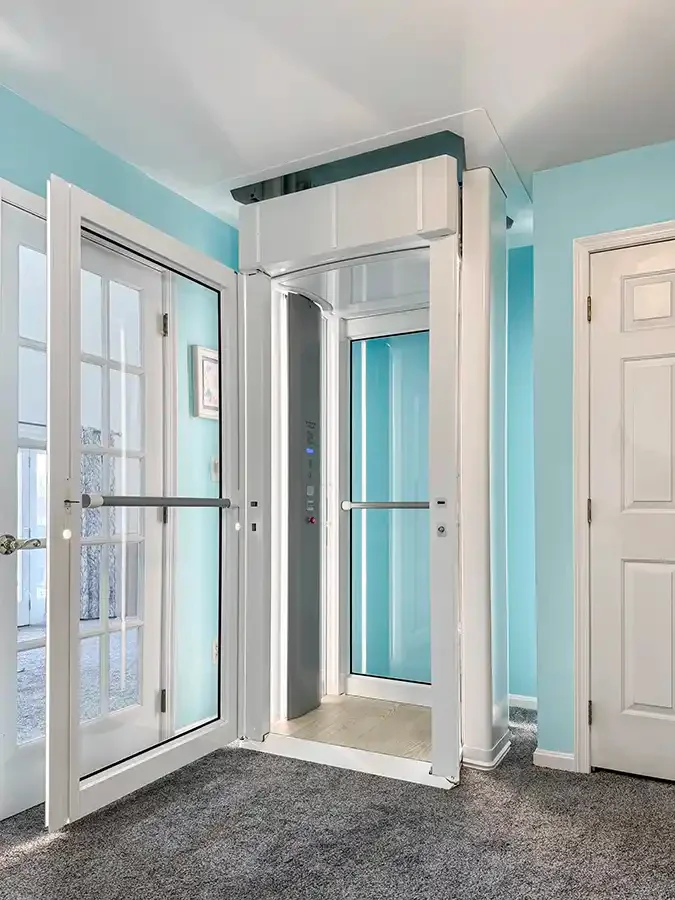

11. Optional two-door model
Add a second door for straight-through access. A great option to accommodate your floorplan needs, or for easier access with a walker or rollator.
1
2
3
4
5
6
7
8
9
10
11
Safety
At Savaria, we take safety seriously. It’s one of our company values. That’s why the Savaria Luma lift was built to meet all safety code standards in every market where it’s sold. The Luma has an array of safety features including:
- Emergency stop and alarm buttons
- Sensors to stop the lift in either direction, if it encounters any obstruction
- Overspeed arrestor system, ensures the lift never travels to exceed the appropriate speed
- Door interlock keeps the door locked when the lift is in use
Additional Included Safety
One Touch Alert
A simple push button on the operating panel of the lift places a call to a pre-programmed emergency contact list. This provides easy two-way communications. This feature requires an owner-supplied prepaid nano SIM card installed by the local dealer.
Savaria Link Wi-Fi Monitoring
Using your household wi-fi system, your Luma lift operation can be monitored by the installing dealer remotely. The dealer is notified of major faults allowing for faster troubleshooting if needed.
Installation
The Savaria Luma lift is usually delivered to your home mostly pre-assembled by your dealer. A typical installation will take 1 to 2 days including time to make sure you are comfortable with all the features and operation of your lift.
Specifications
Capacity
400 lb (181 kg)
Cabin size
29.1"W x 27.8"L* x 78.7"H
(739 mm x 706 mm x 2000 mm)
(739 mm x 706 mm x 2000 mm)
Floor cut-out
46.7"W x 37.6"L (956 mm x 1186 mm)
Maximum travel
13.7' (414 cm), 2 stops
*For 2-door option, cab length is 25.6" (651 mm).
Nominal speed
15 ft/min (0.08 m/s)
Drive system
Winding drum, operated with
constant pressure buttons
constant pressure buttons
Power supply
110 - 240 VAC, 5 A (max), 50/60 Hz, single phase
Warranty
3 years on parts
Cab configurations availability
Process
STEP 1
We’ll put you in touch with the closest authorized Savaria Luma lift dealer.
STEP 2
Your Savaria dealer will do a site visit and discuss the best placement for your Luma lift. The dealer will provide you a quotation for the lift including the installation.
STEP 3
A general contractor (via the homeowner, or Savaria dealer) typically prepares the site including floor/ceiling reinforcement. If an electrical outlet is required to be closer to the lift, an electrician will need to perform this work. The Savaria dealer will then install the lift, which typically takes 1 to 2 days.
STEP 4
The dealer will show you how to use your Luma lift, answer any questions you have and will tidy all site work in your home.
About Savaria
Better Mobility for Life
Founded in 1979, Savaria is now a global leader in accessibility with over 1 million square feet of manufacturing facilities around the world. With our vision of empowering mobility for life, Savaria has designed and built thousands of home elevators, wheelchair lifts, commercial accessibility elevators, and stairlifts. We also make patient care products such as ceiling lifts, medical beds, and therapeutic surfaces. With over 2500 employees, we are dedicated to a world with fewer barriers no matter where you are.
Ready for elegant mobility in your home?
Get connected with your authorized Savaria dealer to learn more about Luma by filling the form. Or call us at 1.855.728.2742.
