Optional configurations: Type 1, 2, 3, 4 and 5
Cab sizes:
W36'' x L48'' x H80'' (914 mm x 1219 mm x 2032 mm), Type 1, 2, 3, 4, 5
W36'' x L54'' x H80'' (914 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
W36'' x L60'' x H80'' (914 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
W40" x L54" x 80" (1016 mm x 1372 mm x 2032mm), Type 1, 2, 3, 4, 5
Custom cab sizes also available
Infinity HD
W48'' x L60'' x H80'' (1219 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
Optional height: 84" (2133) or 96" (2438 mm)

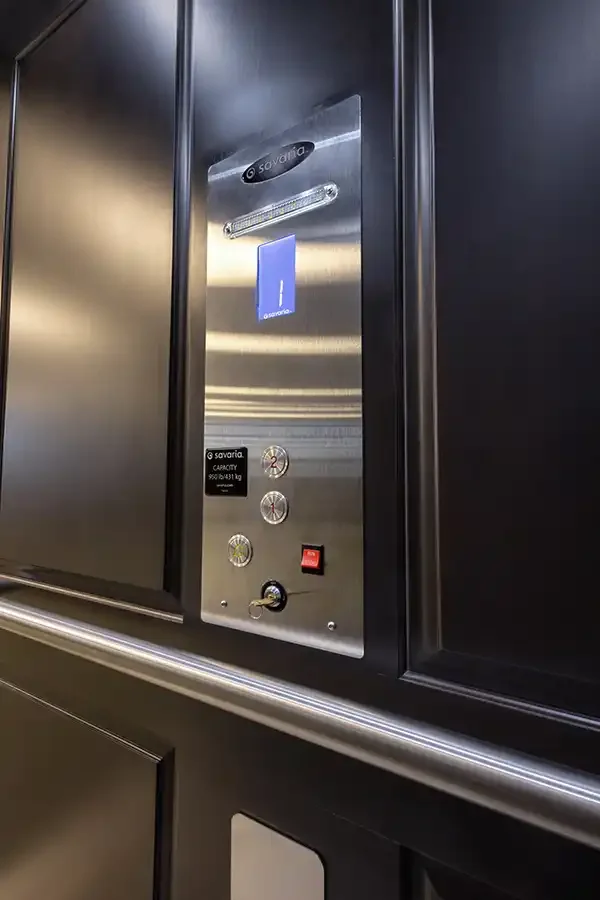

Optional cab finishes: Hardwood, unfinished veneer, luxury MDF, routed white MDF (see cab configurator)
Optional fixture finishes: Brass #4 finish, stainless steel, blackened stainless steel or architectural white (handrail, cab operating panel, hall call stations). Hall call stations available in rectangular or oval design.

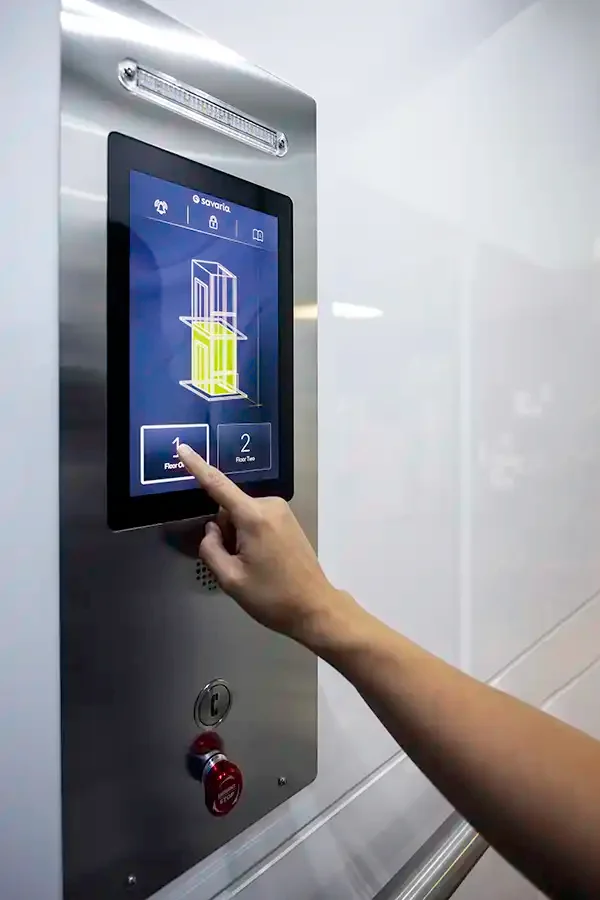

Optional touchscreen COP: large touchscreen to operate functions of elevator, customizable for landing names (at time of order), swipe to change animated screen themes. Not available for concurrent landing configurations.

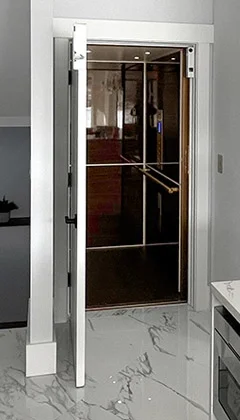

Optional Luxury Flush Door: Complete swing door solution that meets A. 17.1 code, solid 1¾” slab, substantial feeling door, incorporates concealed hinges, hidden Kronenburg interlock (exclusive to Savaria for North America), unique pockets to accommodate ½” drywall to create seamless look, in-frame emergency release accessible from interior of the cabin, low-profile pure white or paintable aluminum frame, with option to incorporate hall call and key switch into frame, standard size 36x80" with custom sizes up to 42" wide and 96" tall.
Doors and gate options: Bi-folding doors, Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts, Visi-fold gate anodized bronze with bronze acrylic, Clear-fold gate in clear anodized aluminum with clear acrylic inserts. Power gate and door operators. For the ultimate in convenience, add Savaria automatic slim doors (requires minimum 84" cab height).
Other options: Up to 6 stops, telephone cabinet, alpha-numeric button marking, two-exit opening, speed upgrade to 40 fpm subject to local code, buffer springs, keyed hall call stations.
Infinity Home Elevator
- Precision hydraulic drive system provides an exceptionally smooth, quiet ride
- Machine room required for this elevator
- Services up to 6 stops over a maximum travel distance of 50'
- Capacity up to 1000 lb or 1400 lb (Infinity HD model), code permitting
- Openings can be configured for same-side, straight-through or 90º entry and exit, depending on the layout of your home
- Customize cab interior, fixtures and doors here
- The choices are almost infinite, see more inspiration here
The nuts and bolts
High efficiency hydraulic drive system: The ultimate smooth and quiet ride.
Magnetic floor selection: Automatic leveling at each landing to ensure the elevator meets the floor precisely.
Submersible pump and motor: For quiet operation.
Variable speed pressure valve: Gradual acceleration and deceleration for gentle stops and starts.
Other standard features: Fully automatic operation, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, white ceiling with 4 LED pot lights, MDF or melamine interior walls in choice of colors.
Standard finishes: MDF or melamine (see cab configurator), clear or bronze anodized aluminum rectangular cab operating panel and hall call stations, double plywood floor, white ceiling.
Safety features: Battery operated (UPS) emergency lowering and lighting, emergency manual lowering from hydraulic tank, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator lights on hall stations, slack rope safety system.
Warranty: 36 months parts. Please see complete details here.
Applications: Residential, indoors
Standard capacity: 750 lb (340 kg), 950 lb (431kg), 1000 lb (453 kg)
Maximum travel distance: 50' (15.24 m)
Nominal speed: 36 ft/min (0.18 m/s)
Drive/motor: 1:2 cable hydraulic drive, 5 hp
Minimum pit: 8" (203 mm)
Minimum overhead clearance: 92" (2337 mm).
Power supply: 208 volts, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 30 amps
The Infinity may also be ordered in an HD (heavy duty) configuration with the same specifications as above, with the following differences:
Optional capacity: 1400 lb (635 kg)
Drive/motor: 1:2 cable hydraulic drive, 5 hp submersed
Minimum pit: 12" (305 mm)
Minimum overhead clearance: 92" (2337 mm) for standard 80" cab, 96" (2438 mm) for 84" cab, 108" (2743 mm) for 96" cab
Accessible version available here

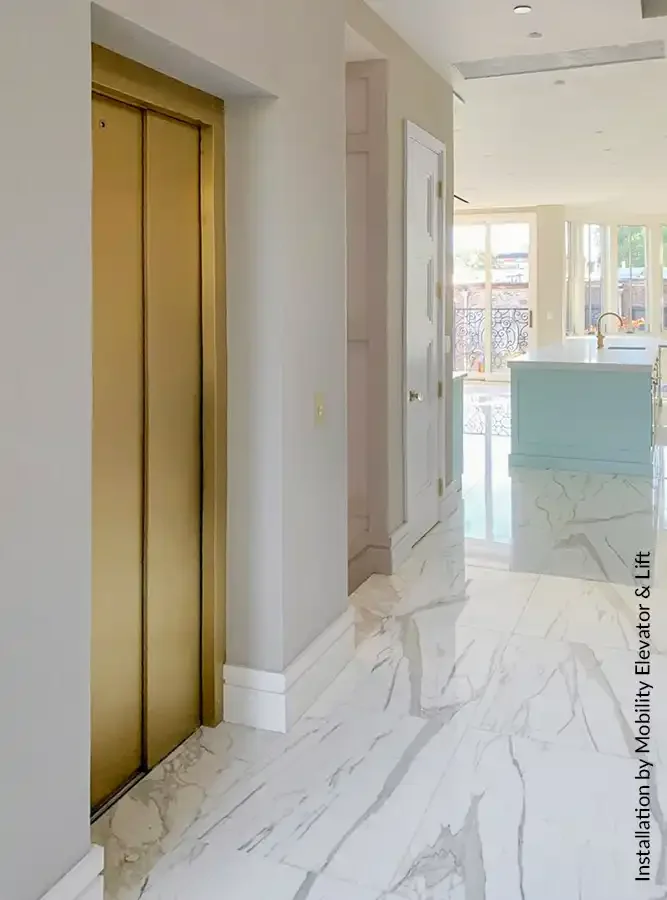

Gallery of installations
